FUNCTIONAL BLOCK DIAGRAMS

9.0
9.1

Bidirectional pins simplified block diagram

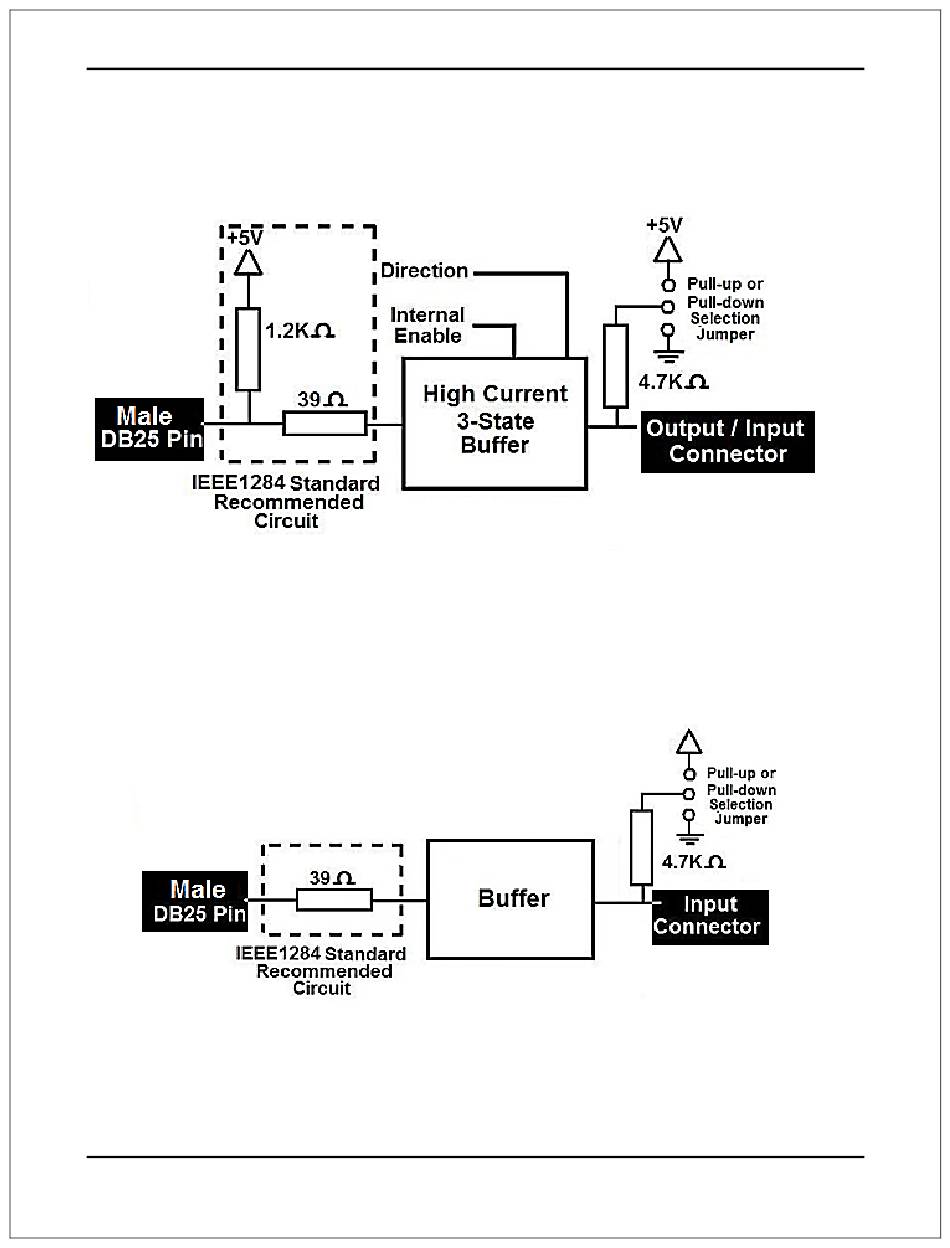

Fig. 1 Simplified functional block diagram for the 2-9 pins.
A Pull-up or Pull-down selection jumper allows selecting the configuration for the all
bidirectional pins (2-9) when they are set as inputs.
9.2

Dedicated Inputs simplified block diagram

Fig. 2 Simplified functional block diagram for the inputs.
A Pull-up or Pull-down selection jumper allows selecting the configuration for the all
dedicated inputs (pins 10, 11, 12, 13 and 15).
