C11G (Rev. 7.1) User Manual
7.5
Other connections.

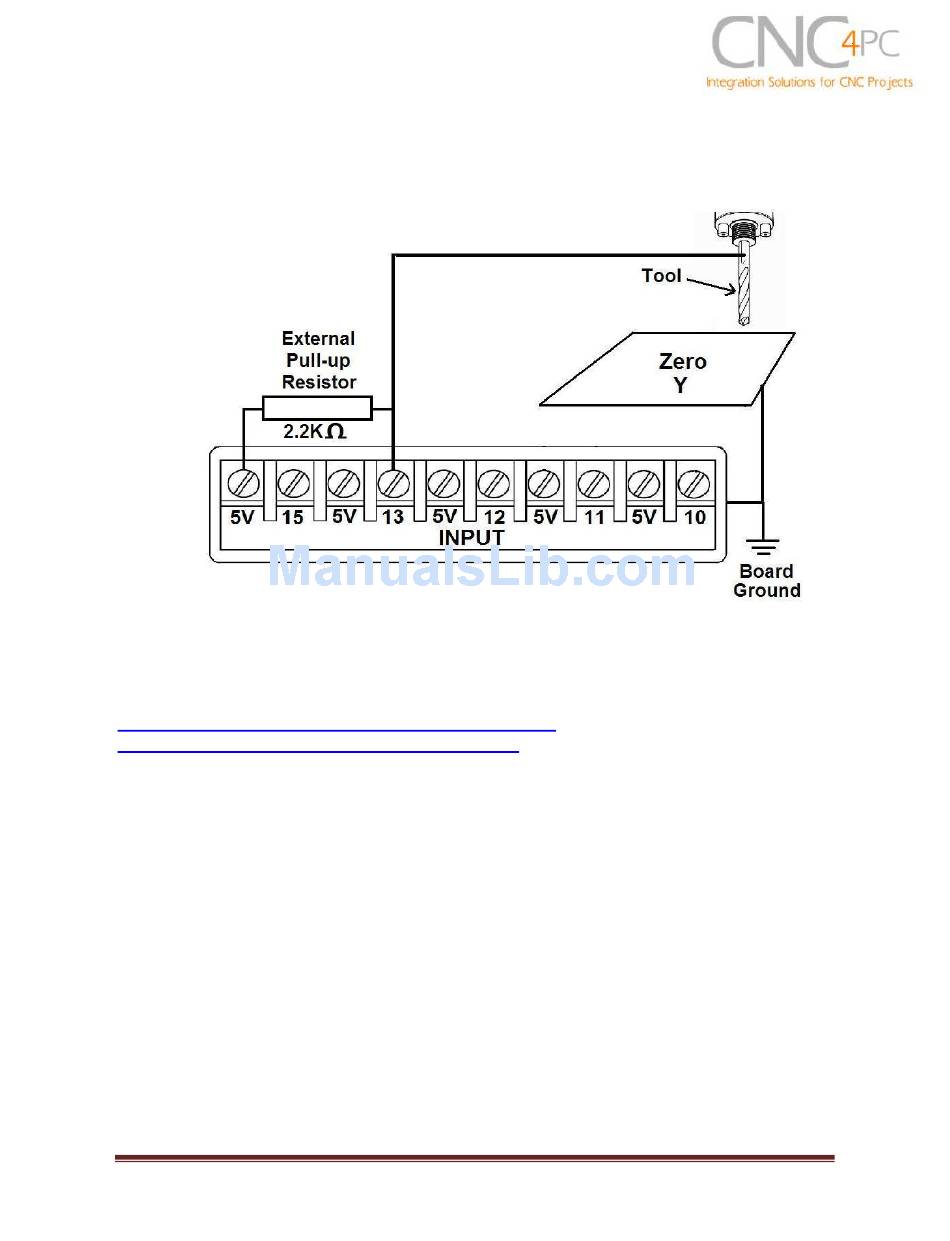

Fig. 13 Wiring diagram to do an "Auto Tool Zero"
Other wiring diagrams samples are shown in the next links.
http://cnc4pc.com/Tech_Docs/E_STOP_N_EN_Wiring.pdf
http://cnc4pc.com/Tech_Docs/E_STOP_N_SCHP.pdf
Revision: 28/01/2009
http://cnc4pc.com/TechDocs/C11GR7_1_User_Manual.pdf 15/19
