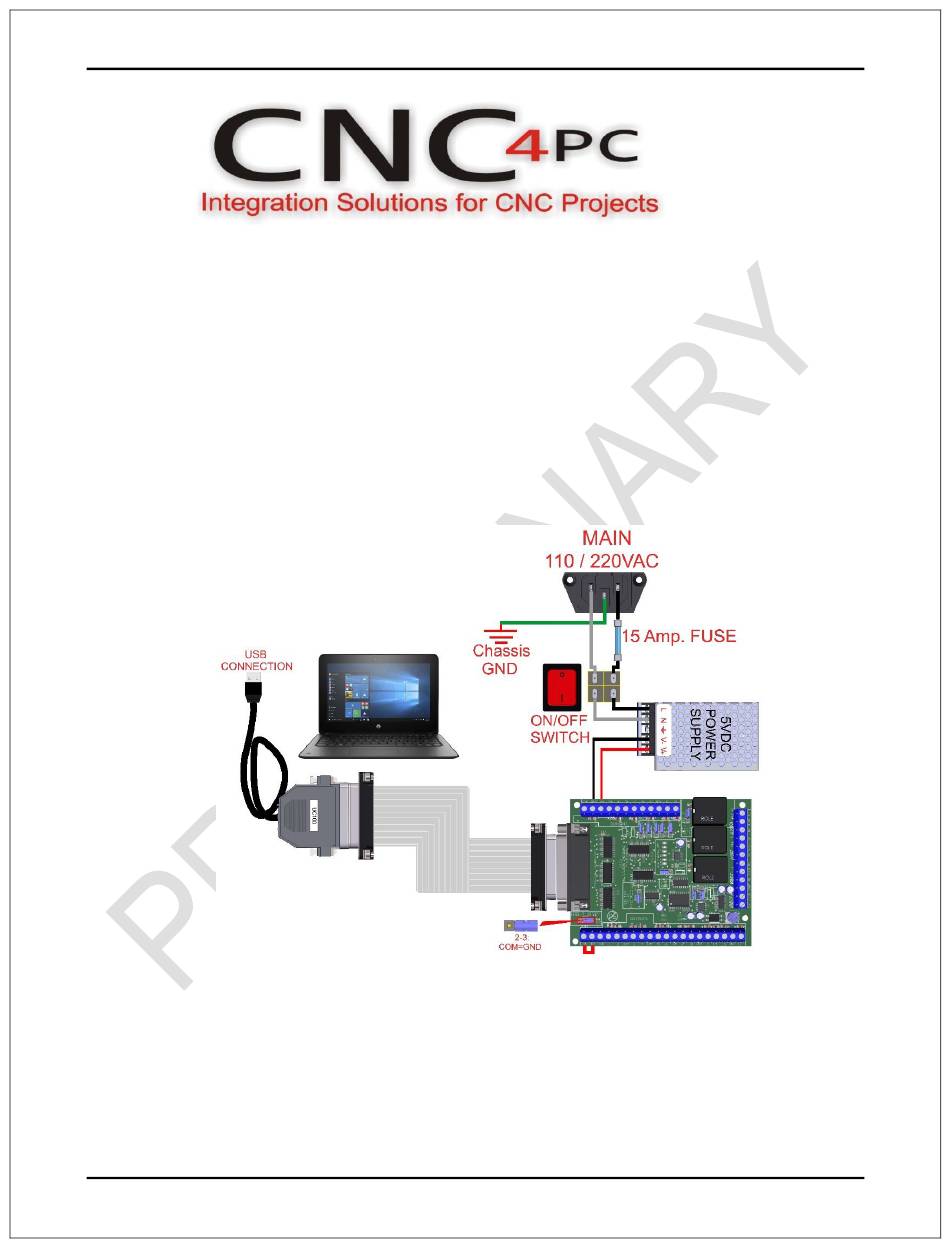

- Page 1 STEP BY STEP FOR SETTING UP A C11G + UC100 FEBRUARY, 2020 1. Make sure the controller is connected to an USB port on the PC and powered with LEDs ON. User’s Manual Page 1...
- Page 2 2. Instal UC100’S Driver http://cncdrive.com/MC/UC100%20files%20for%20manual%20installation/UC100_USB%20 drivers.zip 3. Connect an E-Stop button to short the E-Stop terminals, disable the Safety Change Pump (OFF). This should give you a green LED. IF not, check other possible fault conditions and make sure they are not active. User’s Manual Page 2...
- Page 3 4. Download the cnc4pc.com software and run it as follows for its operation. ✓ Select the profile of your preference> click on install. ✓ finally click on finish. 5. Start UCCNC. Must to light the green LED, when you press the reset button and you can proceed to set the travel info for the axes and set up the max spindle speed for the spindle.
- Page 4 7. If something is not clear, do not hesitate in opening a support ticket and we will get back to you as soon as possible: https://cnc4pc.com/contact/ Disclaimer: Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices.
