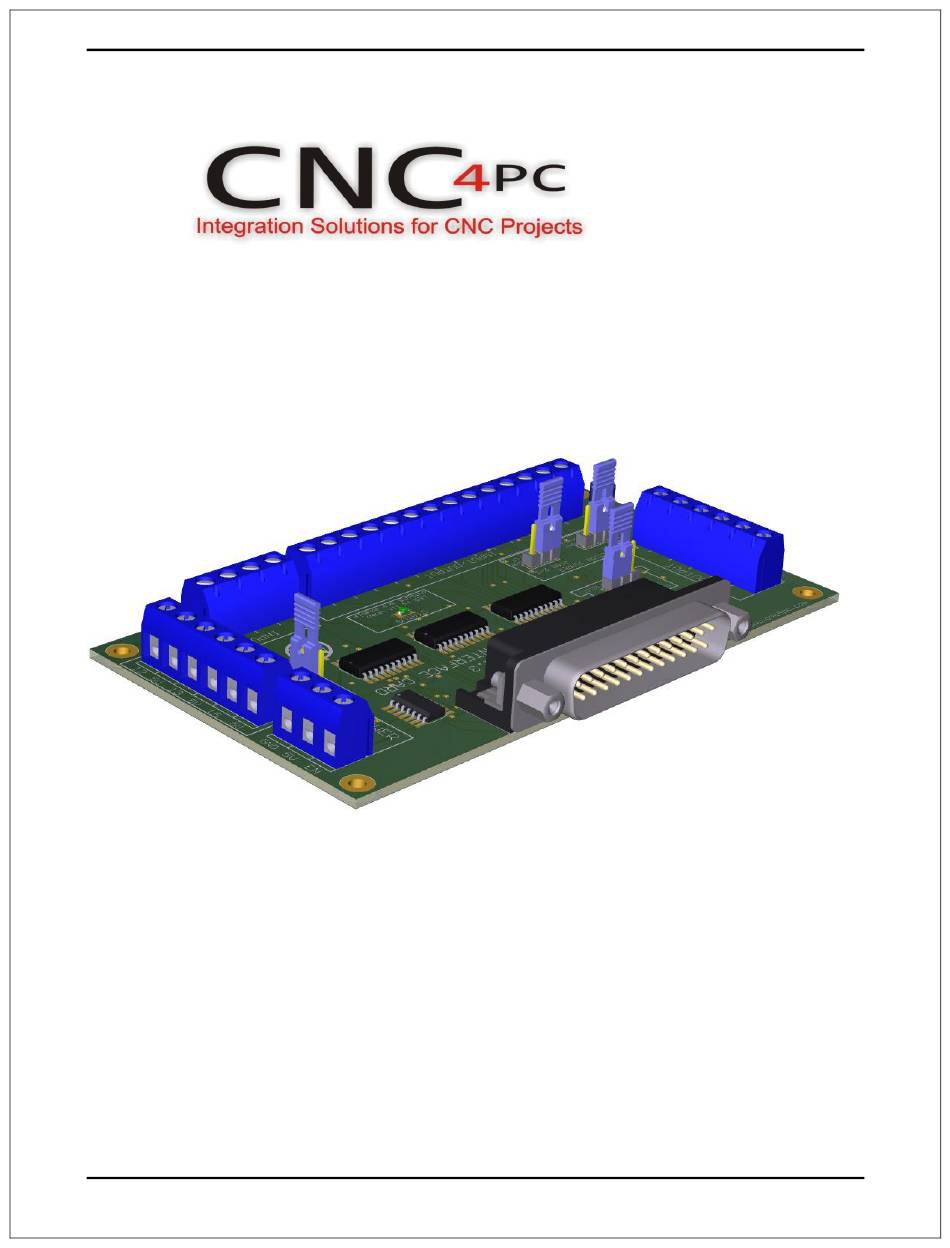

- Page 1 USER’S MANUAL VER.2 C10- PARALLEL PORT INTERFACE CARD BOARD Rev. 11.3 APRIL, 2019 User’s Manual Page i...
-
Page 2: Table Of Contents
USER'S MANUAL TABLE OF CONTENTS Contents Page # OVERVIEW ........................iii FEATURES ........................iii SPECIFICATIONS ......................1 BOARD DESCRIPTION ....................1 SPECIFICATIONS ......................2 Power Requirements ....................2 POWER TERMINAL ....................... 2 Enable pin........................3 LED INDICATOR ......................3 CONFIGURATION JUMPERS .................. -
Page 3: Overview

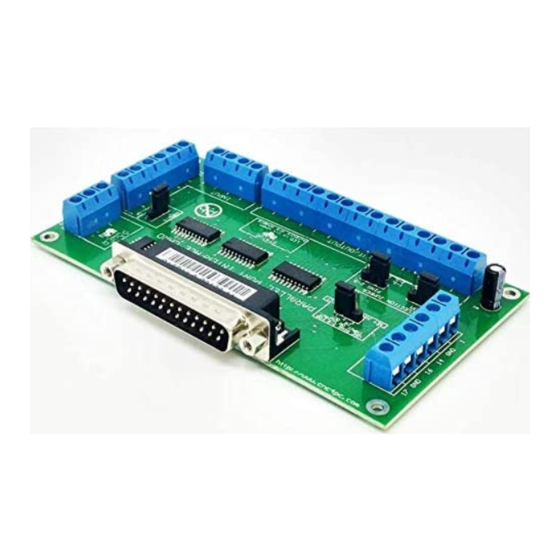

OVERVIEW This card provides an easy way of interfacing your inputs and outputs from you parallel port. It provides terminals for the connections and conditions the signals for use in CNC applications. FEATURES • IEEE 1284 Standard compatible. • PULL-UP or PULL-DOWN selection for inputs. •... -
Page 4: Specifications
SPECIFICATIONS DIGITAL INPUT SPECIFICATIONS On-state voltage range 2 to 5V DC Maximum off-state voltage 0.8V Maximum operation frequency 4 MHz Typical signal delay 10nS DIGITAL OUTPUT SPECIFICATIONS (5V power supply voltage) + Maximum output voltage 0.5V Typical output current 24mA Maximum off-state voltage 0.44 V Maximum operation frequency... -
Page 5: Specifications
SPECIFICATIONS Power Requirements Regulated +5VDC@ 500mA is required to power this board. WARNING Check the polarity and voltage of the external power source and connect the 5VDC and GND. Overvoltage or reverse-polarity power applied to these terminals can cause damage to the board, and/or the power source. POWER TERMINAL User’s Manual Page 2... -
Page 6: Enable Pin
Enable pin. The card must be provided with a 5VDC signal to enable operation. This feature has been added to externally control the status of the outputs. An external switch or a Safety Charge Pump can be added to provide the enabling signal. When the enable signal is not present, output signals sent high impedance state. -
Page 7: Configuration Jumpers
CONFIGURATION JUMPERS Using the COM configuration jumper There is a jumper that allows you to select +5VDC or GND for the COM pins. 1-2: COM= GND 2-3: COM= +5VDC Using the Pins 2-9 direction jumper There is a jumper to select the pins 2-9 direction. 1-2: OUTPUTS 2-3: INPUTS User’s Manual... -
Page 8: Using The Pull-Up Or Pull-Down Selection Jumper For Pins 2-9
Using the Pull-up or Pull-down selection jumper for pins 2-9. Jumper allows to change the input configuration for 2-9. Using the Pull-up or Pull-down selection jumper for pins 2-9 the input voltage is pulled through a 4.7Kohm resistor to up or down in this way: 1-2: PULL-DOWN 2-3: PULL-UP... -
Page 9: Functional Block Diagrams
FUNCTIONAL BLOCK DIAGRAMS Bidirectional pins simplified block diagram Fig. 1 Simplified functional block diagram for the 2-9 pins. A Pull-up or Pull-down selection jumper allows selecting the configuration for the all bidirectional pins (2-9) when they are set as inputs. Dedicated Inputs simplified block diagram Fig. -
Page 10: Wiring Diagrams
10.0 WIRING DIAGRAMS While this board supports only TTL +5VDC signals, different kind of sensors, switches using different voltages can be connected using the diagrams that follow: Note. This board has two possible inputs banks, (bidirectional pins: 2-9) and (dedicated inputs: pins 10, 11, 12, 13 and 15), and all the inputs of the same bank have the same configuration. -
Page 11: Connecting In Parallel Npn Sensors
10.3 Connecting in parallel NPN sensors. Fig. 5 Wiring diagram to connect in parallel NPN open collector proximity sensors. Connecting NPN open collector proximity sensor with the C25 R1 Value (12V) R1 Value (24V) Approx. 10KΩ Approx. 25KΩ Fig. 6 Wiring diagram to connect NPN proximity sensors with internal pull up resistor. User’s Manual Page 8... - Page 12 Some NPN proximity sensors have an internal pull-up resistor (R1). It is necessary to know its value in order to safety connect the sensor with the BOB. Follow this recommendation: Connecting NPN open collector proximity sensor with the C25 (R1+R2) Value (12V) (R1+R2) Value (24V) Approx.
-
Page 13: Connecting Pnp Sensors
10.4 Connecting PNP sensors. Fig. 7 Wiring diagram to connect PNP proximity sensors Connecting PNP proximity sensor with the C25 R Value (12V) R Value (24V) Approx. 10KΩ Approx. 25KΩ User’s Manual Page 10... -
Page 14: Dimensions
11.0 DIMENSIONS All dimensions are in Millimeters. Fixing holes (2.8mm). DISCLAIMER Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This product is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
