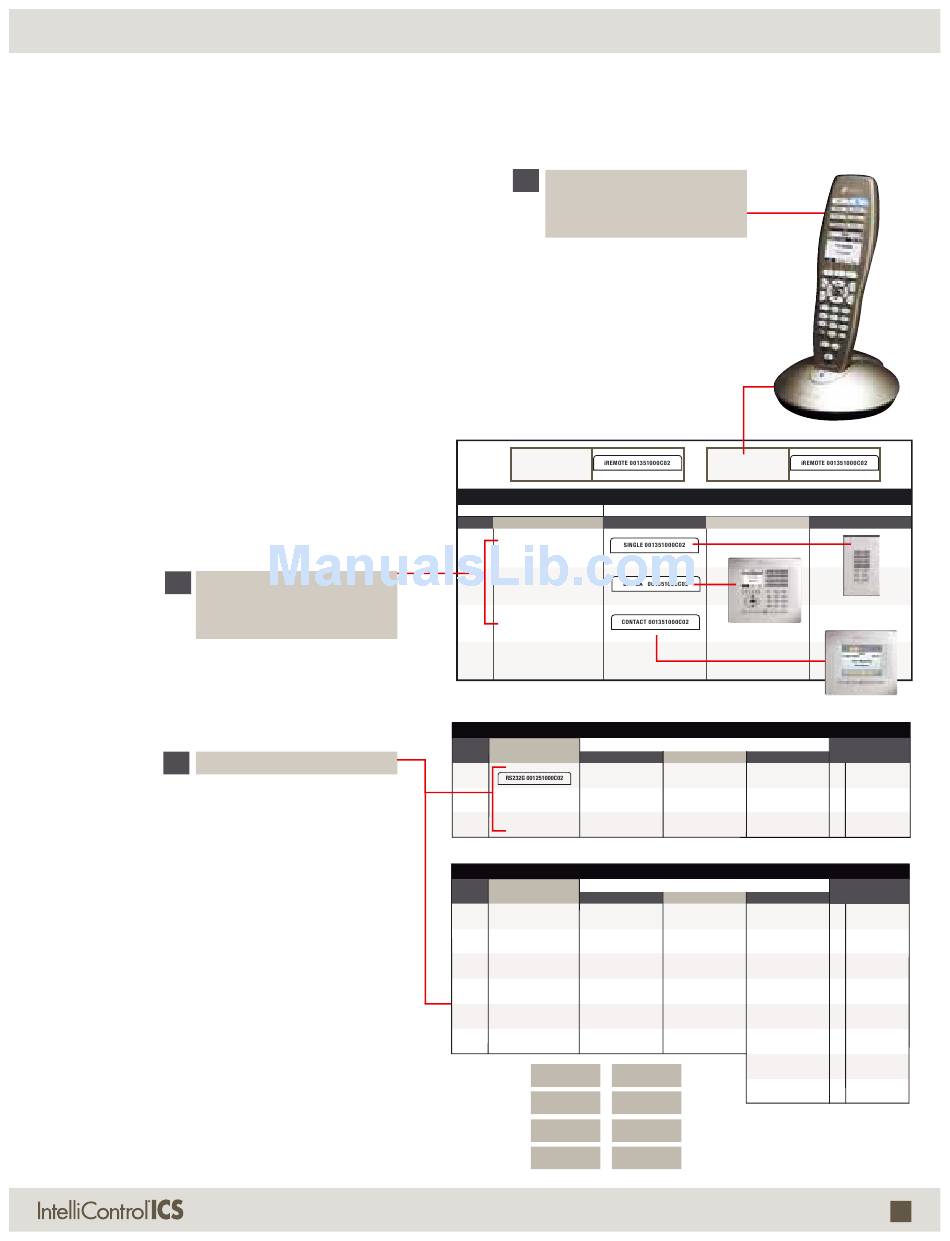

FILLING OUT THE GXR2 INSTALLATION WORKSHEET

IMPORTANT: This document is your system design
map. It must be filled out correctly before any
programming or installation occurs.
The GXR2 Installation Worksheet, included with the
IntelliControl ® ICS Modular Multizone Receiver (and
available for download at www.IntelliControl.com),
provides spaces for placing the MAC ID stickers next
to the name of the zone they are located in. Take
special care in associating the correct MAC ID sticker
with the right zone on the worksheet.
Two MAC ID stickers are found on the iRemote Charging
Base. Remove one of the stickers and place in the area
under the box marked "1" box for the "iRemote
Master Charging Base" on the GXR2 Installation
Worksheet.
DO NOT REMOVE BOTH STICKERS FROM
THE iREMOTE BASE. It may become necessary
to reference the iRemote charging base sticker
for troubleshooting
2 Name each zone
and assign the
user interfaces
Remove the MAC ID sticker
from each user interface and
place next to the zone to
which it has been assigned.
3 Assign sources
Enter the names of the source
modules inserted in the card
slots of the master chassis. For
IM-AUDIO/RS232G module(s),
enter the brand, type and model
of the component connected to
it. For RS232G place the MAC
ID in the appropriate space.
Note: Source in Card
Slot 1 must be assigned
to Master Key 1, Card
Slot 2 must be assigned
to Master Key 2, and
so on.
Choose a label for the master
key of each source module
installed.
If one or more of the card
slots are empty, you are free
to assign any Source to the
corresponding Master Key.

GETTING STARTED

1
Remove the MAC ID sticker
from master iRemote base(s)
and place them in the boxes
on the worksheet.
i R E M O T E M A S T E R
C H A R G I N G B A S E
( N E T W O R K 1 )
M A S T E R
Z O N E
O U T P U T N A M E
Kitchen
1
Patio
2
Master Bd
3
4
R S 2 3 2 G M O D U L E A S S I G N M E N T S / M A S T E R K E Y L A B E L S
C A R D
M A C I D
S L O T
S O U R C E M O D U L E A S S I G N M E N T / M A S T E R K E Y L A B E L S
C A R D M O D U L E
S L O T T Y P E
IM-IPOD
1
TM-XM
2
TM-AM/FM
3
IM-AUDIO
4
IM-AUDIO
5
-------
6
MASTER KEY 1
MASTER KEY 3
AM/FM
MASTER KEY 5
MASTER KEY 7
LIGHTS
Designate the
iRemote ® master
charging bases
i R E M O T E M A S T E R
C H A R G I N G B A S E
( N E T W O R K 2 )
C H A S S I S Z O N E N A M E S
U S E R I N T E R F A C E
M A C I D #
S O U R C E C O M P O N E N T A S S I G N M E N T
B R A N D T Y P E
Lutron grafik eye
S O U R C E C O M P O N E N T A S S I G N M E N T
B R A N D T Y P E
------- -------
------- -------
------- -------
SONY DSS
SONY
CD
MASTER KEY 2
iPod XM
MASTER KEY 4
DSS
MASTER KEY 6
CD Rock
MASTER KEY 8
CLASSICAL
