INTELLICONTROL
INTERCHANGEABLE SOURCE CARD MODULES

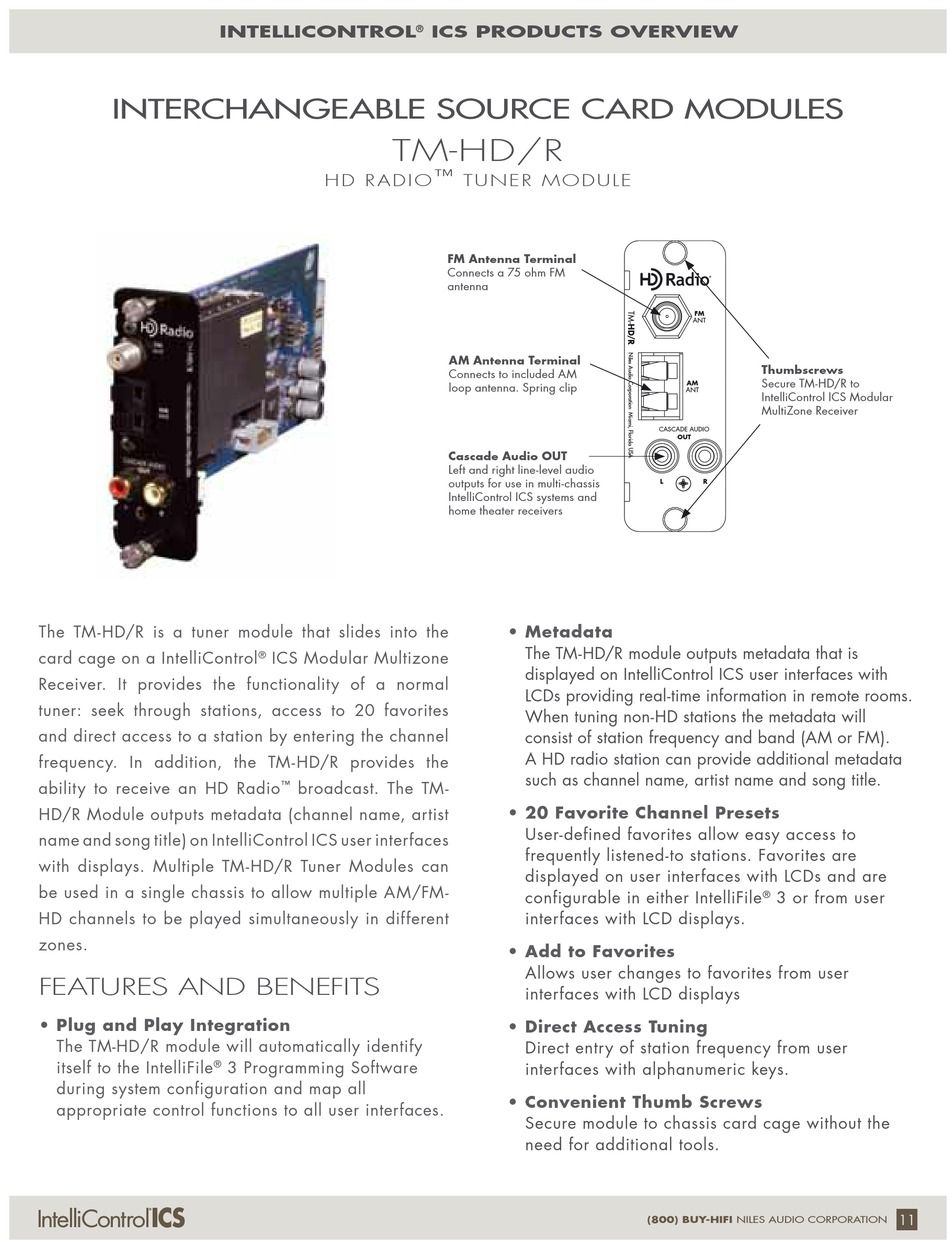

The TM-HD/R is a tuner module that slides into the
card cage on a IntelliControl
Receiver. It provides the functionality of a normal
tuner: seek through stations, access to 20 favorites
and direct access to a station by entering the channel
frequency. In addition, the TM-HD/R provides the
ability to receive an HD Radio
HD/R Module outputs metadata (channel name, artist
name and song title) on IntelliControl ICS user interfaces
with displays. Multiple TM-HD/R Tuner Modules can
be used in a single chassis to allow multiple AM/FM-
HD channels to be played simultaneously in different
zones.
FEATURES AND BENEFITS
• Plug and Play Integration
The TM-HD/R module will automatically identify
itself to the IntelliFile
®
during system configuration and map all
appropriate control functions to all user interfaces.

TM-HD/R

H D R A D I O ™ T U N E R M O D U L E
® ICS Modular Multizone
™ broadcast. The TM-
3 Programming Software
® ICS PRODUCTS OVERVIEW
FM Antenna Terminal
Connects a 75 ohm FM
antenna
AM Antenna Terminal
Connects to included AM
loop antenna. Spring clip
Cascade Audio OUT
Left and right line-level audio
outputs for use in multi-chassis
IntelliControl ICS systems and
home theater receivers
• Metadata
The TM-HD/R module outputs metadata that is
displayed on IntelliControl ICS user interfaces with
LCDs providing real-time information in remote rooms.
When tuning non-HD stations the metadata will
consist of station frequency and band (AM or FM).
A HD radio station can provide additional metadata
such as channel name, artist name and song title.
• 20 Favorite Channel Presets
User-defined favorites allow easy access to
frequently listened-to stations. Favorites are
displayed on user interfaces with LCDs and are
configurable in either IntelliFile
interfaces with LCD displays.
• Add to Favorites
Allows user changes to favorites from user
interfaces with LCD displays
• Direct Access Tuning
Direct entry of station frequency from user
interfaces with alphanumeric keys.
• Convenient Thumb Screws
Secure module to chassis card cage without the
need for additional tools.
Thumbscrews
Secure TM-HD/R to
IntelliControl ICS Modular
MultiZone Receiver
® 3 or from user
