Preparation
Antennas
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections
that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector,
plug it into the antenna terminal at the rear of the TV set. For connecting the antenna cable to the TV, use
commercially available cables.

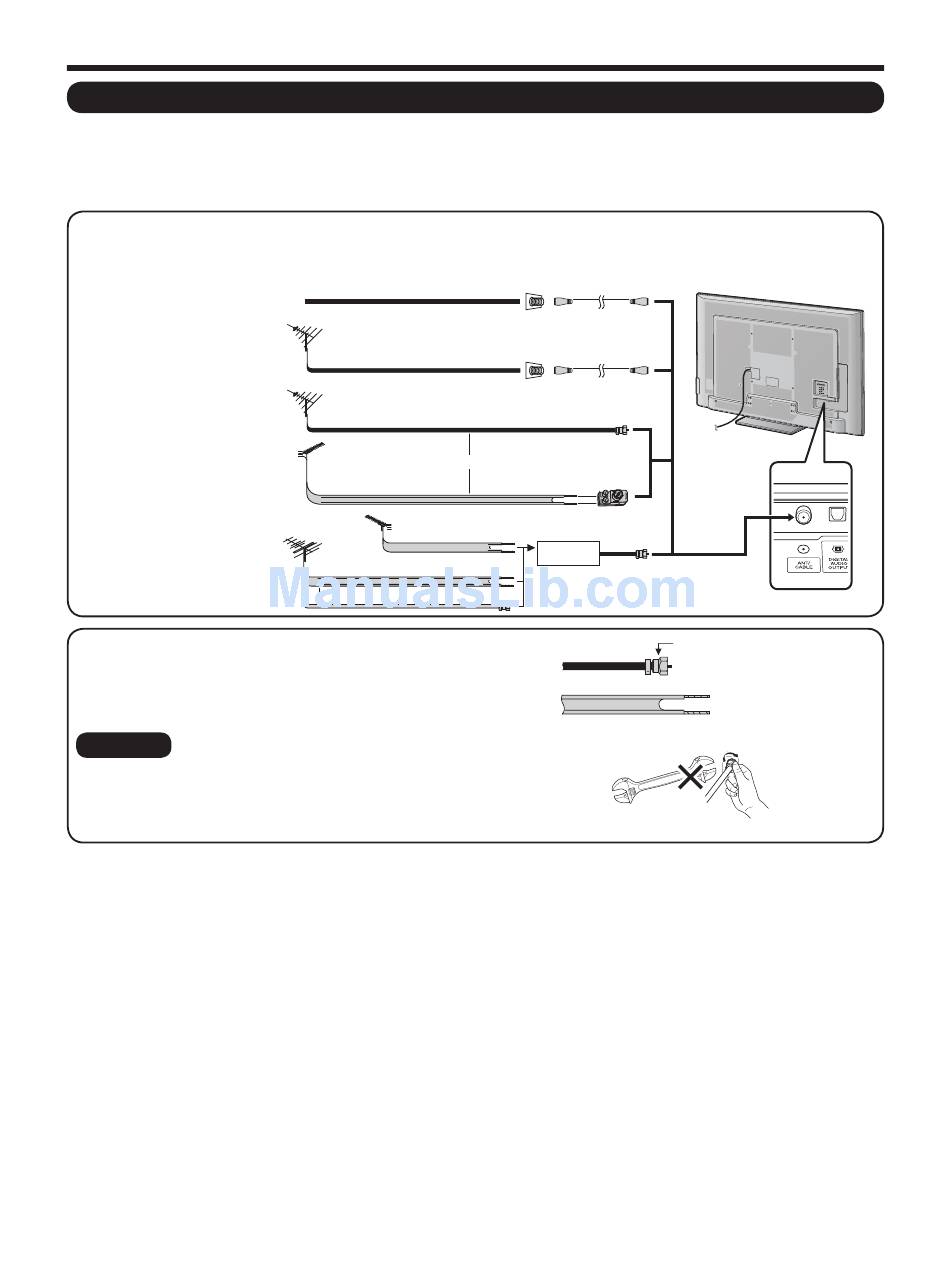

Connecting Antenna Cable
• Connect the antenna cable to the TV using one of the methods in the illustration as shown ( 1 , 2 , 3 or 4 ).
1 Cable without a CATV
converter
2 VHF/UHF antenna
3 Combination VHF/
UHF antenna
4 Separate VHF/UHF
antenna
1. A 75-ohm system is generally a round cable with F-type connector
that can easily be attached to a terminal without tools.
2. A 300-ohm system is a fl at "twin-lead" cable that can be attached
to a 75-ohm terminal through a 300/75-ohm adapter.
NOTICE
F-type connector should be fi nger-tightened only.
When connecting the RF cable to the TV set, do not tighten F-type
connector with tools.
If tools are used, it may cause damage to your TV set. (The breaking
of internal circuit, etc.)
2012 SKYVUE
LC-80LE633U_70_60_52LE640U_C6400U_E.indb 9
Cable TV lead-In
75-ohm coaxial cable (round)
75-ohm coaxial cable (round)
300-ohm twin-lead cable (flat)
VHF UHF
300-ohm
ANTENNA ANTENNA
twin-lead cable
300-ohm twin-lead cable
or
75-ohm coaxial cable
Home Antenna
terminal (75-ohm)
Coaxial cable
Home Antenna
terminal (75-ohm)
Coaxial cable
or
300/75-ohm adapter
IN OUT
Combiner
300-ohm twin-lead cable (fl at)
75-ohm coaxial cable
To TV antenna
terminal
F-type connector
75-ohm coaxial cable (round)
F-type connector
9
