Connecting A Surround System/Audio System - Skyvue SKY5230 Owner's Manual

Connecting to External Equipment

Connecting a Surround System/Audio System

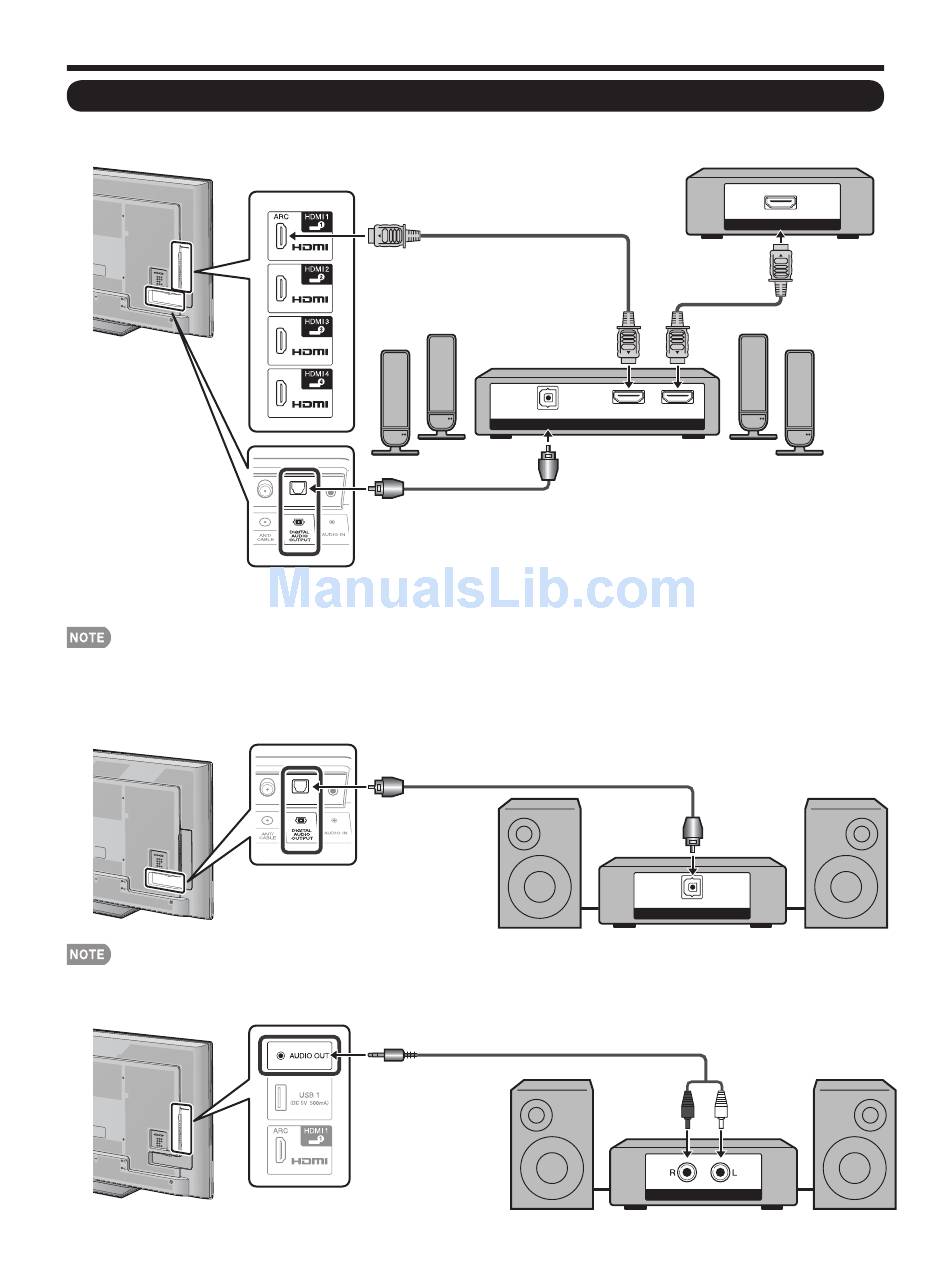

■ When connecting an AV amplifi er for surround system
• Letting the TV output the audio to an AV amplifi er:
*1 When you connect ARC-compatible equipment, use the HDMI 1 terminal.
*2 If the equipment to be connected is not compatible with the ARC, connect an optical fi ber cable.
• If the image is not in sync with the audio, check the settings of the connected surround system.
■ When connecting an Audio amplifi er
It is possible to output audio through the DIGITAL AUDIO OUTPUT terminal. PCM audio
outputs from the terminal.
• Depending on the connected equipment, audio will not output from the DIGITAL AUDIO OUTPUT terminal in HDMI
connection. In this case, set the audio formats of the connected equipment to PCM, 32/44.1/48 kHz.
• Optical digital audio will be output in 2-ch stereo when it is from the external equipment connected to the TV using an HDMI cable.
.
