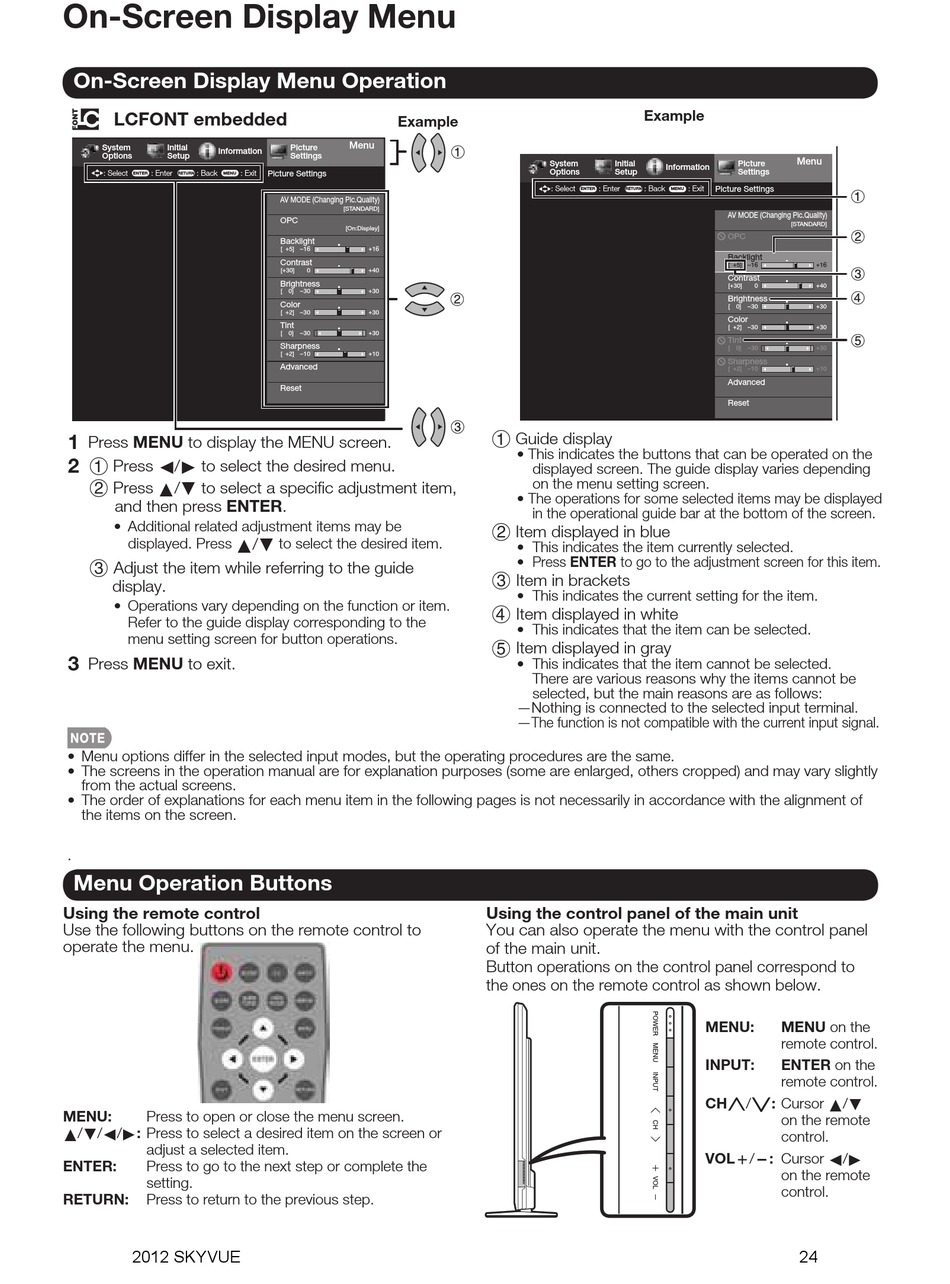

On-Screen Display Menu

On-Screen Display Menu Operation

LCFONT embedded
System Initial
Options Setup
: Select : Enter : Back
ENTER RETURN
1
Press MENU to display the MENU screen.
2
1 Press c / d to select the desired menu.
2 Press a / b to select a specifi c adjustment item,
and then press ENTER.
• Additional related adjustment items may be
displayed. Press
3 Adjust the item while referring to the guide
display.
• Operations vary depending on the function or item.
Refer to the guide display corresponding to the
menu setting screen for button operations.
3
Press MENU to exit.
• Menu options differ in the selected input modes, but the operating procedures are the same.
• The screens in the operation manual are for explanation purposes (some are enlarged, others cropped) and may vary slightly
from the actual screens.
• The order of explanations for each menu item in the following pages is not necessarily in accordance with the alignment of
the items on the screen.
.

Menu Operation Buttons

Using the remote control

Use the following buttons on the remote control to
operate the menu.
MENU: Press to open or close the menu screen.
a / b / c / d : Press to select a desired item on the screen or
adjust a selected item.
ENTER: Press to go to the next step or complete the
setting.
RETURN: Press to return to the previous step.
2012 SKYVUE
LC-80LE633U_70_60_52LE640U_C6400U_E_03.indd 24
Menu
Information
Settings
: Exit Picture Settings
MENU
AV MODE (Changing Pic.Quality)
[STANDARD]
OPC
[On:Display]
Backlight
[ b5] a16
b16
Contrast
[b30] 0
b40
Brightness
[ 0] a30
b30
Color
[ b2] a30
b30
Tint
[ 0] a30
b30
Sharpness
[ b2] a10
b10
Advanced
Reset
a / b
to select the desired item.
Example
System
Options
: Select
1 Guide display
• This indicates the buttons that can be operated on the
displayed screen. The guide display varies depending
on the menu setting screen.
• The operations for some selected items may be displayed
in the operational guide bar at the bottom of the screen.
2 Item displayed in blue
• This indicates the item currently selected.
• Press ENTER to go to the adjustment screen for this item.
3 Item in brackets
• This indicates the current setting for the item.
4 Item displayed in white
• This indicates that the item can be selected.
5 Item displayed in gray
• This indicates that the item cannot be selected.
There are various reasons why the items cannot be
selected, but the main reasons are as follows:
—Nothing is connected to the selected input terminal.
—The function is not compatible with the current input signal.
Using the control panel of the main unit
You can also operate the menu with the control panel
of the main unit.
Button operations on the control panel correspond to
the ones on the remote control as shown below.
Example
Initial Picture
Information
Setup Settings
: Enter : Back : Exit Picture Settings
ENTER RETURN MENU
AV MODE (Changing Pic.Quality)
OPC
Backlight
[ b5] a16
Contrast
[b30] 0
Brightness
[ 0] a30
Color
[ b2] a30
Tint
[ 0] a30
Sharpness
[ b2] a10
Advanced
Reset
MENU:
INPUT:
CH /
VOL k / l : Cursor c / d
Menu
[STANDARD]
b16
b40
b30
b30
b30
b10
MENU on the
remote control.
ENTER on the
remote control.
: Cursor a / b
on the remote
control.
on the remote
control.
24
