Connecting to External Equipment
Connecting a PC

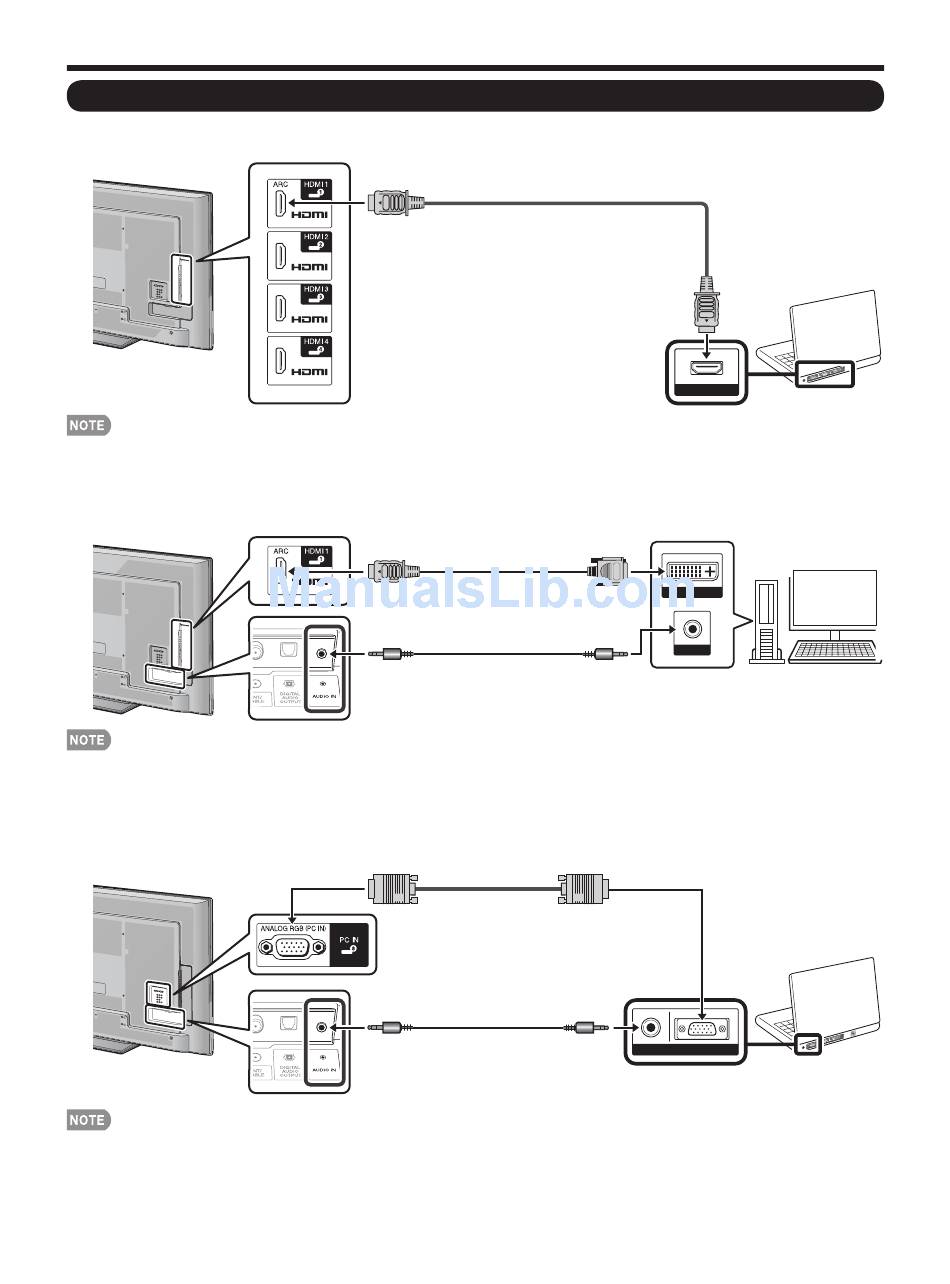

■ When using HDMI cable (HDMI 1, 2, 3 or 4):
• Depending on the board, only video signals may be output. In this case, in addition to connecting an HDMI-certifi ed cable
to the HDMI 1 terminal, connect a Ø 3.5 mm stereo minijack cable to the AUDIO IN terminal and set "Audio Select" to
"HDMI+Analog".
• The HDMI terminals only support digital signal.
■ When using DVI-HDMI conversion cable (HDMI 1):
• When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to
connecting a DVI-HDMI conversion cable to the HDMI 1 terminal, connect a Ø 3.5 mm stereo minijack cable to the AUDIO IN
terminal and set "Audio Select" to "HDMI+Analog".
■ When using analog RGB cable (PC IN):
• When using an analog RGB cable, input the audio signal to the AUDIO IN terminal of PC IN.
• When connecting a PC to the PC IN, set "Audio Select" to "Video+Audio".
2012 SKYVUE
LC-80LE633U_70_60_52LE640U_C6400U_E.indb 16
HDMI-certified cable
DVI-HDMI conversion cable
Ø 3.5 mm stereo minijack cable
Analog RGB cable
(D-sub 15-pin cable or VGA cable)
Ø 3.5 mm stereo minijack cable
HDMI OUT
DVI OUT
AUDIO
AUDIO RGB
