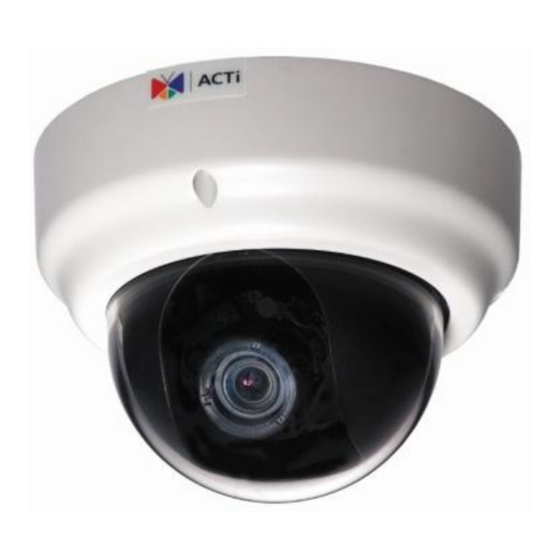

- Page 1 KCM-3311 3.6x Zoom H.264 4-Megapixel IP D/N PoE Indoor Dome with P-Iris, Advanced Ver. 2012/8/9...
-
Page 2: Table Of Contents
KCM-3311 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............5 Safety Instructions ................7 Physical description ................ 9 Product Specification ..............11 Installation Procedure Connecting the IP Indoor Dome ........... 12 Remove the cover ............... 12 Connect cables to connectors .......... -
Page 3: Precautions
KCM-3311 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment. -
Page 4: Introduction
KCM-3311 Hardware User’s Manual 1. Introduction Package Contents KCM-3311 Accessories Warranty Card Drill Template www.acti.com... -
Page 5: Features And Benefits
KCM-3311 Hardware User’s Manual Features and Benefits This is a cutting edge network video surveillance camera. It can capture, compress and transmit real time video in excellent quality (8 FPS 4Megapixel, 2032 x 1920). This camera is your best choice to build an intelligent IP surveillance system. - Page 6 KCM-3311 Hardware User’s Manual Software Development Kit Support This IP Dome Camera can be integrated or controlled by applications from third party software developers. Software developers can save considerable efforts by using our Streaming Library or ActiveX control. www.acti.com...
-
Page 7: Safety Instructions
KCM-3311 Hardware User’s Manual Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above. - Page 8 KCM-3311 Hardware User’s Manual this manual. Adjust only those controls that are covered by the instruction manual, as an improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation.
-
Page 9: Physical Description
KCM-3311 Hardware User’s Manual Physical description Reset Button Power Button Ethernet Port 1) Reset Button Step 1: Switch off IP device by disconnecting the power cable Step 2: Press and continue to hold the Reset Button (with a sharp tipped object, like a pen.) Step 3: Reconnect the power cable while continuing to hold the reset button. - Page 10 KCM-3311 Hardware User’s Manual Restore to Default Power On Complete On (3s) Off (about 15s) Off (10~15s) Stay On About 20 Seconds 2) Power Button Press the Power Button and then camera will reboot automatically. 3) Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet).
-
Page 11: Product Specification
KCM-3311 Hardware User’s Manual Product Specification KCM-3311 • Device Device Type Fixed Dome Camera Image Sensor Progressive Scan CMOS 1/3.2” (4.5 x 3.4 mm) Sensor Size Horizontal Resolution 1422 TVL Day / Night Minimum Illumination Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0.05 lux at F1.4 (30 IRE, 2400°K) -
Page 12: Installation Procedure
KCM-3311 Hardware User’s Manual 2. Installation Procedure Connecting the IP Indoor Dome 1) Remove the cover Remove the dome cover by unscrewing the three attachments 2) Connect cables to connectors Please follow the instructions in the Physical Description section for how to connect to each connector. -
Page 13: Accessing Camera
KCM-3311 Hardware User’s Manual 3. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Dome Cam into the network and your IP device will acquire network address by itself. - Page 14 KCM-3311 Hardware User’s Manual 4. Open Internet Explorer (Version 6.0 or above) , and type in the Default IP: 192.168.0.100 5. When you see the login window, please input default user and password: Default User: Admin Password: 123456 6. After logging in, you will see the video from camera. To go to the main menu, click the ”Setup”...
- Page 15 KCM-3311 Hardware User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP.
