ACTi KCM-7311 Hardware User Manual

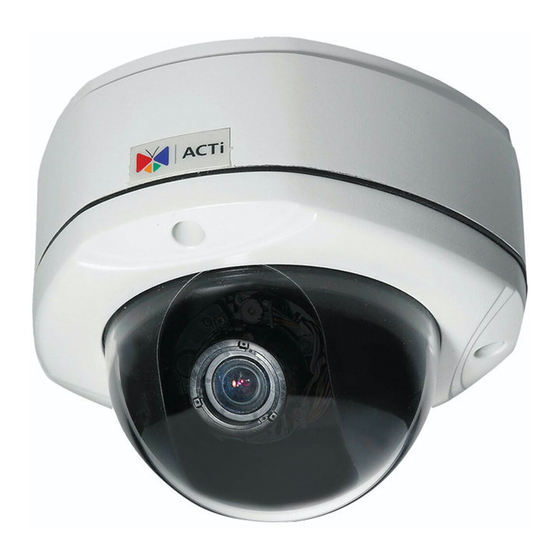

3.6x zoom h.264 4-megapixel ip d/n vandal proof poe rugged dome with piris, exdr dc 12v / poe
Hide thumbs Also See for KCM-7311:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
KCM-7311
3.6x Zoom H.264 4-Megapixel IP D/N
Vandal Proof PoE Rugged Dome with P-
Iris, ExDR
(DC 12V / PoE)
Ver. 2012/4/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KCM-7311 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACTi KCM-7311

Summary of Contents for ACTi KCM-7311

  • Page 1 KCM-7311 3.6x Zoom H.264 4-Megapixel IP D/N Vandal Proof PoE Rugged Dome with P- Iris, ExDR (DC 12V / PoE) Ver. 2012/4/02...

  • Page 2: Table Of Contents

    KCM-7311 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............5 Safety Instructions ................7 Physical description ................ 9 Product Specification ..............12 Installation Procedure Connecting the IP Outdoor Rugged Dome ........14 Remove the cover ...............

  • Page 3: Precautions

    KCM-7311 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

  • Page 4: Introduction

    KCM-7311 Hardware User’s Manual 1. Introduction Package Contents KCM-7311 Product CD Terminal Blocks for Power DI/O and Audio Accessories Warranty Card Drill Template www.acti.com...

  • Page 5: Features And Benefits

    KCM-7311 Hardware User’s Manual Features and Benefits This is a cutting edge network video surveillance camera. It can capture, compress and transmit real time video in excellent quality (8 FPS 4Megapixel, 2032 x 1920). This camera is your best choice to build an intelligent IP surveillance system.
  • Page 6 KCM-7311 Hardware User’s Manual Powerful Bundled Surveillance Software To extend the capabilities of the IP Dome Camera series, a powerful surveillance program is included in the package for free. Users can easily use an existing PC as a digital video recorder.

  • Page 7: Safety Instructions

    KCM-7311 Hardware User’s Manual Safety Instructions Don’t use the power supply with other voltages This device is likely to be damaged or damage other equipments / personnel, if you use a power supply with different voltage than the one included with this device. All warranty of this product will be voided in the situations above.
  • Page 8 KCM-7311 Hardware User’s Manual this manual. Adjust only those controls that are covered by the instruction manual, as an improper adjustment of other controls may result in damage, and will often require extensive work by a qualified technician to restore the video product to its normal operation.

  • Page 9: Physical Description

    KCM-7311 Hardware User’s Manual Physical description 1) Power Button Press the Power Button and then camera will reboot automatically. 2) Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet).
  • Page 10 KCM-7311 Hardware User’s Manual Restore to Default Power On Complete On (3s) Off (about 15s) Off (10~15s) Stay On About 20 Seconds 4) Micro SD / Micro SDHC Card Slot* Insert your Micro SD card here for local recording on camera...
  • Page 11 KCM-7311 Hardware User’s Manual Pin 1 Ground. Connect with Pin 3 for DI control loop. Pin 2 Provides power to external devices with a Voltage: 12V DC, maximum current of 100mA. Max: 1.2W Pin 3 Digital Input Connect to GND to activate, or leave floating Must not be exposed (or unconnected) to deactivate.

  • Page 12: Product Specification

    KCM-7311 Hardware User’s Manual Product Specification KCM-7311 • Device Device Type Fixed Dome Camera Image Sensor Aptina Progessive Scan CMOS 1/3.2” (4.5 x 3.4 mm) Sensor Size Horizontal Resolution 1422 TVL Day / Night Minimum Illumination Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0.05 lux at F1.4 (30 IRE, 2400°K)
  • Page 13 KCM-7311 Hardware User’s Manual • Alarm Alarm Trigger Video motion detection 3 regions in single view mode, 1 region each in 4 cropped VGA mode; External device through digital input Alarm Response Notify control center; Go to Zoom preset point or preset tour; Change camera settings; Command other devices; E-mail notification with snapshots;...

  • Page 14: Installation Procedure

    KCM-7311 Hardware User’s Manual 2. Installation Procedure Connecting the IP Outdoor Rugged Dome 1) Remove the cover Remove the dome cover with special hex wrench in the accessory kit. 2) Insert the cable There are two conduit holes on this rugged dome. One is at the bottom, while the other is at the side and covered with a plug.

  • Page 15: How To Do The Waterproof Installation

    KCM-7311 Hardware User’s Manual How to Do the Waterproof Installation The following installation procedure makes the camera be water-resistant even for the situations where the camera can easily be flooded by pouring rain. The important part to focus on during the installation: The protection of the cabling has to be done by a proper flex conduit.
  • Page 16 KCM-7311 Hardware User’s Manual Scenario 1 – using the side hole. Scenario 2 – using the bottom hole. Screw the body of the conduit gland into the camera and fix it with the lock nut (included in the set of conduit gland that you purchased) from the inside of the camera..
  • Page 17 KCM-7311 Hardware User’s Manual Push the head of the flex conduit, wrapped with sealing insert, into the body of the conduit gland. Screw the clamping nut tightly onto the body of the conduit gland. Adjust the viewing angle and focus of the camera and put the dome cover back on, and tighten it by using the screws.

  • Page 18: Accessing Camera

    KCM-7311 Hardware User’s Manual 3. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Dome Cam into the network and your IP device will acquire network address by itself.
  • Page 19 KCM-7311 Hardware User’s Manual 4. Open Internet Explorer (Version 6.0 or above) , and type in the Default IP: 192.168.0.100 5. When you see the login window, please input default user and password: Default User: Admin Password: 123456 6. After logging in, you will see the video from camera. To go to the main menu, click the ”Setup”...
  • Page 20 KCM-7311 Hardware User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP.
