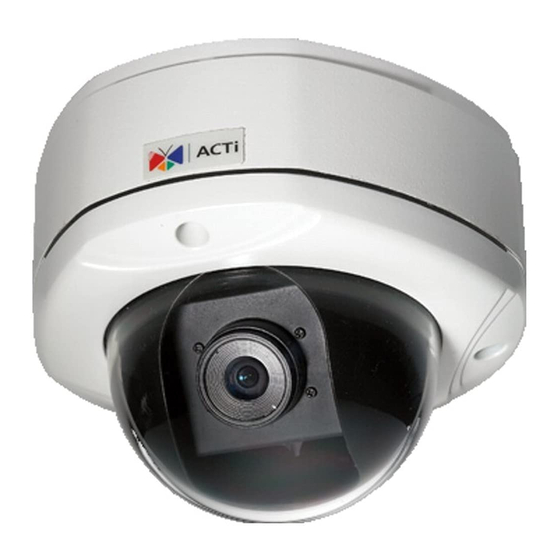

H.264 4-megapixel ip d/n vandal proof poe rugged dome camera
Hide thumbs Also See for KCM-7111:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
KCM-7111
H.264 4-Megapixel IP D/N Vandal Proof
PoE Rugged Dome Camera
(DC 12V / PoE)
Ver. 2012/3/5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KCM-7111 and is the answer not in the manual?

Questions and answers

Related Manuals for ACTi KCM-7111

Summary of Contents for ACTi KCM-7111

  • Page 1 KCM-7111 H.264 4-Megapixel IP D/N Vandal Proof PoE Rugged Dome Camera (DC 12V / PoE) Ver. 2012/3/5...

  • Page 2: Table Of Contents

    KCM-7111 Hardware User’s Manual Table of Contents Precautions Introduction Package Contents ................4 Features and Benefits ..............5 Safety Instructions ................6 Physical description ................ 8 Product Specification ..............11 Installation Procedure Connecting the IP Outdoor Rugged Dome ........13 Remove the cover ...............

  • Page 3: Precautions

    KCM-7111 Hardware User’s Manual 0. Precautions Read these instructions You should read all the safety and operating instructions before using this product. Heed all warnings You must adhere to all the warnings on the product and in the instruction manual. Failure to follow the safety instruction given may directly endanger people, cause damage to the system or to other equipment.

  • Page 4: Introduction

    KCM-7111 Hardware User’s Manual 1. Introduction Package Contents KCM-7111 *The lens is very stable and does not have focus shifts without screw, so no bundled screw for focus ring of the lens Product CD Terminal Blocks for Power DI/O and Audio...

  • Page 5: Features And Benefits

    KCM-7111 Hardware User’s Manual Features and Benefits This is a cutting edge network video surveillance camera. It can capture, compress and transmit real time video in excellent quality (8 FPS 4Megapixel, 2032 x 1920). This camera is your best choice to build an intelligent IP surveillance system.

  • Page 6: Safety Instructions

    KCM-7111 Hardware User’s Manual Software Development Kit Support This IP Box Camera can be integrated or controlled by applications from third party software developers. Software developers can save considerable efforts by using our Streaming Library or ActiveX control. Safety Instructions Don’t use the power supply with other voltages...
  • Page 7 KCM-7111 Hardware User’s Manual qualified service personnel under the following conditions. 1) When the power-supply cord or plug is damaged 2) If liquid has been spilled, or objects have fallen into the video product. 3) If the video product has been directly exposed to rain or water.

  • Page 8: Physical Description

    KCM-7111 Hardware User’s Manual Physical description 1) Power Button Press the Power Button and then camera will reboot automatically. 2) Ethernet Port The IP device connects to the Ethernet via a standard RJ45 connector. Supporting NWAY, this IP device can auto detect the speed of local network segment (10Base-T/100Base-TX Ethernet).
  • Page 9 KCM-7111 Hardware User’s Manual reset button. This length of time fluctuates slightly with the environment. The Power LED light will come back on and stay on after a few more seconds. The unit will start up with factory default settings automatically.
  • Page 10 KCM-7111 Hardware User’s Manual 6) DC 12V Power Input Connect DC power source to the terminal block. The wire with white dashed lines is the live wire, which should connect to the 12V pin. NAME DESCRIPTION AC Power Input E-Ground of power...

  • Page 11: Product Specification

    KCM-7111 Hardware User’s Manual Product Specification KCM-7111 • Device Device Type Fixed Dome Camera Image Sensor BSI Progressive Scan CMOS 1/3.2 “ (4.5 x 3.4 mm) Sensor Size Horizontal Resolution 1561 TVL Day / Night Minimum Illumination Color: 0.1 lux at F2.0 (30 IRE, 2400°K); B/W: 0.05 lux at F2.0 (30 IRE, 2400°K)
  • Page 12 KCM-7111 Hardware User’s Manual • Alarm Video motion detection 3 regions in single view mode, 1 region each in 4 cropped Alarm Trigger VGA mode; External device through digital input Notify control center; Change camera settings; Command other devices; E-mail Alarm Response notification with snapshots;...

  • Page 13: Installation Procedure

    KCM-7111 Hardware User’s Manual 2. Installation Procedure Connecting the IP Outdoor Rugged Dome 1) Remove the cover Remove the dome cover with special hex wrench in the accessory kit. 2) Insert the cable There are two conduit holes on this rugged dome. One is at the bottom, while the other is at the side and covered with a plug.

  • Page 14: How To Do The Waterproof Installation

    KCM-7111 Hardware User’s Manual How to Do the Waterproof Installation The following installation procedure makes the camera be water-resistant even for the situations where the camera can easily be flooded by pouring rain. The important part to focus on during the installation: The protection of the cabling has to be done by a proper flex conduit.
  • Page 15 KCM-7111 Hardware User’s Manual Scenario 1 – using the side hole. Scenario 2 – using the bottom hole. Screw the body of the conduit gland into the camera and fix it with the lock nut (included in the set of conduit gland that you purchased) from the inside of the camera..
  • Page 16 KCM-7111 Hardware User’s Manual Push the head of the flex conduit, wrapped with sealing insert, into the body of the conduit gland. Screw the clamping nut tightly onto the body of the conduit gland. Adjust the viewing angle and focus of the camera and put the dome cover back on, and tighten it by using the screws.

  • Page 17: Accessing Camera

    KCM-7111 Hardware User’s Manual 3. Accessing Camera If you have DHCP server / router in your network: Many network server / routers are able to automatically provide IP addresses through DHCP. If you are using such a network, just plug in your computer and IP Box Cam into the network and your IP device will acquire network address by itself.
  • Page 18 KCM-7111 Hardware User’s Manual 4. Open Internet Explorer (Version 6.0 or above) , and type in the Default IP: 192.168.0.100 5. When you see the login window, please input default user and password: Default User: Admin Password: 123456 6. After logging in, you will see the video from camera. To go to the main menu, click the ”Setup”...
  • Page 19 KCM-7111 Hardware User’s Manual If you are using a single camera, this is enough to access the device. If you are using multiple devices, you need to change the current device to another unused IP address, so that when the next device is connected to the network, no two devices use the same IP.
