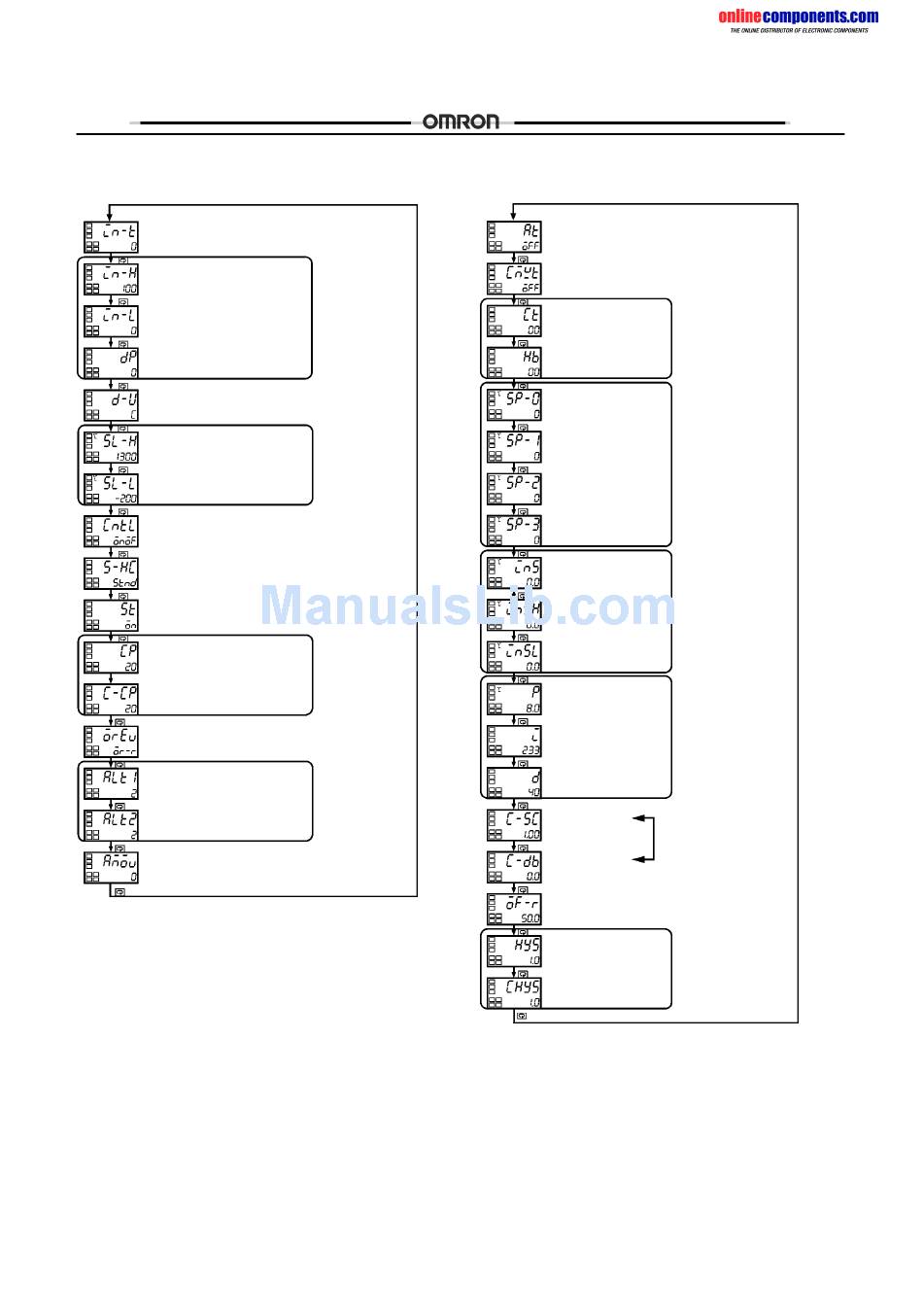

Initial Setting Level
Input type
Scaling upper limit
Scaling lower limit
Decimal point
Number of displayed digits
Temperature unit
Set point upper limit
Set point lower limit
PID / ON/OFF
Select the control system.
Standard/heating and cooling
ST Self-tuning
Control period (heat)
Control period (cool)
Direct/reverse operation
Alarm 1 type
Alarm 2 type
Move to advanced function
setting level
For analog input
(Input type: 16)
0- to 50-mV setting
 : °C
 : °F
Limit the set point.
 : ON/OFF control
 : PID control
 : Standard
 : Heating/cooling
 : Enabled
 : Disabled
Set the pulse
output cycle.
 : Reverse
 : Direct
Select the alarm
mode.

Adjustment Level

AT execute/cancel Auto-tuning
Communications writing
Heater current
value monitor
Heater burnout
detection
Set point 0
Set point 1
Set point 2
Set point 3
Temperature input shift
Upper-limit temperature
input shift value
Lower-limit temperature
input shift value
Proportional band
P
Integral time
I
Derivative time
D
Cooling coefficient
Dead band
Manual reset value
Hysteresis (heat)
Hysteresis (cool)
E5CN
 : Enabled
 : Disabled
HBA
function
Set points used
by multi-SP
1-point shift
2-point shift
PID settings
Used in heating and
cooling control
Clear the offset during
stabilization of P or PD
control.
Set hysteresis.
