Operation Level - Omron E5CN Manual

E5CN


PARAMETERS
Parameters related to setting items for each level are marked in
boxes in the flowcharts and brief descriptions are given as
required. At the end of each setting item, press the mode key to
return to the beginning of each level.
Display
E5CN E5GN
No. 1 display
No. 2 display
No. 2 display
Power ON

Operation level

Adjustment level
key
Less than 1 second
key 3 second min.
key
1 second
min.
Communications
Initial setting level
setting level
key
Less than 1 second
key
Password input
1 second
set value "-169"
min.
Advanced function
setting level
Password input
set value "1201"
Calibration level
No. 1 display
+ key
1 second min.
Control stops.
Protect level
Control in progress
Control stopped
Level change

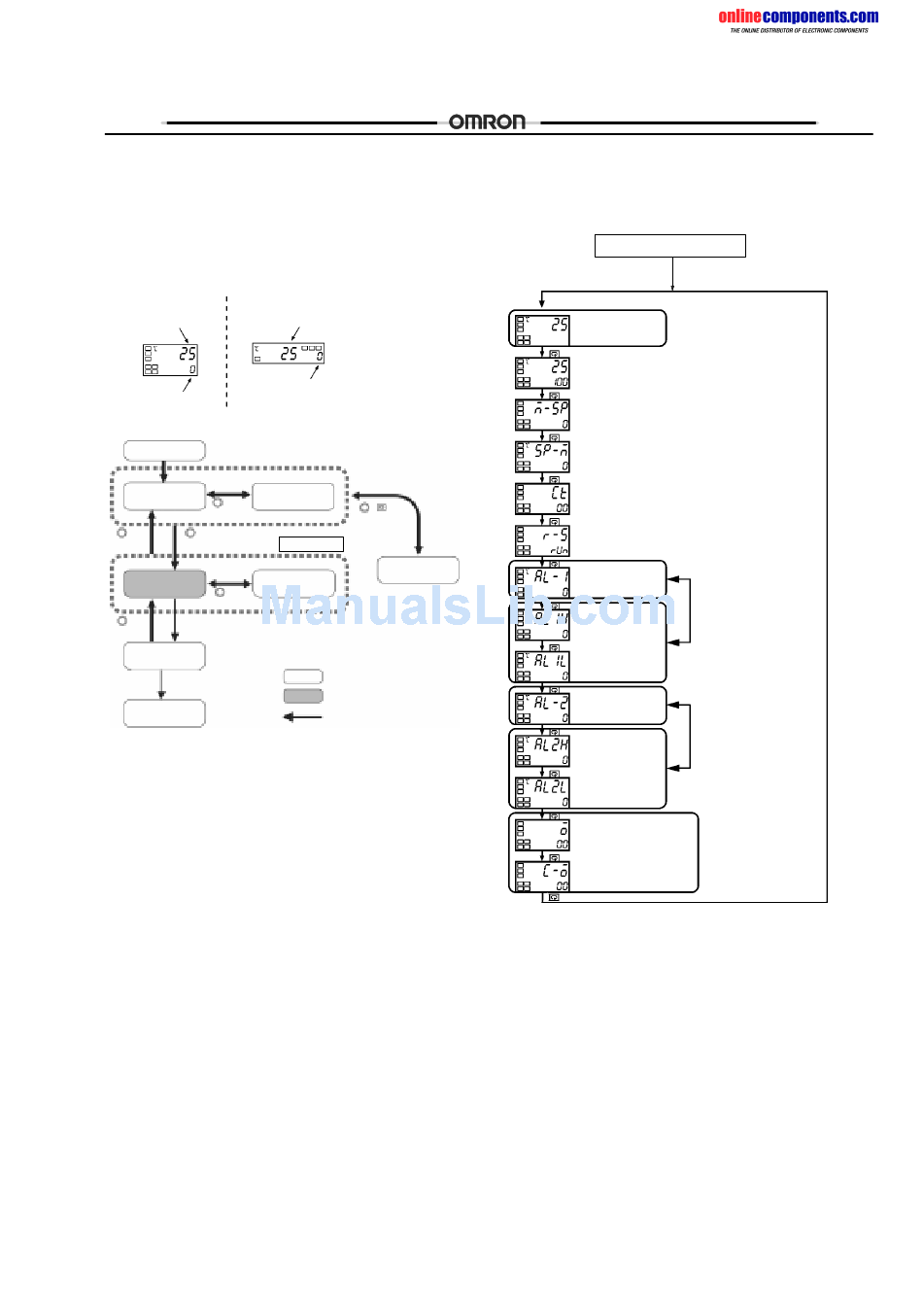

Operation Level
Power ON
PV
Add in the "additional
PV display" parameter.
PV/SP
Multi-SP Select SP.
Set point during SP ramp
Heater current value monitor
Run/stop
Alarm value 1
Upper-limit
alarm value 1
Lower-limit
alarm value 1
Alarm value 2
Upper-limit
alarm value 2
Lower-limit
alarm value 2
MV monitor (heat)
MV monitor (cool)
E5CN
Current value
monitor of HBA
 : RUN
 : STOP
Set either of
these parameters.
Set either of
these parameters.
