Issue 1.0
IP Phone
192.168.1.100
192.168.1.101
1 - 4

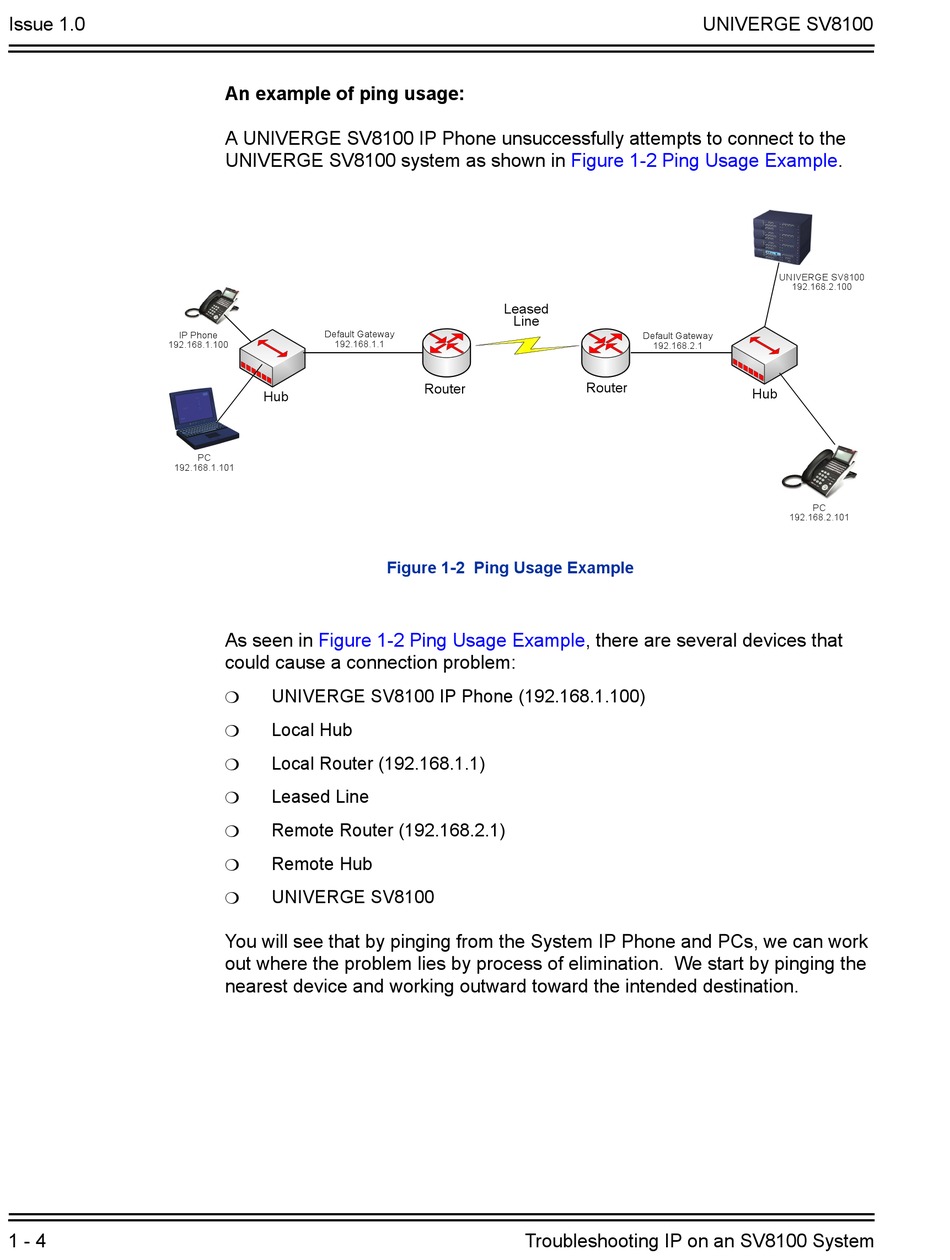

An example of ping usage:
A UNIVERGE SV8100 IP Phone unsuccessfully attempts to connect to the
UNIVERGE SV8100 system as shown in
Default Gateway
192.168.1.1
Hub
PC
As seen in Figure 1-2 Ping Usage
could cause a connection problem:
UNIVERGE SV8100 IP Phone (192.168.1.100)
Local Hub
Local Router (192.168.1.1)
Leased Line
Remote Router (192.168.2.1)
Remote Hub
UNIVERGE SV8100
You will see that by pinging from the System IP Phone and PCs, we can work
out where the problem lies by process of elimination. We start by pinging the
nearest device and working outward toward the intended destination.
Leased
Line
Router

Figure 1-2 Ping Usage Example

Example, there are several devices that
Troubleshooting IP on an SV8100 System
UNIVERGE SV8100
Figure 1-2 Ping Usage
Default Gateway
192.168.2.1
Router
Example.
UNIVERGE SV8100
192.168.2.100
Hub
PC
192.168.2.101
