Door Overlay Installation - Osburn STRATFORD Installation Instructions Manual

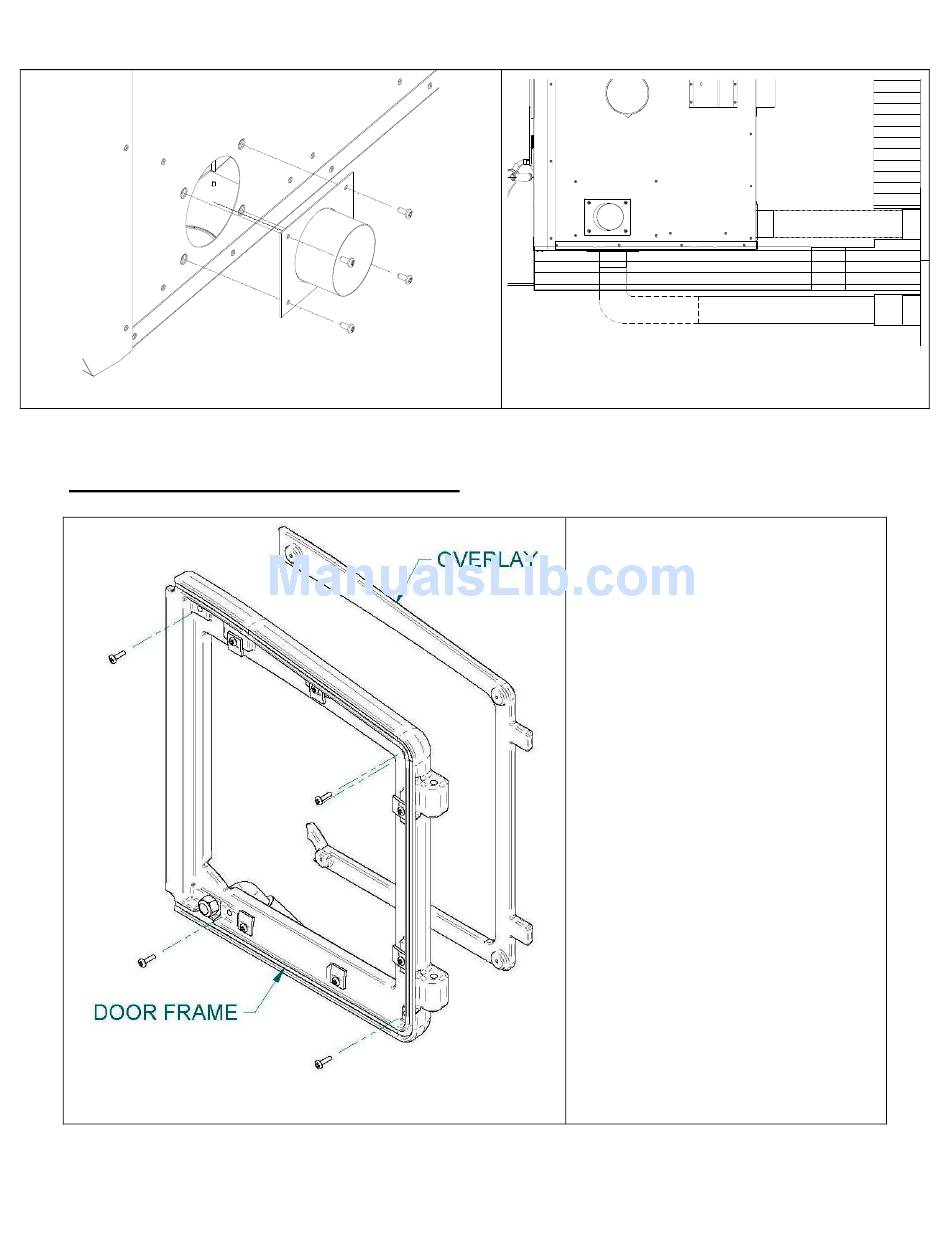

Figure 33
Figure 32
2.7

DOOR OVERLAY INSTALLATION

In order to install the door overlay,
simply put the overlay on the door
frame. Then, pass the 4 bolts through
the holes shown in figure 34.
Finally, secure the door overlay in
place using the 4 nuts. You will need
to lift the gasket slightly. It is
important that the gasket stays intact.
Figure 34
36
