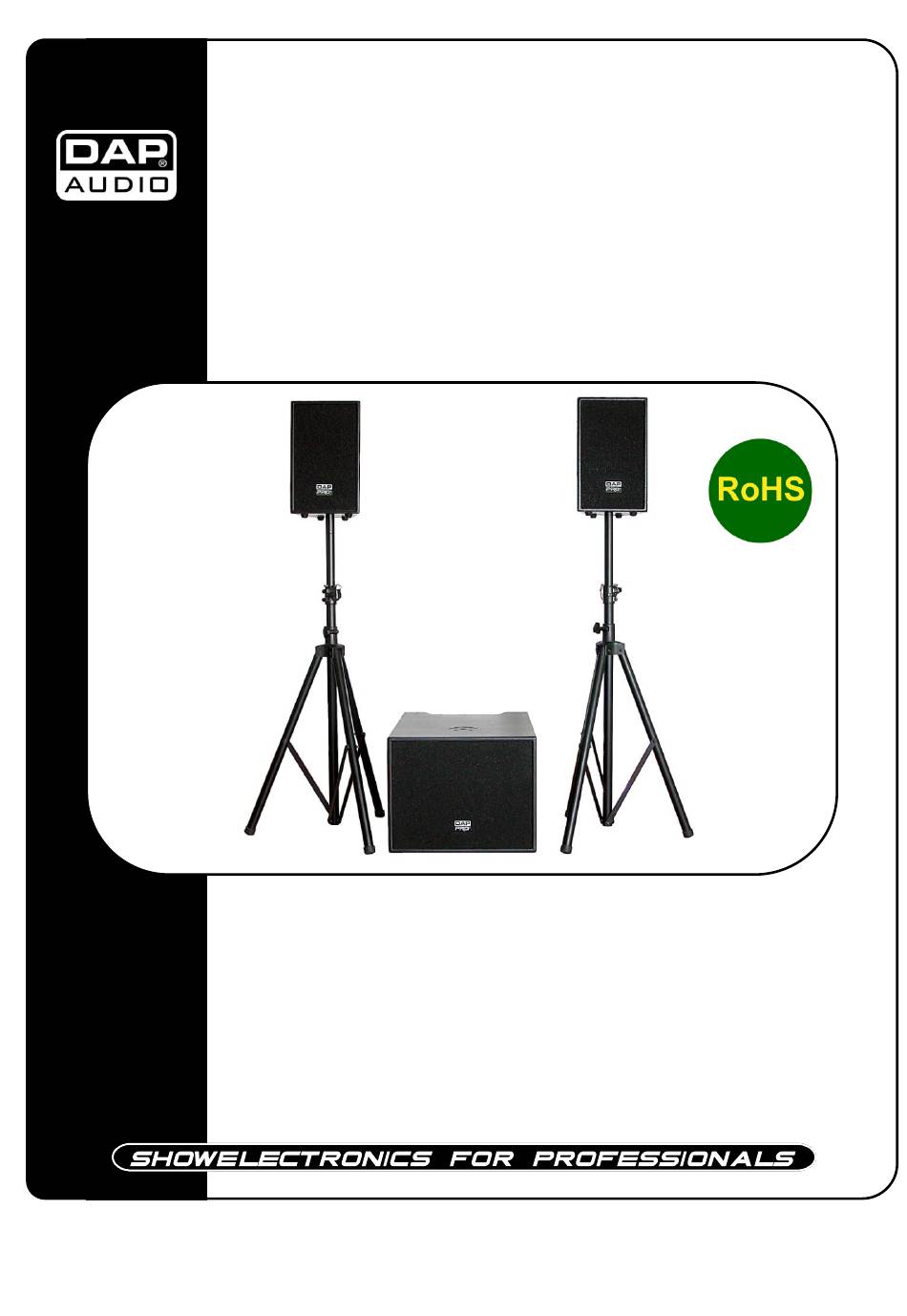

- Page 1 Soundmate 1 MKII ORDERCODE D3220...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio Soundmate 1 brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
-
Page 3: Table Of Contents
DAP Audio Dap Audio Soundmate 1 MKII™ Product Guide Warning.................…...……………..…………………………….………..….. Safety-instructions………………………………………………………………………………………………………… Operating Determinations.……………………………………………………………………………………………… Description................…...………………………………………….………..…. Features and Overview ………………………………...….……………….………….……………………….………. Backside…………………………………………………...…...….……………….…………………...….……………… Set Up and Operation............................... Connection Cables......…........………..………….…….………….………………. Maintenance...................………..………….…….………………………..Replacing the Fuse..............…………………….……………………………… Troubleshooting................………………….………………….………………... Product Specifications..............……………….…….………………………………... -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 Do not connect (parallel or series) an amplifier output with any other amplifier output. Only use system indoor, avoid contact with water or other liquids. Avoid flames and do not put close to flammable liquids or gases. Always disconnect power from the mains, when system is not used. Only handle the power-cord by the plug.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 7: Description

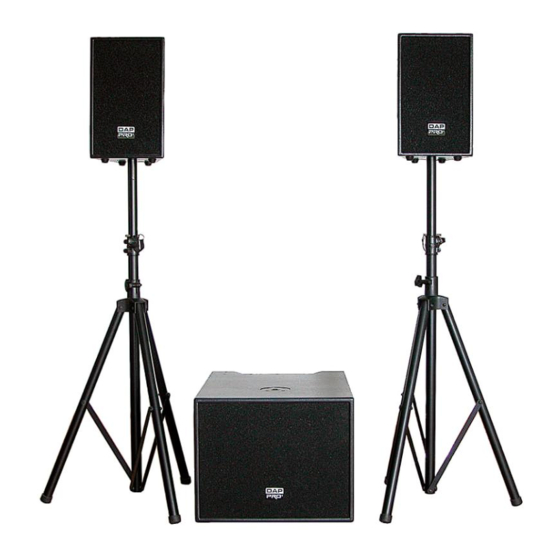

Description of the device Features SoundMate Active 1 MKII is a fullrange active system with : • 1 Bass and 2 satellite amplifiers (total 660W) • 1 subwoofer 15” with 3" voice coil • 2 mid/high (fullrange) satellites with 8" high efficiency mid speaker with 1.375" voice coil. •... -
Page 8: Set Up And Operation
Set Up and Operation The new Soundmate 2 MKII is a further development of the immense popular Soundmate 1, which became a much used system among entertainers and musicians. The Soundmate 2 MKII has the same critical user-specs as the Soundmate 2, namely: compact, yet powerful, plug-and-play, roadproof and of course a neutral sound with an extra bass-punch. - Page 9 Gain (12+14) This allows you to adjust the audio level. Power LED (15) Lights if the Power is on. Sub Limiter LED (16) Lights if the Subwoofer Limiter circuit is active. - Green LED: Signal - Orange LED: Soft Limit - Red LED: Hard Limit Subwoofer Level (17) This allows you to adjust the Subwoofer level.
-
Page 10: Connection Cables
Connection Cables Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check that your cables are in good condition, that they are correctly wired and that all their contacts are in good condition: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 11: Maintenance
Compensation of interference with balanced connections Maintenance DAP Audio SoundMate Active 1 MKII requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 12: Product Specifications
Specifications Inputs Subwoofer Line IN Connector XLR / jack combo socket female Input design electronically unbalanced Input impedance 47 kΩ Sensitivity 0 dB Satellite Speakon socket Outputs Subwoofer Parallel Out Connector: XLR socket male To Satellite out connector: Speakon Amplifiers Power output Subwoofer 400 W / 8 Ω... - Page 13 Included 2 Speakon cables 3 rain / dustcovers Design and product specifications are subject to change without prior notice. Website: www.Dap-audio.info Email: service@highlite.nl...
- Page 14 2008 Dap Audio.
