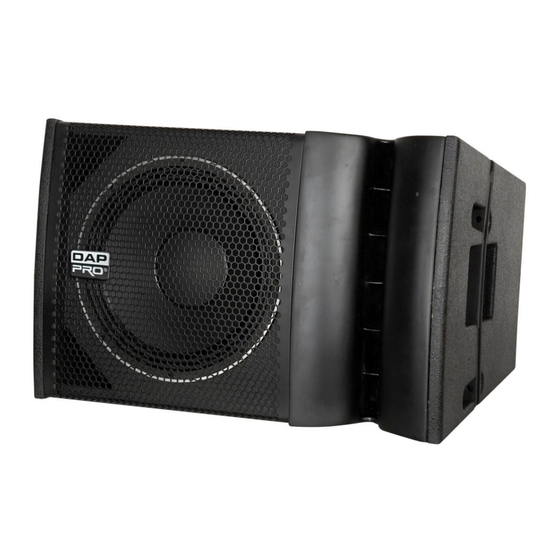

- Page 1 Compact Array ORDERCODE D3710...
- Page 2 For more information: iwant@dap-audio.info You can get some of the best quality, best priced products on the market from DAP Audio. So next time, turn to DAP Audio for more great audio equipment. Always get the best -- with DAP Audio!
-
Page 3: Table Of Contents
DAP Audio DAP Audio Compact Array™ Product Guide Warning..…...................…………………………………………....Safety-instructions………………………………………………………………………………………….…....Operating Determinations…………………………………………………………………………………….... Description..…................……….…………………………………....Features………………………………………………………………………………….………………….…....Overview…………………………………………………………………………………………………..…….... Installation................................Set Up and Operation..............……..…………………………………....Connection Cables......…........………..………….…….………….…....Product Specifications..............……………….…….……………….….... -
Page 4: Warning
WARNING CAUTION! Keep this system away from rain and moisture! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this system have to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
If your DAP Audio device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your DAP Audio dealer for service. -
Page 6: Description
Description of the device Features The Dap Audio Compact Array is a two-way, line-array loudspeaker system intended for use in arrays of up to four enclosures. Array coverage may be adjusted by means of the Mid/ Long throw selector. Backside Fig. -
Page 7: Installation
One or two Compact arrays may be mounted onto either a DAP D8409 Tripod stand or with the DAP D8404 pole over its companion subwoofer the DAP D3701 LB-184 subwoofer. - Page 8 Single Compact Array. A single Compact Array may be used on a tripod Stand (DAP Audio D8409B) or on a pole (DAP Audio D8404) over its companion subwoofer (the DAP Audio (D3701). The use of a subwoofer is recommended for applications requiring more low-frequency power and extension.
- Page 9 Fig. 4 Suspension in permanent installations. For permanent installation a DAP Compact Array stack may be suspended by using the DAP D3715 Mounting Frame (separately available). In this way up to 4 Compact Arrays can be stacked together and suspended.
- Page 10 Installing the Array frame. 1. The array frame is attached to the internal rigging of the Compact Array using the included quick Release pins. Warning: Do not use any substitute for these pins. Place the entire frame on top of the Compact Array and flip up the drop levers (B) found on both sides of the speaker to be received by the mounting frame arms.
-
Page 11: Connection Cables
Connection Cables Take care of the connector cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability, which is always to your advantage. Periodically check that your cables are in good condition, that they are correctly wired and that all their contacts are perfectly efficient: a great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 12: Product Specifications
Product Specifications Woofer: 1X SA-1275NHL High Driver: PA-44M Nominal impedance: 12Ω RMS Power Rating: 400W Program Power Rating: 800W Peak Power Rating: 1200W Input connector: Speakon NL4 Style Connector Full range: pin 1+ & 1- Bi-amp: Low pin 1+ & 1-, High pin 2+ & 2- Frequency response: 60 –... - Page 13 2007 Dap Audio.
