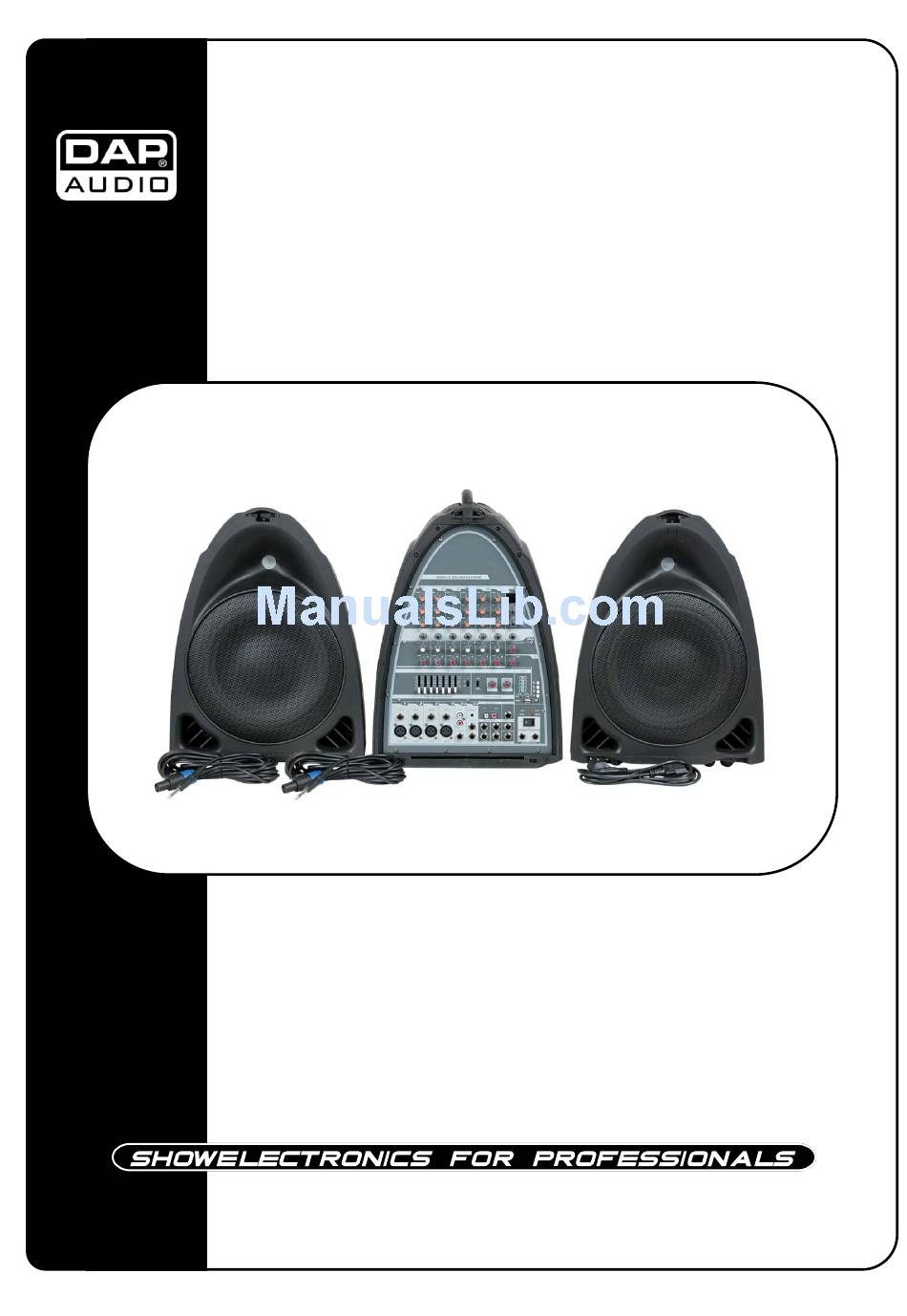

- Page 1 Entertainer Mobile Set Basic ORDERCODE D3208...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
-
Page 3: Table Of Contents
Dap Audio Dap Audio Entertainer Mobile Set Basic™ Product Guide Warning ................................... 2 Unpacking instructions ............................2 Safety-instructions ..............................2 Operating determinations ............................3 Return procedure ..............................4 Claims ..................................4 Description ..................................5 Features ..................................5 Overview ..................................5 Mixer channels ................................ -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • DAP Entertainer Mobile Set Basic • 2x Speaker stand adapter • IEC cable (175cm) •... -
Page 5: Operating Determinations
IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non- observance of this manual or any unauthorized modification to the system. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ... -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 7: Description
Description of the device Features The Entertainer Mobile Set Basic is a truly multifunctional sound system which is ideal for presentations, schools, gyms and even mobile DJs. Due to its sturdy and compact design it can fit in any car and is therefore ideal for many mobile applications. -
Page 8: Mixer Channels
Mixer channels 1 / 2 / 3. Equalizer section (HIGH / MID / LOW) The mixer’s equalizer section allows shaping of the incoming audio signal. Turning the equalizer controls to the right amplifies the frequency range, turning to the left attenuates the signal. -
Page 9: Dsp Section
12. Main stereo/monitor switch The power amplifier can be used in stereo or dual mode. In stereo mode, the system operates as a traditional stereo mixer and power amplifier. In dual mode, the sound of the USB MP3 player and effectbus is routed to the main output only. -
Page 10: Patch Panel
DSP section. 35/37. Speaker output Connect the Entertainer Mobile Set Basic speakers using the supplied Speakon cables. 36. Power switch Do not supply power before the whole system is set up and connected properly. -
Page 11: Usb Mp3 Player
USB player 36. Status LED Shows the status of the USB MP3 port. 37. USB port Use this port to connect your USB stick for playback/recording. Make sure that all MP3’s are located in the root directory. The Entertainer mobile set active will not recognize folders on a USB stick. -
Page 12: Installation
Installation Remove all packing materials from the Entertainer Mobile Set Basic. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. - Page 13 Compensation of interference with balanced connections...
-
Page 14: Maintenance
Maintenance The DAP Entertainer Mobile Set Basic requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 15: Product Specifications
Product Specification Frequency Response： 20 Hz – 20 kHz 1dB (at send out) 45 Hz – 20 kHz -3dB (maximum output of the speaker) Distortion：< 0.05%, 20 Hz – 20 kHz 1dB rated output S/N：> 80dB @ 1W . “1 A” WTD Output Power: 150 W / ch rated power, 8Ω, both channels driven with THD <... - Page 16 2011 Dap Audio.
