- Page 1 Soundmate 2 MKII ORDERCODE D3221...
- Page 2 You can get some of the best quality, best priced products on the market from DAP Audio. So next time, turn to DAP Audio for more great audio equipment. Always get the best -- with DAP Audio !
-
Page 3: Table Of Contents
DAP Audio Dap Audio SoundMate 2 MKII™ Product Guide Warning.................…...……………..…………………………….………..….. Safety-instructions………………………………………………………………………………………………………… Operating Determinations.……………………………………………………………………………………………… Description................…...………………………………………….………..…. Features and Overview ………………………………...….……………….………….……………………….………. Backside…………………………………………………...…...….……………….…………………...….……………… Set Up and Operation............................. Connection Cables......…........………..………….…….………….………………. Maintenance...................………..………….…….………………………..Replacing the Fuse..............…………………….……………………………… Troubleshooting................………………….………………….………………... Product Specifications..............……………….…….………………………………... -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 Do not connect (parallel or series) an amplifier output with any other amplifier output. Only use system indoor, avoid contact with water or other liquids. Avoid flames and do not put close to flammable liquids or gases. Always disconnect power from the mains, when system is not used. Only handle the power-cord by the plug.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS This system is not designed for permanent operation. Consistent operation breaks will ensure that the system will serve you for a long time without defects. If this system is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 7: Description

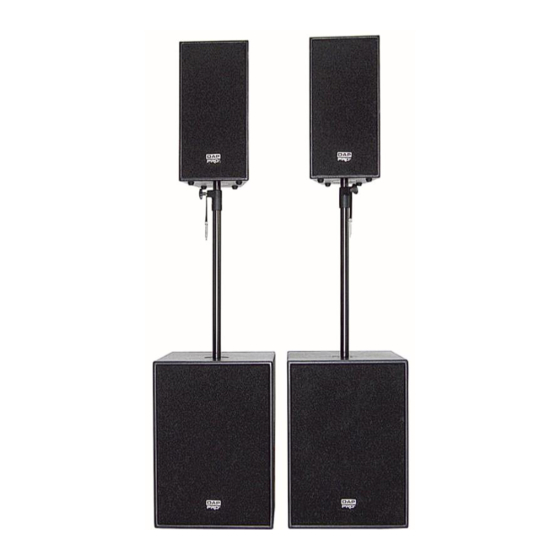

Description of the device Features SoundMate Active 2 MKII is a fullrange active system with : • 2 subwoofers 15” 400 watt • 2 mid/high (fullrange) 1,75” CD horn + 10” satellite speakers 300 Watt. • 2 Speaker cables • 2 distance tubes •... -
Page 8: Set Up And Operation
Set Up and Operation The new SoundMate 2 MKII is a further development of the immense popular Soundmate 2, which became a much used system among entertainers and musicians. The SoundMate 2 MKII has the same critical user-specs as the Soundmate 2, namely: compact, yet powerful, plug-and-play, roadproof and of course a neutral sound with an extra bass-punch. -
Page 9: Connection Cables
Phase Switch (9) Used to inverse the phase of the Satellite output if necessary. Subwoofer Level (10) This allows you to adjust the Subwoofer level. To Satellite (11) This output is used to connect the Satellite Speaker. Cooling Fans (12) Make sure these outlets remain clear to allow unrestricted air flow. -
Page 10: Maintenance
3. If all of the above appears to be O.K., plug the unit in again. 4. If you are unable to determine the cause of the problem, do not open the device, as this may damage the unit and the warranty will become void. 5. Return the device to your Dap Audio dealer. -
Page 11: Product Specifications
Specifications Inputs Subwoofer Line IN Connector XLR / jack combo socket female Input design electronically balanced & floating Input impedance 47 kΩ Sensitivity 0 dB Satellite Speakon socket Outputs Subwoofer Parallel Out Connector: XLR socket male To Satellite out connector: Speakon Active Crossover Crossover Subwoofer / Satellite freq. - Page 12 Max SPL at 1 m (Theoretical): 120 dB Nominal Dispersion (H x V): 90° x 60° Dimensions (W x H x D): 300 x 300 x 610 mm Net Weight: 15.5 kg Included 2 Speakon cables 3 rain / dustcovers Design and product specifications are subject to change without prior notice.
