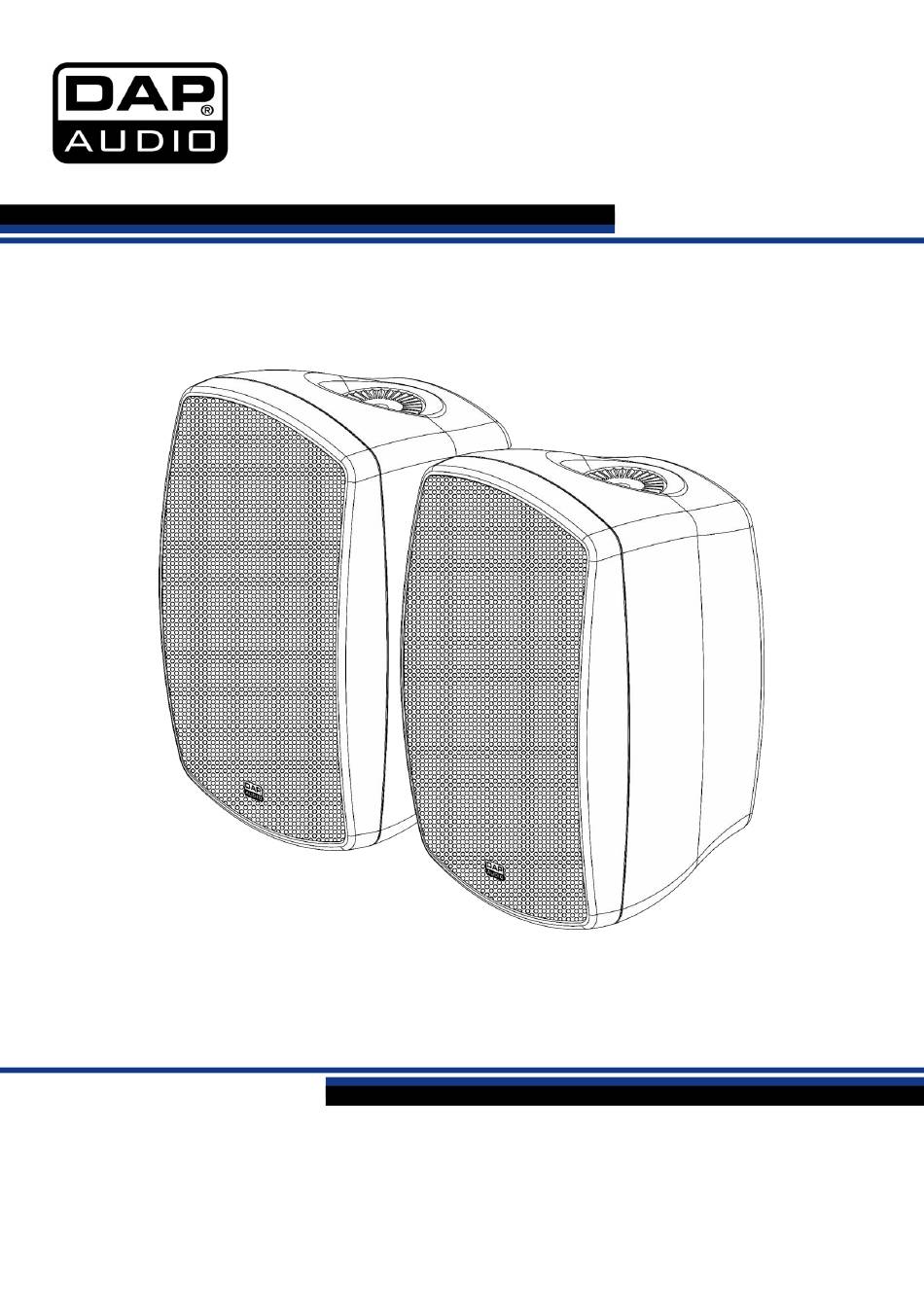

- Page 1 MANUAL ENGLISH EVO 5A Ordercode: D3688 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
EVO 5A Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................3 Return Procedure ................................4 Claims ....................................4 Description of the device ..............................5 Overview ..................................5 Back ....................................6 Installation ................................... 7 Set Up and Operation ............................... 7 Names and Functions ............................... -
Page 3: Warning
Your shipment includes: ● DAP Audio 2-way active speaker system EVO 5A, 2 x 25 W ● C8 power cable (1,2 m) ●... -
Page 4: Operating Determinations
EVO 5A ● Avoid ground loops! Always be sure to connect the power amps and the mixing console to the same electrical circuit to ensure the same phase! ● Avoid installing your equipment very near radio or TV sets, mobile phones, etc., as these can cause RF (radio frequency) interference. -
Page 5: Return Procedure
EVO 5A The EVO 5A can be mounted to a wall or placed on a flat stage floor. Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. -
Page 6: Description Of The Device
EVO 5A Description of the device Features ● Input voltage: 240 V AC, 50/60 Hz ● Speaker system: Active 2-way full range ● Power consumption: 2 x 25 W ● Sensitivity W/m: 89 dB ● LF driver: 5,25” Woofer ●... -
Page 7: Back
EVO 5A Back Fig. 02 01) RCA line connector, unbalanced IN 02) Line connector, balanced IN 03) Bass control 04) Treble control 05) Volume control 06) Power LED indicator 07) Speaker connector OUT 08) Power switch ON/OFF 09) Fuse T1L/250V... -
Page 8: Installation
EVO 5A Installation Remove all packing materials from the EVO 5A. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. -
Page 9: Names And Functions
Maintenance The DAP Audio EVO 5A requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. -
Page 10: Troubleshooting
04) If all appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the EVO 5A, as this may damage the unit and the warranty will become void. -
Page 11: Dimensions
EVO 5A Dimensions Order code: D3688... - Page 12 ©2019 DAP Audio...
