Summary of Contents for DAPAudio DLM-12A

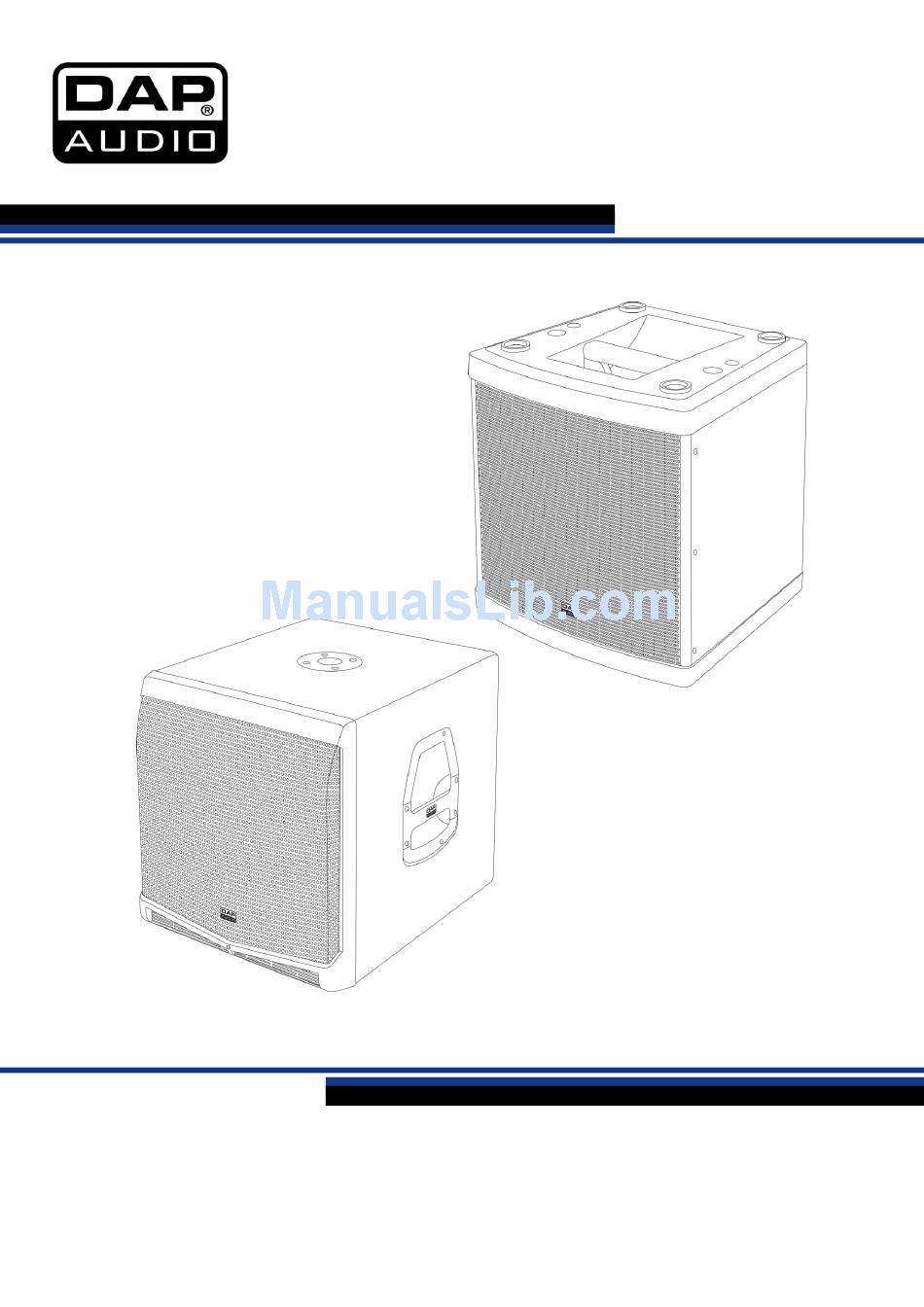

- Page 1 MANUAL ENGLISH DLM-12A / DLM-12SA Ordercode: D3223 / D3224 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Connection with the mains ............................. 4 Return Procedure ................................4 Claims ....................................4 Features ....................................5 Rear Panel DLM-12A ................................. 6 Rear Panel DLM-12SA ............................... 7 Connection Examples ..............................8 Two Active Satellite Speakers ............................. 8 Active, full-range, multiple speakers ......................... 9 Two Active Subwoofers &... -
Page 3: Warning
DLM-12A / DLM-12SA Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 4 DLM-12A / DLM-12SA Do not connect this device to a dimmer pack. Do not drive the inputs with a signal level bigger, than required to drive the equipment to full output. Do not insert objects into air vents.
-
Page 5: Connection With The Mains
DLM-12A / DLM-12SA Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE... -
Page 6: Features
DLM-12A / DLM-12SA Features The DLM series is our new solution for all entertainers, who need a very lightweight and compact speaker system, which is very rugged and road proof. Due to the efficient Class-D power amplifier and built-in DSP protection system, it is almost impossible to deform your sound when used normally. -
Page 7: Rear Panel Dlm-12A
DLM-12A / DLM-12SA Rear Panel DLM-12A On/Off main power switch AC power socket with main fuse Volume control (Input 1) Line/Mic switch (Channel input 1) Input 1 (XLR - 1/4” combo connector) Volume control (Input 2) Input 2 (XLR - 1/4” combo connector): INPUT 2 accepts Hi-Z sources (such as guitars) via the TRS 1/4"... -
Page 8: Rear Panel Dlm-12Sa
DLM-12A / DLM-12SA Rear Panel DLM-12SA On/Off main power switch AC power socket with main fuse Normal/Reverse phase switch (Polarity) Stereo/Mono switch (Full range) Input channel A (XLR) Highpass output channel A (XLR) Fullrange output channel A (XLR) Input channel B (XLR) -
Page 9: Connection Examples
DLM-12A / DLM-12SA Connection Examples Two Active Satellite Speakers 1) Make your initial connections with all the equipment powered off and ensure that all the main volume controls are turned completely. 2) Connect one side of the signal cable at your audio mixer into OUTPUT LEFT/RIGHT and the other side of the cable into the LINE INPUT (Combo) of your active satellite speakers. -
Page 10: Active, Full-Range, Multiple Speakers
DLM-12A / DLM-12SA Active, full-range, multiple speakers This solution is particularly flexible when you have a large stage or a fixed installation where you want to send the same signal to different zones like in a Bar, Pub, Restaurant, Church, etc. Each DLM cabinet has its own volume control so you can adjust different volumes in different zones. -
Page 11: Two Active Subwoofers & Two Active Satellite Speakers
DLM-12A / DLM-12SA Two Active Subwoofers & Two Active Satellite Speakers Make your initial connections with all the equipment powered off and ensure that all the main volume controls are turned completely. Connect one side of the signal cable at your audio mixer into OUTPUT LEFT/RIGHT and the other side of the cable into the Left/Mono input of your active DLM subwoofers. -
Page 12: One Active Subwoofer & Two Active Satellite Speakers
DLM-12A / DLM-12SA One Active Subwoofer & Two Active Satellite Speakers 1) Make your initial connections with all the equipment powered off and ensure that all the main volume controls are turned completely. 2) Connect one side of signal cable at your mixer into Main Output Left (with II4"Jack or XLR) and the other side of the cable into the Input A of the DLM active subwoofer. -
Page 13: Frequency Response Diagram
DLM-12A / DLM-12SA Frequency Response Diagram Ordercode: D3223 / D3224... -
Page 14: Connection Cables
DLM-12A / DLM-12SA Connection Cables Take care of your cables, always holding them by the connectors and avoiding knots and twists when coiling them: This gives the advantage of increasing their life and reliability. Periodically check your cables. A great number of problems (faulty contacts, ground hum, discharges, etc.) are caused entirely by using unsuitable or faulty cables. -
Page 15: Technical Specifications
DLM-12A / DLM-12SA Technical Specifications DLM-12A System: 2-way Active Speaker system Coverage: 90° conical Transducer: 12" Woofer, 2.5" voice coil Driver: 1" Exit Compression CELESTION Driver, 1.75" Voice Coil Active Crossover: 1.85kHz-DSP Processed with 24dB slope Digital Presets: NORMAL / USER... -
Page 16: Dimensions
Dimensions DLM-12A DLM-12SA ©2014 DAP Audio...
