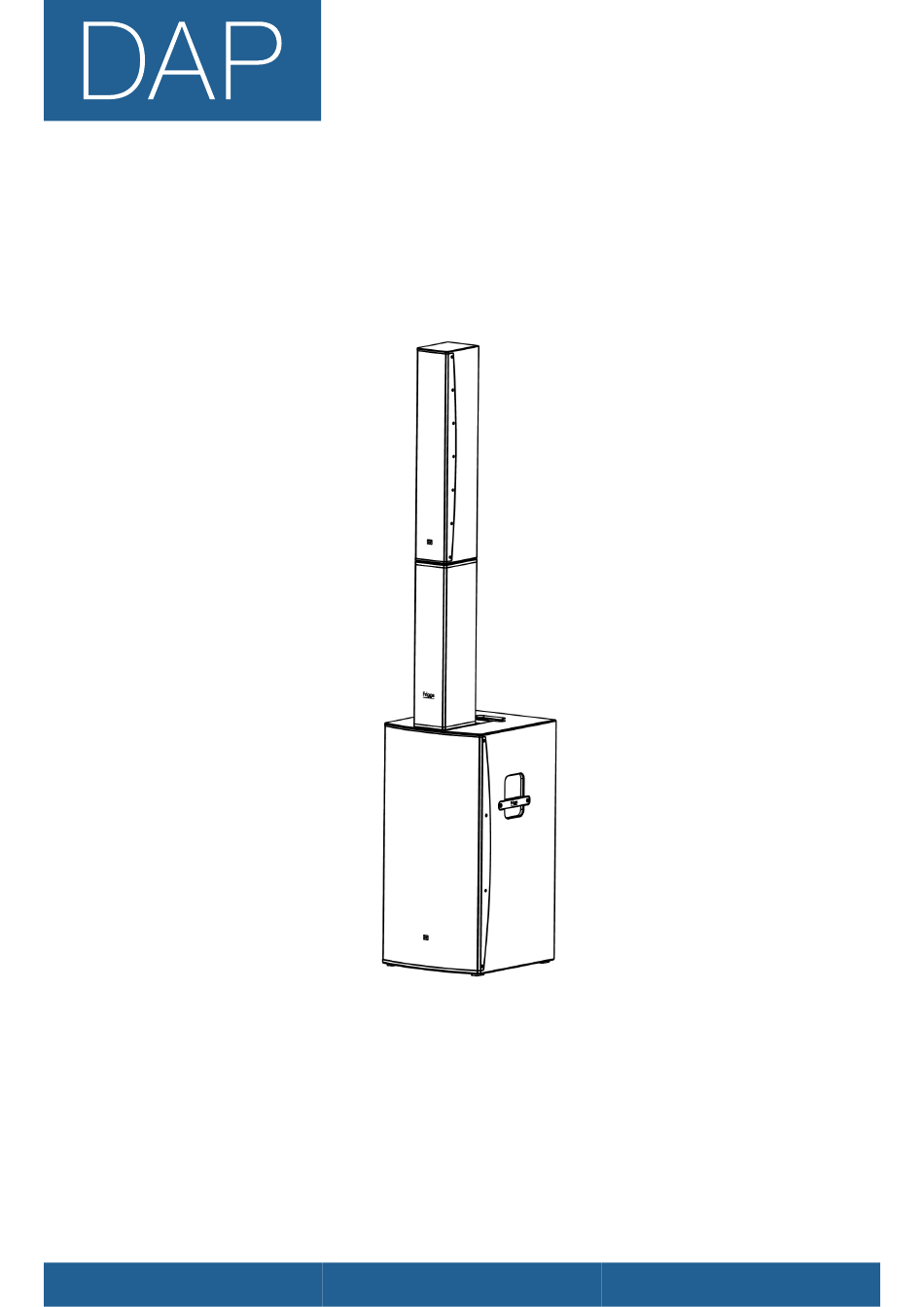

- Page 1 USER MANUAL ENGLISH V1.0 FRIGGA Product code: D3880 Single active column PA system (Black)
- Page 2 FRIGGA Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
4.4. Installation of Frigga Support Panel .................... - Page 4 FRIGGA 11. Approval ............................
-
Page 5: Introduction
The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. After unpacking, check the contents of the boxes. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: The DAP FRIGGA set: • • Subwoofer including amplifier module •... -
Page 6: Intended Use
FRIGGA 1.2. Intended Use This device is intended for professional use as a speaker system. It can be installed only indoors. This device is not suitable for households. Any other use, not mentioned under intended use, is regarded as non-intended and incorrect use. -
Page 7: Symbols And Signal Words
FRIGGA 1.5. Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in death or DANGER serious injury. -
Page 8: Safety
FRIGGA Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. 2.1. Warnings and Safety Instructions... - Page 9 FRIGGA WARNING Stability hazard The device may fall if it is not mounted according to the instructions in this user manual, causing personal injury and material damage. If stacked installation is used: • • Make sure that the device is placed on a flat and level surface.
-
Page 10: Requirements For The User
FRIGGA Attention Before each use, examine the device visually for any defects. Make sure that: • • There are no deformations on housings, fixings and installation points. • • The power cables are not damaged and do not show any material fatigue. -
Page 11: Description Of The Device
Description of the Device The DAP FRIGGA is an active PA speaker system with a subwoofer and column speaker. It offers three inputs: XLR microphone input with gain and clip indicator, XLR line input with passthrough, and Bluetooth with TWS support. -
Page 12: Front View
FRIGGA 3.2. Front View Figure 3 01) Opening for mounting pole (wooden spacer) 04) Speaker output to column 02) Threaded mounting opening 05) 2 carrying handles 03) Top carrying handle Product code: D3880... -
Page 13: Back View
FRIGGA 3.3. Back View Figure 4 06) Speaker output to column 15) Power Pro connector IN (blue) 07) Status LED indicators 16) 3-pin XLR male connector Line OUT 08) Master level control 17) Combined (3-pin XLR/6,3 mm jack) line-level 09) SUB level control connector IN... -
Page 14: Bottom View
FRIGGA 3.4. Bottom View Figure 5 23) 2 openings for butterfly latches 25) Opening for mounting pole (column speaker) 24) Carrying handle 26) Opening for mounting pole (wooden spacer) Product code: D3880... -
Page 15: Product Specifications
FRIGGA 3.5. Product Specifications Model: FRIGGA Inputs: Mono inputs 2 Mono input connector 3-pin XLR Outputs: Power amplifier RMS output 1000 W Power amplifier peak output 2000 W Top cabinet high driver power 250 W Top cabinet low driver power 250 W Subwoofer power 500 W... - Page 16 FRIGGA Mechanical Specifications: Top cabinet height 765 mm Top cabinet width 135 mm Top cabinet depth 200 mm Subwoofer height 865 mm Subwoofer width 430 mm Subwoofer depth 485 mm Material Plywood Top cabinet weight 8 kg Subwoofer weight 25 kg Color Black Thermal Specifications: Maximum ambient temperature 40 °C...
-
Page 17: Dimensions
FRIGGA 3.6. Dimensions Figure 6 Product code: D3880... -
Page 18: Dimensions Of Stacks
You can additionally purchase the following accessories: • • D3877 FRIGGA support panel • • D3878 Transport Cover for Frigga Sub • • D3879 Carrying Bag for Frigga Tops for two pcs columns Contact your Highlite International dealer for more information. Product code: D3880... -
Page 19: Installation
FRIGGA Installation 4.1. Safety Instructions for Installation WARNING Stability hazard The device may fall if it is not mounted according to the instructions in this user manual, causing personal injury and material damage. If stacked installation is used: • •... -
Page 20: Speaker Installation
Note: The The FRIGGA is tall and narrow and can be unstable when used as a stacked set. It is recommended to use the Frigga support panel when using as a stacked set (see 3.8. Optional Accessories on page 17). -
Page 21: Stacked Installation Without Spacer
To install the Frigga support panel, follow the steps below: 01) Place the subwoofer speaker (E) on its back. 02) Line up the butterfly latches on the Frigga Support Panel with the 2 openings for butterfly latches (23) on the subwoofer speaker (E). -
Page 22: Setup
Connecting the Column Speaker to the Subwoofer Speaker Attention • • Do not connect other speaker systems to the device, as they may get damaged. The FRIGGA set is not compatible with other speaker systems. • • Do not connect more than one column speaker to one subwoofer speaker. If you connect more than one column speaker, the built-in amp safety will shut down the amp. -
Page 23: Connecting Multiple Devices
FRIGGA 5.3. Connecting Multiple Devices You can connect 2 or more FRIGGA sets in a daisy-chain. 01) Use a 3-pin XLR cable to connect the 3-pin XLR male connector Mix OUT (12) of the 1 subwoofer speaker (E) to the combined line-level connector IN (17) of the 2 subwoofer speaker (E). -
Page 24: Setup With An Audio Mixer
FRIGGA 5.4. Setup with an Audio Mixer You can use the FRIGGA in a setup with an audio mixer. To complete the setup, follow the steps below: 01) Make sure that all devices are switched off. 02) Connect the subwoofer speaker(s) (E) to the column speaker(s) (D) (see 5.2. -
Page 25: Setup Without An Audio Mixer
5.5. Setup without an Audio Mixer You can use the FRIGGA in a setup without an audio mixer and connect it to a 2 subwoofer speaker (E). In this setup the device functions as a mixer, combining all input signals. -
Page 26: Setup With A Streaming Source Device
5.6. Setup with a Streaming Source Device The FRIGGA has an integrated Bluetooth receiver with TWS (True Wireless Stereo). You can pair the FRIGGA with a personal computer or a smartphone with Bluetooth (a streaming source device) to stream sound. -
Page 27: Tws Mode
FRIGGA 5.6.2. TWS Mode In TWS (True Wireless Stereo) mode 1 subwoofer speaker (E) is paired with the streaming source device and a subwoofer speaker (E) is linked to the 1 subwoofer speaker (E). The 1 subwoofer speaker (E), connected... -
Page 28: Connecting To Power Supply
• • Do not link more devices on one power link than the maximum recommended number. Maximum recommended number of devices: • • at 100–120 V: 2 devices FRIGGA • • at 200–240 V: 2 devices FRIGGA Product code: D3880... -
Page 29: Operation
Bluetooth (a streaming source device) to stream sound. You can also link 2 FRIGGA devices to use them in TWS mode. Refer to the setup instructions for streaming devices (see 5.6. Setup with a Streaming Source Device on page 25). -
Page 30: Linking To Another Device
6.3.2. Linking to Another Device You can link 2 FRIGGA devices via Bluetooth to stream sound in TWS (True Wireless Stereo) mode. Press and hold down the Bluetooth stereo button (11) until the LED indicator of the Bluetooth stereo button (11) starts flashing to link the devices. -
Page 31: Troubleshooting
FRIGGA Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. -
Page 32: Maintenance
FRIGGA Maintenance 8.1. Safety Instructions for Maintenance DANGER Electric shock caused by dangerous voltage inside Disconnect power supply before servicing or cleaning. 8.2. Preventive Maintenance Attention Before use, examine the device visually for any defects. Make sure that: • •... -
Page 33: Deinstallation, Transportation And Storage
Approval Hereby, Highlite International declares that the device FRIGGA, product code D3880, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available on the respective product page on the website of Highlite International (www.highlite.com). - Page 34 FRIGGA Product code: D3880...
- Page 35 FRIGGA Product code: D3880...
- Page 36 DAP is a brand of Highlite International B.V.
