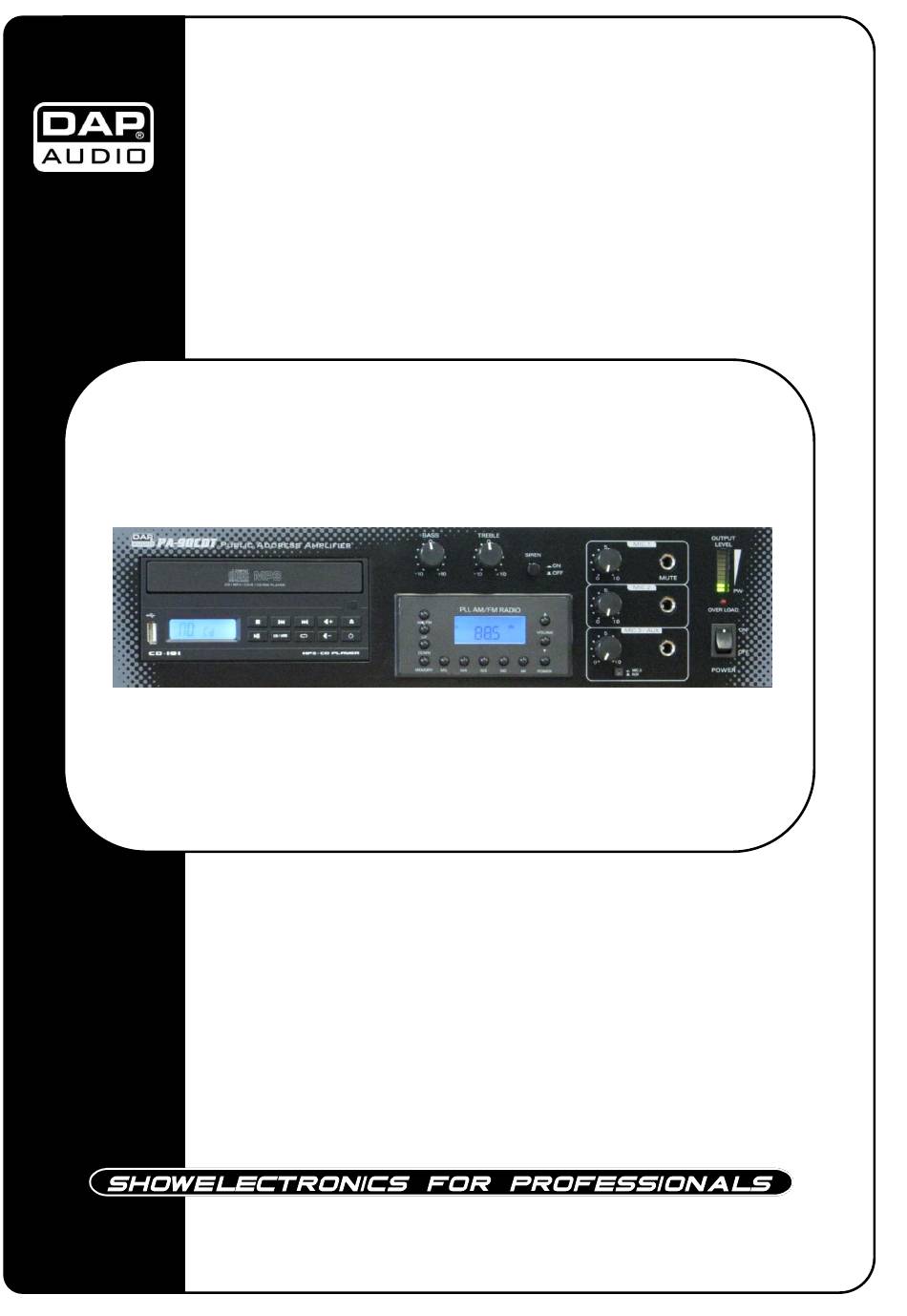

- Page 1 PA90CDT ORDERCODE D6110...
- Page 2 Congratulations! You have bought a great, innovative product from DAP Audio. The DAP Audio PA90CDT brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated show, this product provides the effect you need. You can rely on DAP Audio, for more excellent audio products. We design and manufacture professional audio equipment for the entertainment industry.
-
Page 3: Table Of Contents
DAP Audio DAP Audio PA90CDT Product Guide Warning ..................................Safety-instructions..............................Operating Determinations............................ Return Procedure..............................Claims..................................Description................................... Features.................................. Overview Front panel............................Overview Back panel............................Overview Tuner..............................Overview CD/USB- player............................. Operation..................................Connecting inputs..............................Operating the tuner.............................. Operating the CD/USB player..........................Connecting outputs.............................. Connection Cables.............................. -
Page 4: Warning
WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 5: Operating Determinations
Never remove warning or informative labels from the unit. Never use anything to cover the ground contact. Never leave any cables lying around. Do not insert objects into air vents. Do not connect this system to a dimmerpack. Do not switch the system on and off in short intervals, as this would reduce the system’s life. Do not open the device and do not modify the device. -
Page 6: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU (including UK) North America From April 2004 Brown Black Phase Blue White Neutral Green/Yellow... -
Page 7: Description

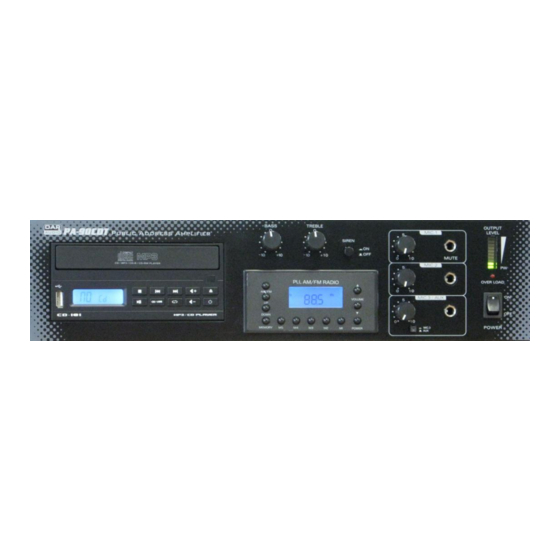

Description of the device Features The PA90CDT is a professional high power Public Adress Amplifier: • 3 independent channels • bass/ treble tone control • LED output level meter with overload indicator • 2 unbalanced inputs for Mic with level control •... -
Page 8: Overview Back Panel
Backpanel Fig. 2 17. AC fuse T1,6A Replace the fuse only with a fuse with the same specifications. 18. DC fuse T10A Replace the fuse only with a fuse with the same specifications. 19. 4 Ω terminal Connect this terminal to the + terminal of your 4 Ω speaker(s). In case of using several speakers make sure that the total speaker load is 4 Ω. -
Page 9: Overview Tuner
Tuner Fig. 3 31. AM/FM radio selection button (AM/FM) Use this button to select the desired band. You can change the band between AM and FM, when you press this button. 32. Tuning Up button Use this button to select the desired station. If the UP button is pressed for longer than 1.5 seconds, the AM frequency automatically increases with 9Khz intervals, while the FM frequency automatically increases with 0.1Mhz intervals, till the radio is tuned in. -
Page 10: Overview Cd/Usb- Player
CD player Fig. 4 40. CD holder STOP Press this button to stop playback. B.SKIP/REW Use this button for skipping or searching backwards. F.SKIP/FF Use this button for skipping or searching forward. 44. Volume + Press this button to increase the output level of the CD/ USB- player OPEN/CLOSE press this button to open/close the disc holder 46. -
Page 11: Operation
Operation PA90CDT Installation Remove all packing materials. Check that all foam and plastic padding has been removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. -
Page 12: Operating The Cd/Usb Player
Operating the CD/USB Player 1. Opening and closing of the disc holder • Turn the unit’s power on. Press the OPEN/CLOSE-button to open the disc holder. • The disc holder cannot be opened during playback, to prevent playback from being interrupted if the OPEN/CLOSE button is pressed accidentally. - Page 13 7. Repeat/ Random play 1. Press the Repeat/ Random button once to repeat the current track. 2. Press the Repeat/ Random button again to repeat the whole disc. 3. Press the Repeat/ Random button again to start random play. 4. Press the Repeat/ Random button a fourth time, to exit the Repeat/ Random Mode. 8.
-
Page 14: Connecting Outputs
Before switching off the power When you have finished using the CD player, before switching off the power, be sure that the disc holder has been closed with the OPEN/CLOSE button. CAUTION: Do not forcibly close the disc holder when the power is off. CD’s 1. -
Page 15: Connection Cables
In a low impedance system, the total speakerload should always match the amplifier impedance This to avoid overloading the amplifier. The total speaker power should be at least the power of the amplifier to avoid damage to the speakers. High impedance outputs When using the 25V, the 70V or the 100V outputs, note that all speakers should be wired in parallel. -
Page 16: Maintenance
Maintenance DAP Audio PA90CDT requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Do not use alcohol or solvents. Keep connections clean. -
Page 17: Product Specifications
Product Specifications Model: DAP Audio PA90CDT Power supply: 230 VAC, 24VDC Fuse: 230V: 1.6AT 24V: 10AT Inputs sensitivity Mic: -52dBV UnBalanced Aux: -20dBV Unbalanced Frequency response: 50Hz - 15kHz Tone control: Treble: ±10dB at 10kHz Bass: ±10dB 100Hz THD: ≤ 0.5%(1KHz-nominal power capacity) Signal / noise ratio: Mic: >... - Page 18 2009 Dap Audio.
