- Page 1 USER MANUAL ENGLISH PA-380TU 80W 100V Amplifier Product code: D6170 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
- Page 2 PA-380TU 80W 100V Amplifier Preface Thank you for purchasing this DAP product. The purpose of this user manual is to provide instructions for the correct and safe use of this product. Keep the user manual for future reference as it is an integral part of the product. The user manual shall be stored at an easily accessible location.
-
Page 3: Table Of Contents
PA-380TU 80W 100V Amplifier Table of contents Introduction ................................4 Before Using the Product ..........................4 Intended Use ............................... 4 Text Conventions ..............................4 Symbols and Signal Words ..........................5 Symbols on the Information Label ........................5 Safety ..................................6 Warnings and Safety Instructions ........................ - Page 4 PA-380TU 80W 100V Amplifier System ...............................24 Backlight ..............................24 Language ............................24 Factory Reset ............................25 Software Version ..........................25 Setting Bass Level .............................25 Setting Treble Level ............................25 Setting Master Volume ............................25 Setting Microphone Volume ..........................25 Setting Aux 1 Volume ..........................25 Setting Media Player/Aux Volume ......................25 Setting Device Volume ..........................25...
-
Page 5: Introduction
After unpacking, check the contents of the box. If any parts are missing or damaged, contact your Highlite International dealer. Your shipment includes: ● DAP PA-380TU 80W 100V Amplifier with a Schuko power cable (1 m) ● IR remote control ●... -
Page 6: Symbols And Signal Words
PA-380TU 80W 100V Amplifier Symbols and Signal Words Safety notes and warnings are indicated throughout the user manual by safety signs. Always follow the instructions provided in this user manual. Indicates an imminently hazardous situation which, if not avoided, will result in DANGER death or serious injury. -
Page 7: Safety
PA-380TU 80W 100V Amplifier Safety Important Read and follow the instructions in this user manual before installing, operating or servicing this product. The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual. Warnings and Safety Instructions... - Page 8 PA-380TU 80W 100V Amplifier Attention Power supply ● Before connecting the device to the power supply, make sure that the current, voltage and frequency match the input voltage, current and frequency specified on the information label on the device. ●...
-
Page 9: Requirements For The User
PA-380TU 80W 100V Amplifier Requirements for the User This product may be used by ordinary persons. Maintenance and installation may be carried by ordinary persons. Service shall be carried out only by instructed or skilled persons. Contact your Highlite International dealer for more information. -
Page 10: Description Of The Device

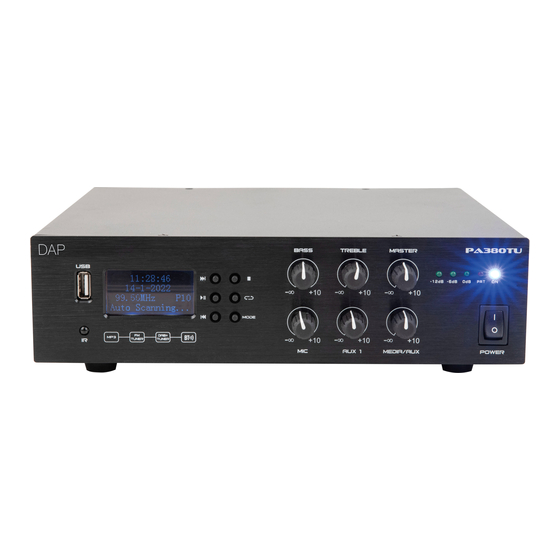

PA-380TU 80W 100V Amplifier Description of the Device The PA-380TU is a compact 80 W/100 V amplifier with a media player. It supports multiple (wireless) media sources, such as DAB+ or FM radio. It can be connected to a PC/laptop, smartphone, tablet, CD/DVD player or a TV. -
Page 11: Product Specifications
PA-380TU 80W 100V Amplifier Product Specifications Model: PA-380TU 80W 100V Amplifier Electrical: Input voltage: 220–240 V AC, 50 Hz Power consumption: 100 W Fuse: F2,0 A/250 V Playback: Supported audio files: WAV, FLAC, MP3 USB flash drive max. capacity: < 32 GB, FAT32-formatted... -
Page 12: Dimensions
Attention Connect all data cables before supplying power. Disconnect power supply before connecting or disconnecting data cables. The PA-380TU can be operated manually or with an infrared (IR) remote control. Safety Instructions for Installation Attention Make sure there is enough space for ventilation around the device. -
Page 13: Connecting To Power Supply
Switch on the input devices (e.g. audio mixer, CD player). Switch on the PA-380TU. See 4.5.3. Switching On/Off on page 14 for more information. Set your preferred language and adjust other settings. See 5.5. Settings Menu on pages 22–25 for more information. -
Page 14: Setup Example
PA-380TU 80W 100V Amplifier Setup Example It is allowed to connect conventional or 100 V speakers to the device. Attention Speaker Loading Before connecting the devices to the power supply, make sure that the total load of all connected speakers is below the maximum rating of the amplifier. If the total load is higher, it may cause damage to the amplifier and to the speakers. -
Page 15: Connecting Audio Devices
(18) and 6,3 mm jack microphone connector IN (16). Note: To avoid interference, turn the PA-380TU off when connecting devices. Connect the RCA analog line-level connectors OUT (19) to audio devices such as, an additional amplifier, a mixer, a console, etc. -
Page 16: Operation
PA-380TU 80W 100V Amplifier Operation Safety Instructions for Operation Attention This device must be used only for the purposes it is designed for. This device is intended for professional use as an amplifier with a media player. It is suitable only for indoor installation. -
Page 17: Operation Modes
PA-380TU 80W 100V Amplifier Operation Modes The device can be operated in the following operation modes: ● See 5.4.1. FM Mode ● DAB+: See 5.4.2. DAB+ Mode ● Bluetooth: See 5.4.3. Bluetooth Mode ● USB: See 5.4.4. USB Mode ●... -
Page 18: Browsing Through Radio Stations
PA-380TU 80W 100V Amplifier Browsing Through Radio Stations In this menu you can browse through the saved FM presets. Press the REPEAT button (E). The display shows: Press the FORWARD/VOLUME + button (B) and the BACKWARD/VOLUME – button (G) to select one of the saved FM presets. -
Page 19: Dab+ Mode
PA-380TU 80W 100V Amplifier DAB+ Mode In this menu you can search for DAB+ radio stations, browse through them and listen to them. If needed, you can save selected radio stations as presets, to be able to access them easily. -
Page 20: Saving Presets
PA-380TU 80W 100V Amplifier Saving Presets If you want to listen to only a few DAB+ radio stations, you can save them as presets, for easy access. The device can store up to 30 DAB+ presets. Press the FORWARD/VOLUME + button (B) and the BACKWARD/VOLUME – button (G) to select one of the found DAB+ radio stations. -
Page 21: Viewing Radio Station Information
In this menu you can stream Bluetooth signals from your mobile devices (smartphones, tablets, notebooks, etc.). The display shows: For this operation mode to work, you need to pair your mobile device and the PA-380TU via Bluetooth. Attention Bluetooth can be used only for receiving of wireless audio signals. -
Page 22: Usb Mode
PA-380TU 80W 100V Amplifier USB Mode In this menu you can play music files from a USB flash drive. The display shows: Insert a USB flash drive into the USB input connector (01). The device will automatically read the WAV, FLAC or MP3 files from the USB flash drive. -
Page 23: Playback Modes
PA-380TU 80W 100V Amplifier Playback Modes You can decide how music files will be played. Repeatedly press the REPEAT button (E) to select one of the 4 playback modes. ● ONE: The device plays only one file. ● FLD: The device plays only one folder. -
Page 24: Audio Setting
PA-380TU 80W 100V Amplifier Audio Setting In this submenu you can adjust the FM audio settings. Press the FORWARD/VOLUME + button (B) and the BACKWARD/VOLUME – button (G) to select one of the 2 options: ● FORCED MONO: The device will use one channel to convert a signal to sound. -
Page 25: Prune
PA-380TU 80W 100V Amplifier Prune In this submenu you can remove DAB+ radio stations that do not transmit anymore or changed frequency. Press the FORWARD/VOLUME + button (B) and the BACKWARD/VOLUME – button (G) to select YES or Press the PLAY/PAUSE button (D) to confirm. -
Page 26: Factory Reset
PA-380TU 80W 100V Amplifier Factory Reset In this submenu you can restore the default factory settings. Press the FORWARD/VOLUME + button (B) and the BACKWARD/VOLUME – button (G) to select YES or Press the PLAY/PAUSE button (D) to confirm. Software Version In this submenu you can view the currently installed software version. -
Page 27: Remote Control
PA-380TU 80W 100V Amplifier Remote Control The device can be controlled with an IR remote control. The remote control is included in the delivery. DANGER Do not ingest batteries, chemical burn hazard The remote control accepts 2 x AAA batteries. If the batteries are swallowed, they can cause severe internal burns in just 2 hours which can lead to death. -
Page 28: Remote Control Functions
PA-380TU 80W 100V Amplifier Remote Control Functions Button Description Function On/Off Turns stand-by mode on/off Toggle mode Toggle control modes ● Press to select presets (FM/DAB+) ● Press and hold down for 2 seconds to save presets (FM/DAB+) ● Press to stop playback (Bluetooth/USB) ●... -
Page 29: Troubleshooting
PA-380TU 80W 100V Amplifier Troubleshooting This troubleshooting guide contains solutions to problems which can be carried out by an ordinary person. The device does not contain user-serviceable parts. Unauthorized modifications to the device will render the warranty void. Such modifications may result in injuries and material damage. Refer servicing to instructed or skilled persons. -
Page 30: Basic Cleaning Instructions
PA-380TU 80W 100V Amplifier Basic Cleaning Instructions To clean the device, follow the steps below: Disconnect the device from the electrical power supply. Allow the device to cool down for 5 minutes. 03) Clean the device with a soft, lint-free cloth. -
Page 31: Disposal
Approval Hereby, Highlite International declares that the device PA-380TU, product code D6170, is in compliance with Directive 2014/53/EU (RED – Radio Equipment Directive). The full text of the EU declaration of conformity is available at the respective product page on the website of Highlite International (www.highlite.com). - Page 32 ©2022 DAP...
