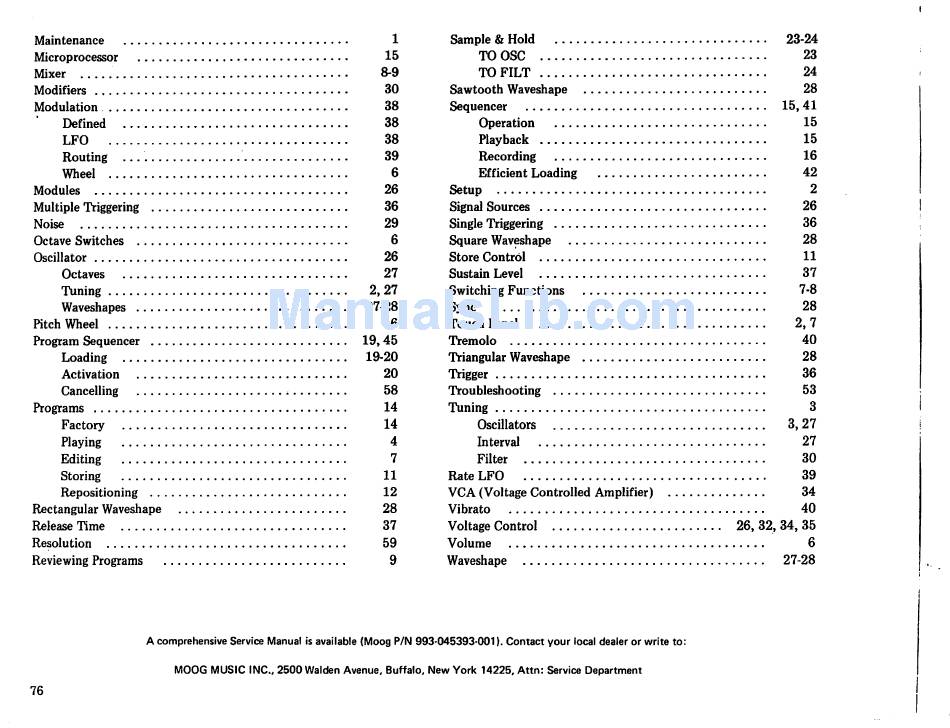

Moog THE SOURCE Owner's Manual page 79

Maintenance 1
Microprocessor 15
Mixer 8-9
Modifiers 30
Modulation 38
Defined 38
LFO 38
Routing 39
Wheel 6
Modules 26
Multiple Triggering 36
Noise 29
Octave Switches 6
Oscillator 26
Octaves 27
Tuning 2, 27
Waveshapes 27-28
Pitch Wheel 6
Program Sequencer 19,45
Loading 19-20
Activation 20
Cancelling , 58
Programs 14
Factory 14
Playing 4
Editing 7
Storing 11
Repositioning 12
Rectangular Waveshape 28
Release Time 37
Resolution 59
Reviewing Programs 9
Sample & Hold 23-24
TO OSC 23
TO FILT 24
Sawtooth Waveshape 28
Sequencer 15,41
Operation 15
Playback 15
Recording 16
Efficient Loading 42
Setup 2
Signal Sources 26
Single Triggering 36
Square Waveshape 28
Store Control 11
Sustain Level 37
Switching Functions 7-8
Sync 28
Touch Panel 2,7
Tremolo 40
Triangular Waveshape 28
Trigger 36
Troubleshooting 53
Tuning 3
Oscillators 3,27
Interval 27
Filter 30
Rate LFO 39
VCA (Voltage Controlled Amplifier) 34
Vibrato 40
Voltage Control 26, 32, 34, 35
Volume 6
Waveshape 27-28
A comprehensive Service Manual is available (Moog P/N 993-045393-001). Contact your local dealer or write to:
MOOG MUSIC INC., 2500 Walden Avenue, Buffalo, New York 14225, Attn: Service Department
