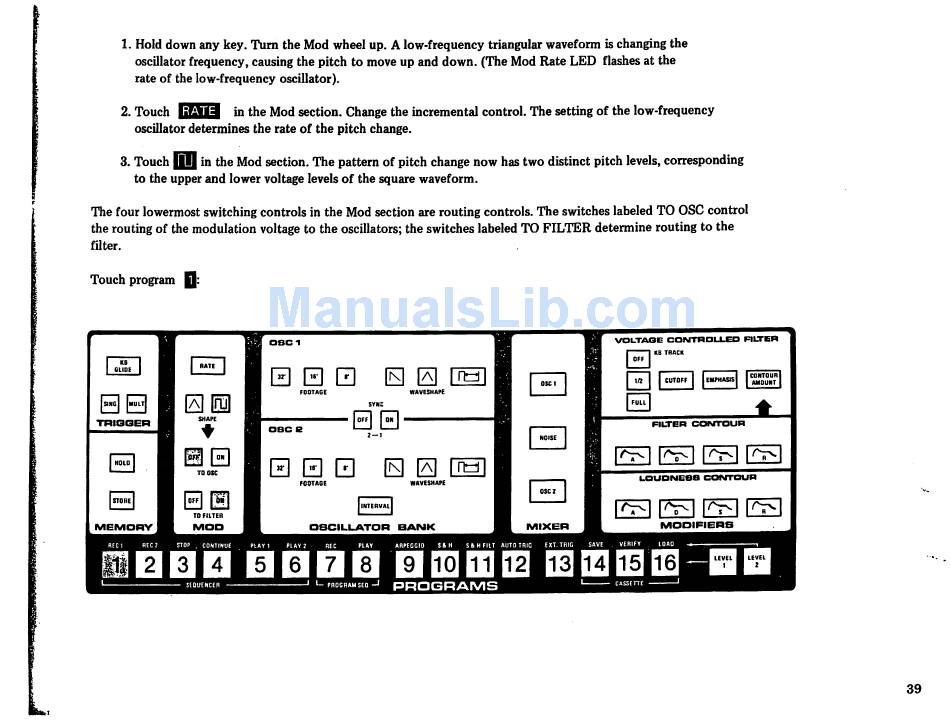

1. Hold down any key. Turn the Mod wheel up. A low-frequency triangular waveform is changing the
oscillator frequency, causing the pitch to move up and down. (The Mod Rate LED flashes at the
rate of the low-frequency oscillator).
2. Touch |i£||3 in the Mod section. Change the incremental control. The setting of the low-frequency
oscillator determines the rate of the pitch change.
3. Touch mi in the Mod section. The pattern of pitch change now has two distinct pitch levels, corresponding
to the upper and lower voltage levels of the square waveform.
The four lowermost switching controls in the Mod section are routing controls. The switches labeled TO OSC control
the routing of the modulation voltage to the oscillators; the switches labeled TO FILTER determine routing to the
filter.
Touch program Q:
VOLTAGE COIMTRDU_EO FILTER
KB TRACK
0 03 0 Hii
WAVESHAPE
INTEfiVAl
OSCILLATOB BANK
39
