SETUP

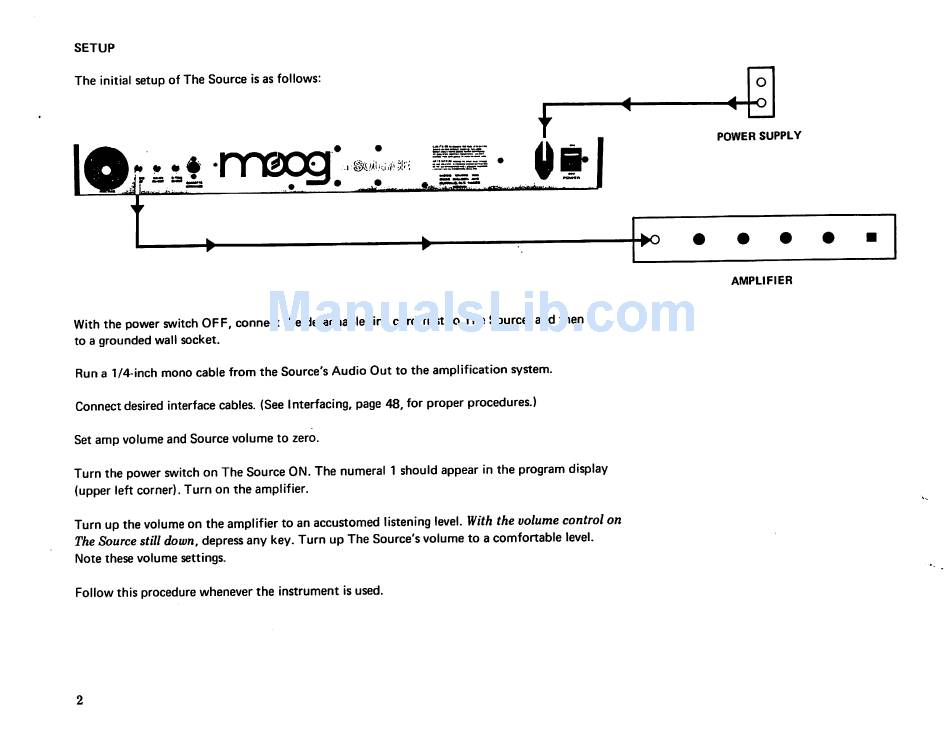

The initial setup of The Source is as follows:
o
9 9
r sa is
(It
With the power switch OFF, connect the detachable line cord first to The Source, and then
to a grounded wall socket.
Run a 1/4-inch mono cable from the Source's Audio Out to the amplification system.
Connect desired interface cables. (See Interfacing, page 48, for proper procedures.)
Set amp volume and Source volume to zero.
Turn the power switch on The Source ON. The numeral 1 should appear in the program display
(upper left corner). Turn on the amplifier.
Turn up the volume on the amplifier to an accustomed listening level. With the volume control on
The Source still down, depress any key. Turn up The Source's volume to a comfortable level.
Note these volume settings.
POWER SUPPLY
AMPLIFIER
Follow this procedure whenever the instrument is used.
