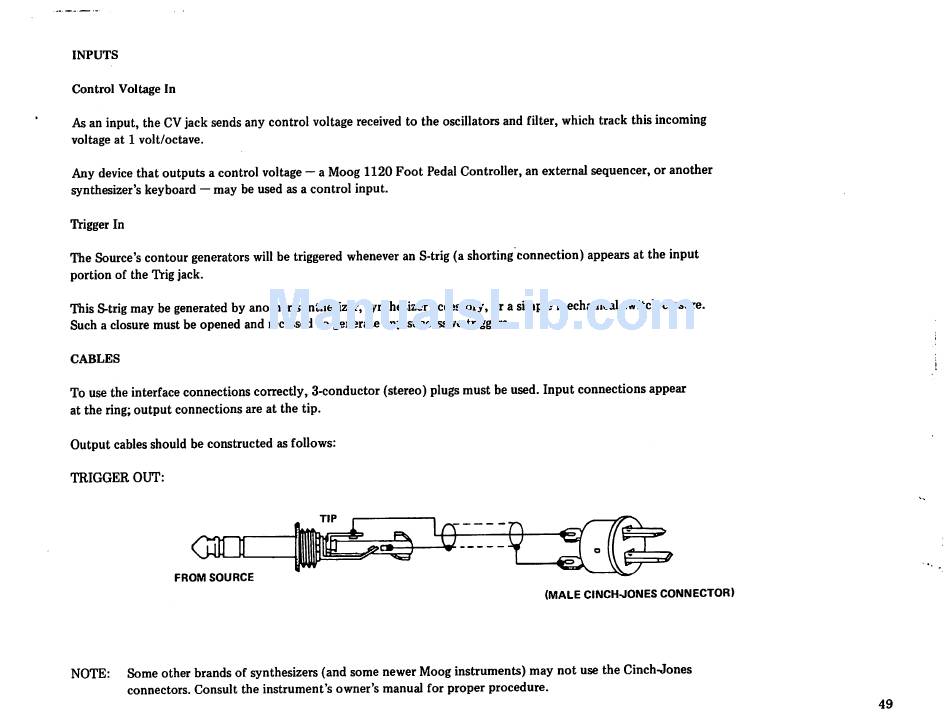

INPUTS
Control Voltage In
As an input, the CV jack sends any control voltage received to the oscillators and filter, which track this incoming
voltage at 1 volt/octave.
Any device that outputs a control voltage — a Moog 1120 Foot Pedal Controller, an external sequencer, or another
synthesizer's keyboard — may be used as a control input.
Trigger In
The Source's contour generators will be triggered whenever an S-trig (a shorting connection) appears at the input
portion of the Trig jack.
This S-trig may be generated by another synthesizer, synthesizer accessory, or a simple mechanical switch closure.
Such a closure must be opened and reclosed to generate any successive triggers.
CABLES
To use the interface connections correctly, 3-conductor (stereo) plugs must be used. Input connections appear
at the ring; output connections are at the tip.
Output cables should be constructed as follows:
TRIGGER OUT:
TIP
FROM SOURCE
(MALE CINCH-JONES CONNECTOR)
NOTE: Some other brands of synthesizers (and some newer Moog instruments) may not use the Cinch-Jones
connectors. Consult the instrument's owner's manual for proper procedure.
