Installation
5
Line up LATCH connectors with
LATCH anchors on vehicle seat
( Fig D ).
Push from behind red button on
6
each connector to attach to LATCH
anchor ( Fig E ).
NOTE:
LATCH connectors are
correctly attached when a positive
click is heard. If a positive click is
not heard, repeat steps 2–6.
7
Push restraint into vehicle seat
until firm against the seat back ( Fig
F ).
8
Verify that all connections are
tight and the child restraint is
secure.
Installation can be improved by the
use of the Versa-Tether
™
page 16 ).
R R e e m m o o v v a a l l
1
Squeeze the green and red
LATCH release buttons on each
connector to release.
2
Replace protective cover by attach-
ing it to the LATCH connectors.
3
Push LATCH connector assem-
bly in to store.
12
D
E
( see
F
Shoulder
Lap
A
B
C

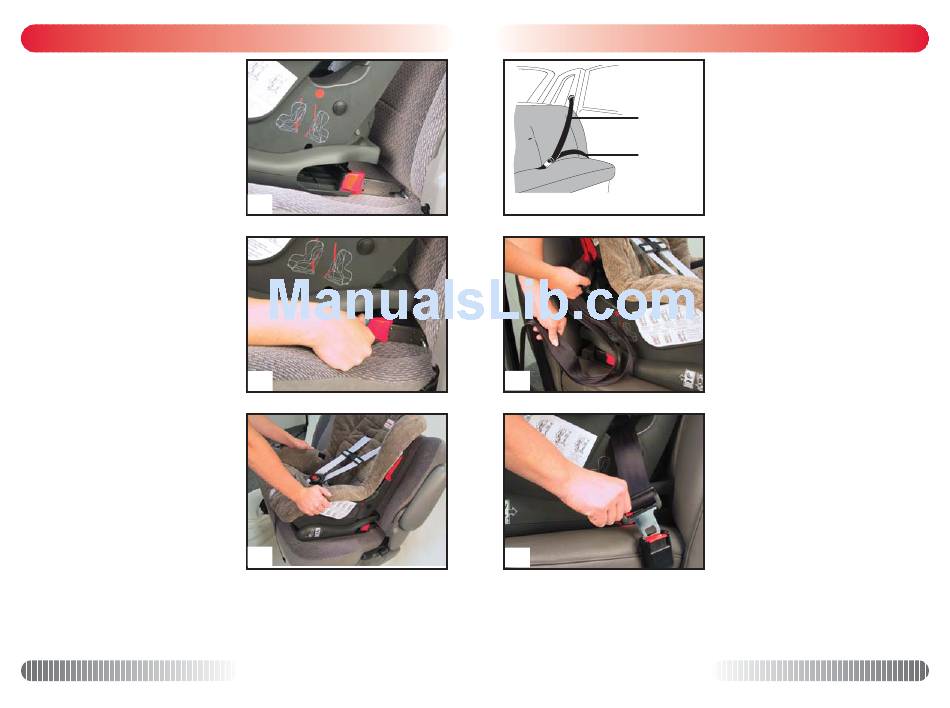

Installation
L L a a p p -S S h h o o u u l l d d e e r r B B e e l l t t I I n n s s t t a a l l l l a a t t i i o o n n
Figure A illustrates a typical lap-
shoulder seat belt configuration.
NOTE:
Protective cover should be
in place when LATCH is not in use.
1
Place the child restraint forward
facing on the vehicle seat.
2
Pull the vehicle belt out, then hold
the lap and shoulder sections togeth-
er. Keep the sections together as you
pass the seat belt through each for-
ward facing belt slot ( Fig. B ).
3
Fasten the seat belt, then verify
that the seat belt is not twisted
( Fig. C ).
Flip lock-off arm down to release.
4
NOTE:
Although the child restraint
has two forward facing lock-offs,
you will only need to use one.
Always use the lock-off that is far-
thest away from where the seat
belt is buckled.
13
