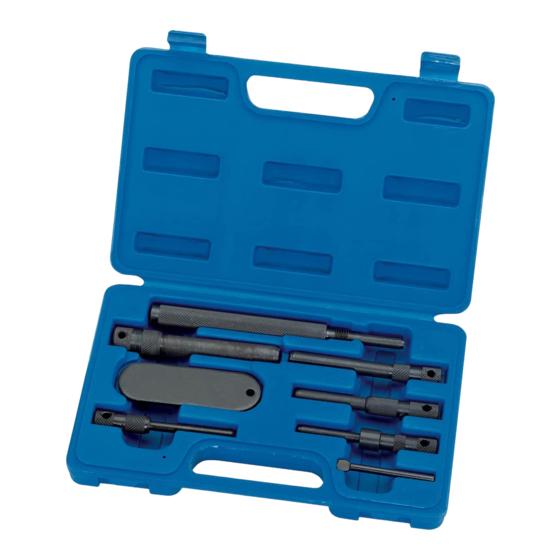

- Page 1 INSTRUCTIONS (FOR GUIDANCE ONLY) FORD DIESEL ENGINE INJECTION TIMING KIT STOCK No.52576. PART No.DTK-FORD. IMPORTANT: For detailed and concise instructions on the correct use of this kit, refer to the vehicle manufacturer’s service manual.
-
Page 2: Operating Instructions
OPERATING INSTRUCTIONS (FOR GUIDANCE ONLY) IMPORTANT: For detailed and concise instructions on the correct use of this kit, refer to the vehicle manufacturer’s service manual. WARNING: Incorrect or out of phase engine timing can result in mechanical contact between the valve head and the piston crown causing serious damage to the engine. - Page 3 1.8 Diesel Engine - 4 cylinder 1753cc OHC 1. Follow workshop manual procedures to remove the timing belt covers. Remove the threaded plug for the crankshaft timing pin from the cylinder block and turn the engine until the slot in the injection pump pulley is at about 11 o’clock.
- Page 4 ©Published by Draper Tools Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
