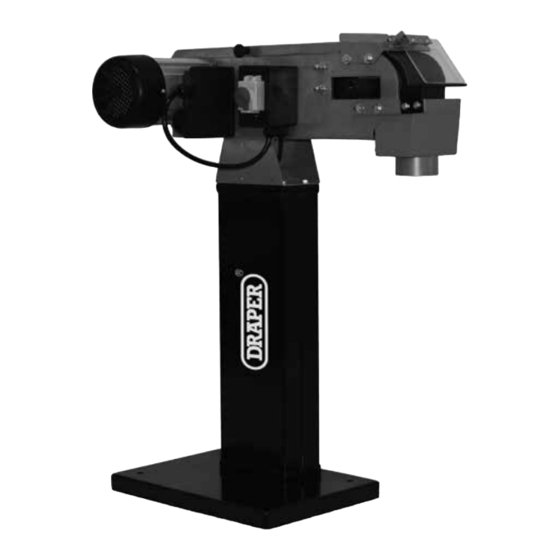

230V
BELT LINISHER &
SUPPORT COLUMN
98421 & 98422
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions
before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper 98421
Summary of Contents for Draper 98421
- Page 1 All photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS TABLE OF CONTENTS TITLE PAGE INTRODUCTION ......................2 REVISION HISTORY ....................2 UNDERSTANDING THIS MANUAL’S SAFETY CONTENT: ........2 COPYRIGHT © NOTICE: ..................... 2 CONTENTS TABLE OF CONTENTS ....................3 WARRANTY WARRANTY ......................... 5 INTRODUCTION SCOPE ......................... 6 SPECIFICATION ......................6 HANDLING AND STORAGE .................. - Page 4 CONTENTS 11. DISPOSAL 12.1 DISPOSAL ......................... 18 12. EXPLANATION OF SYMBOLS 13.1 EXPLANATION OF SYMBOLS .................. 19 – 4 –...
-
Page 5: Warranty 3.1 Warranty
This warranty applies in lieu of any other warranty expressed or implied and variations of its terms are not authorised. Your Draper warranty is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the warranty period. -
Page 6: Introduction
This machine is used to smooth a workpiece, creating a level, even surface. It can also be used to polish materials. Any application other than that it was designed for is considered misuse. SPECIFICATION Stock no............................ 98421 Part no..........................BL1500D Rated voltage ..........................230V Rated frequency .........................50Hz... -
Page 7: Health And Safety Information
HEALTH AND SAFETY INFORMATION GENERAL SAFETY INSTRUCTIONS FOR POWER TOOL USE When using any type of power tool there are steps that should be taken to make sure that you, as the user, remain safe. Common sense and a respect for the tool will help reduce the risk of injury. Read the instruction manual fully. -
Page 8: Additional Safety Instructions For Abrasive Finishing Machines
HEALTH AND SAFETY INFORMATION before making any adjustments, carrying out maintenance operations or just finishing using the tool. Remove and check setting tools. Some machinery requires the use of additional tools or keys to set, load or adjust the power tool. Before starting the power tool always check to make certain they have been removed and are safely away from the machine. -
Page 9: Residual Risk
HEALTH AND SAFETY INFORMATION Do not sand workpieces shorter than 70mm or thinner than 1mm. Properly support long or wide workpieces. Disconnect the machine from the power source before installing or removing accessories, before adjusting or changing set-ups, or when repairing. Disconnect the machine from the power source and clean the table/work area before leaving the machine. -
Page 10: Technical Description
TECHNICAL DESCRIPTION IDENTIFICATION (11) (12) (13) (10) (14) (1) Motor. (8) Belt guard. (2) On/Off buttons & emergency stop switch. (9) Belt access panel. (3) Work stop. (10) Contact wheel. (4) Work rest. (11) Platen. (5) Belt tracking adjustment knob. (12) Belt tension lever. -
Page 11: Unpacking And Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product. -
Page 12: Assembly Instructions
ONLY) – FIGS.1 - 3 The machine is packaged attached to the rectangular floor base, but a support column is FIG. available separately under Draper Stock No. 98422. To install the column: – Remove the four nuts, bolts and washers in the base to separate from the machine. -
Page 13: Eye Sheild
ASSEMBLY INSTRUCTIONS EYE SHIELD – FIGS.4 - 5 To install the eye shield: – Remove the cap screw and washer shown in Fig. 4. – Install the eye shield with the fastener just removed. – Remove the protective covering. FIG.4 FIG.5 SPARK TRAP –... -
Page 14: Operation And Use 9.1 Replacing Belts
OPERATION & USE REPLACING BELT – FIG.8 (12) Warning! Never attempt to adjust, maintain or service this machine while it is connected to the power supply. To replace the belt: – Open the belt access panel. – Pull belt tension release lever (12) out to release the tension of the belt. -
Page 15: Flat Grinding
OPERATION & USE FLAT GRINDING – FIG.11 Flat grinding operations can be performed directly on the belt against the platen. Always use two hands to control the workpiece and use the work stop to support it. – Connect the machine to the power supply, turn it ON and allow it to reach full speed. -
Page 16: Maintenance & Troubleshooting
10. MAINTENANCE AND TROUBLESHOOTING 10.1 MAINTENANCE To minimize your risk of injury and maintain proper machine operation, shut down the machine immediately if you ever observe any loose bolts, worn or damaged wires, or any other unsafe conditions, and fix the problem before continuing operations. After each use check for loose bolts, or a worn or damaged belt. - Page 17 10. MAINTENANCE AND TROUBLESHOOTING Problem Possible Cause Remedy Machine has vibration or 1. Grinding belt not tracking 1. Ensure belt is tracking noisy operation. correctly on wheels. correctly. 2. Motor or component 2. Replace damaged or loose. missing bolts/nuts or tighten if loose.
- Page 18 11. DISPOSAL 11.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...
- Page 19 12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Read the instruction manual. Wear face mask and safety glasses. Wear ear defenders. Wear protective gloves. WEEE – Waste Electrical & Electronic Equipment. Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish. Disable the machine before attempting to maintain it.
- Page 20 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
