Draper 23310-BPF Original Instructions

Read this manual in full before using this product and retain it for future use. Always use the latest version of
the manual. Please visit drapertools.com/manuals for the latest version.
1. Intended Use
This product is designed to flare brake pipes of
various sizes according to SAE Convex, DIN Convex
and SAE Double standards. Any other application
beyond the conditions established for use will be
considered misuse. Draper Tools accepts no
responsibility for improper use of this product.
Important: Ensure that you are familiar with the
various types of flares and their applications before
using this product. ALWAYS consult the vehicle
manufacturer's instructions before use.
WARNING! Keep your hands clear of moving
parts, clamps and punches while using this
product and keep long hair and jewellery
tied back.

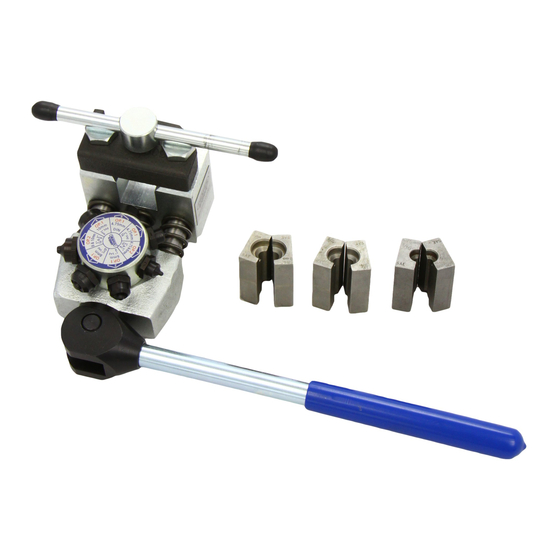

2. What's in the Box?
(C2)
(A)
(E2)
(B)
A. 1 × Flaring tool
assembly
B. 1 × Press lever
C. 1 × 3 ⁄ 16" combi die
C1. 3 ⁄ 16" (4.75mm)
SAE die
C2. 4.75mm DIN die
BRAKE PIPE
FLARING
TURRET KIT
23310 – BPF/PRO/TURRET INSTRUCTIONS FOR USE
(C1) (D)
(E1) (F)
D. 1 × 1 ⁄ 4" SAE die
E. 1 × 5 ⁄ 16" combi die
E1. 5 ⁄ 16" (8mm)
SAE die
E2. 8mm DIN die
F. 1 × 3 ⁄ 8" SAE die

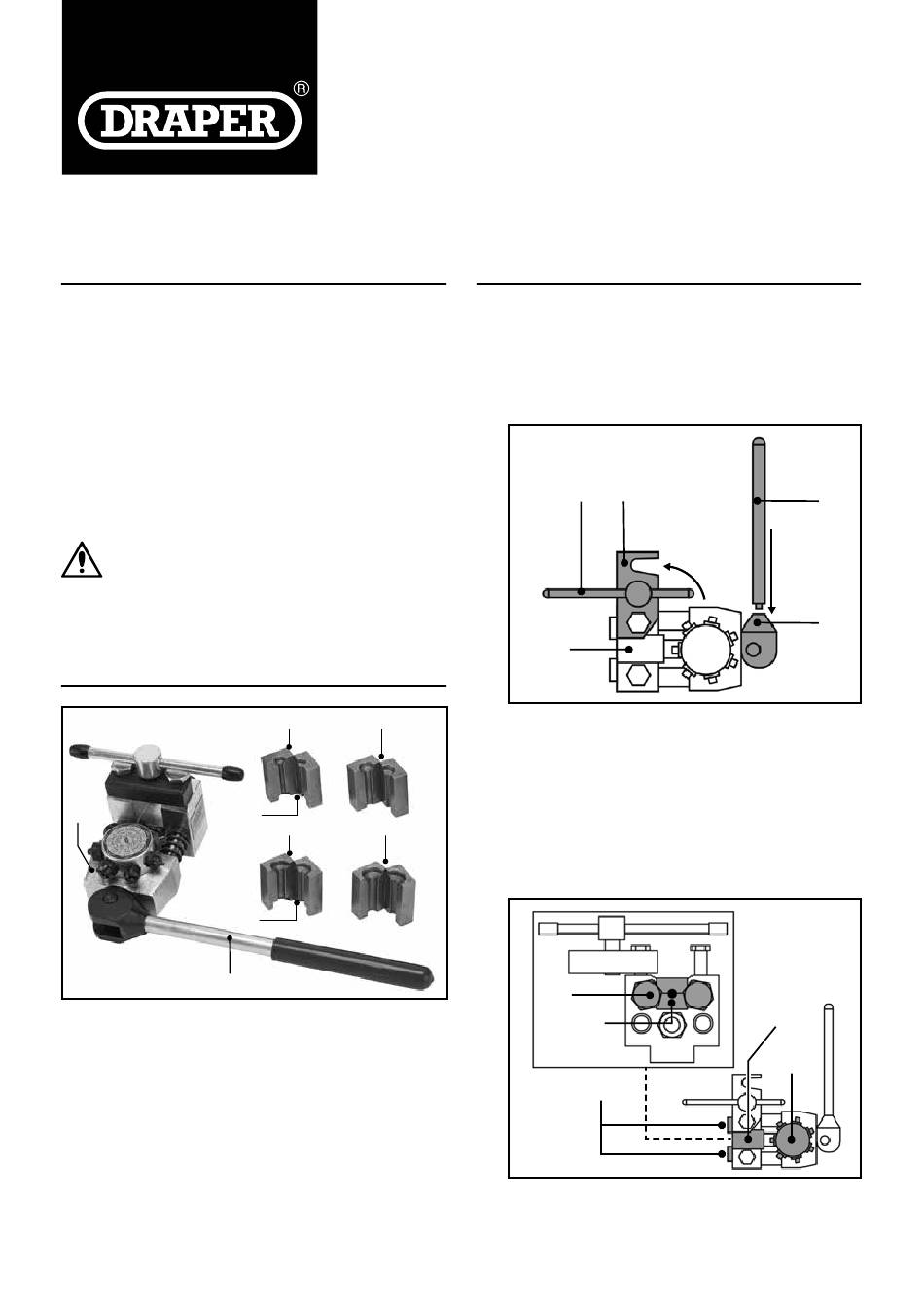

3. Operating Instructions
1. Clamp the base of the tool into a suitable
bench-mounted vice and screw the press lever
(B) into the lever socket (1).
2. Fully loosen the die clamp lever (2) and swing
the die clamp (3) open.
(2)
(3)
(4)
Fig. 1
3. Use 6. Flaring Reference Chart to determine
the correct die and punches for the required
flare.
4. Clean the die of grease and place the two parts
horizontally into the die socket (4) with the
required mould directed towards the turret (5).
(6)
(C/D/E/F)
(6)
Fig. 2
Important: Ensure that both parts of the die are
in contact with the die stops (6).
EN
Original Instructions
Version 2 – January 2023
(B)
(1)
(C/D/E/F)
(5)
