Draper 23313 Instructions For Use

Read this manual in full before using this product and retain it for future use. Always use the latest version of the manual.
Please visit drapertools.com/manuals for the latest version.
1. Intended Use
This product is designed to flare brake pipes of 4.75mm
according to DIN Convex standards. Any other application
beyond the conditions established for use will be
considered misuse. Draper Tools accepts no responsibility
for improper use of this product.
Important: Ensure that you are familiar with the various
types of flares and their applications before using this
product. ALWAYS consult the vehicle manufacturer's
instructions before use.
2. What's in the Box?
Before assembling the product, lay the contents out and
check them against the parts listed below. If any part is
damaged or missing, do not attempt to use the product;
please contact the Draper Helpline.

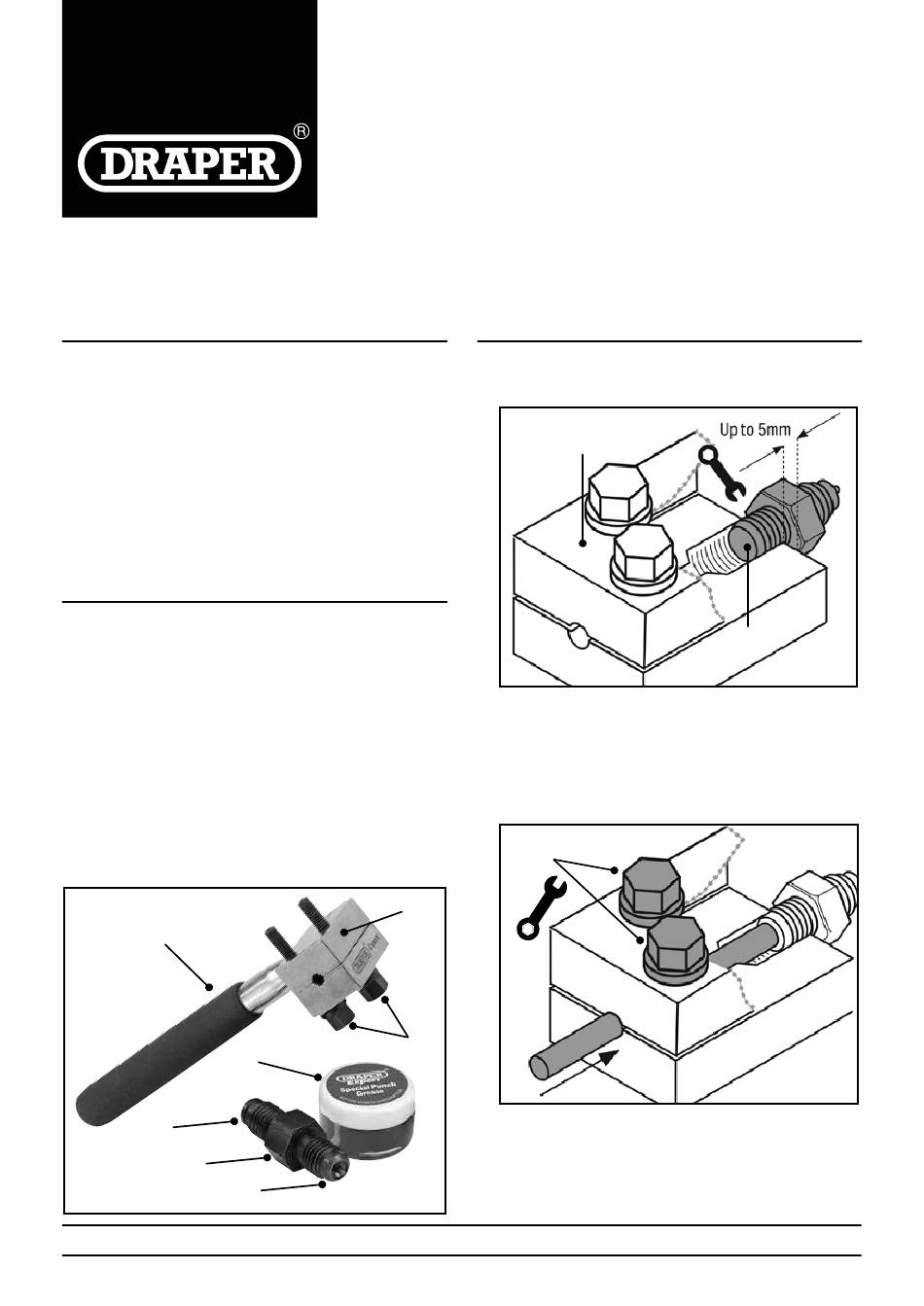

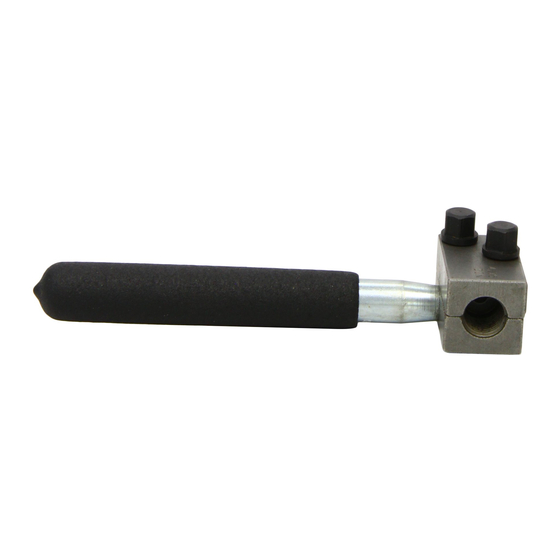

A. 1 × Flaring tool
A1. Die
A2. Locking screws
B. 1 × Double-ended punch
B1. 4.75mm DIN punch
B2. Stop punch
C. 1 × Punch grease
(A)
(B2)
(B)
Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333
Draper Tools Limited, Hursley Road, Chandler's Ford, Eastleigh, Hampshire, SO53 1YF, UK
HAND HELD
BRAKE PIPE
FLARING TOOL
4.75mm DIN
23313 – BPF/HAND/DIN INSTRUCTIONS FOR USE
(A1)
(A2)
(C)
(B1)
General Enquiries: +44 (0) 23 8026 6355
3. Operating Instructions
1. Partly screw the stop punch (B2) into the flaring tool so
that the nut is no more than 5mm from the die (A1).
(A1)
Fig. 1
2. Ensure that the tube nut is installed onto the brake pipe,
then insert the brake pipe into the open end of the die
and hand-tighten the locking screws (A2) just enough to
grip the pipe.
(A2)
Fig. 2
Important: DO NOT overtighten the locking screws at
this stage as the stop punch may damage the pipe.
Website: drapertools.com
EN
Original Instructions
Version 1 – January 2023
(B2)
Email: sales@drapertools.com
0123
