Summary of Contents for Draper GPAUG52-B

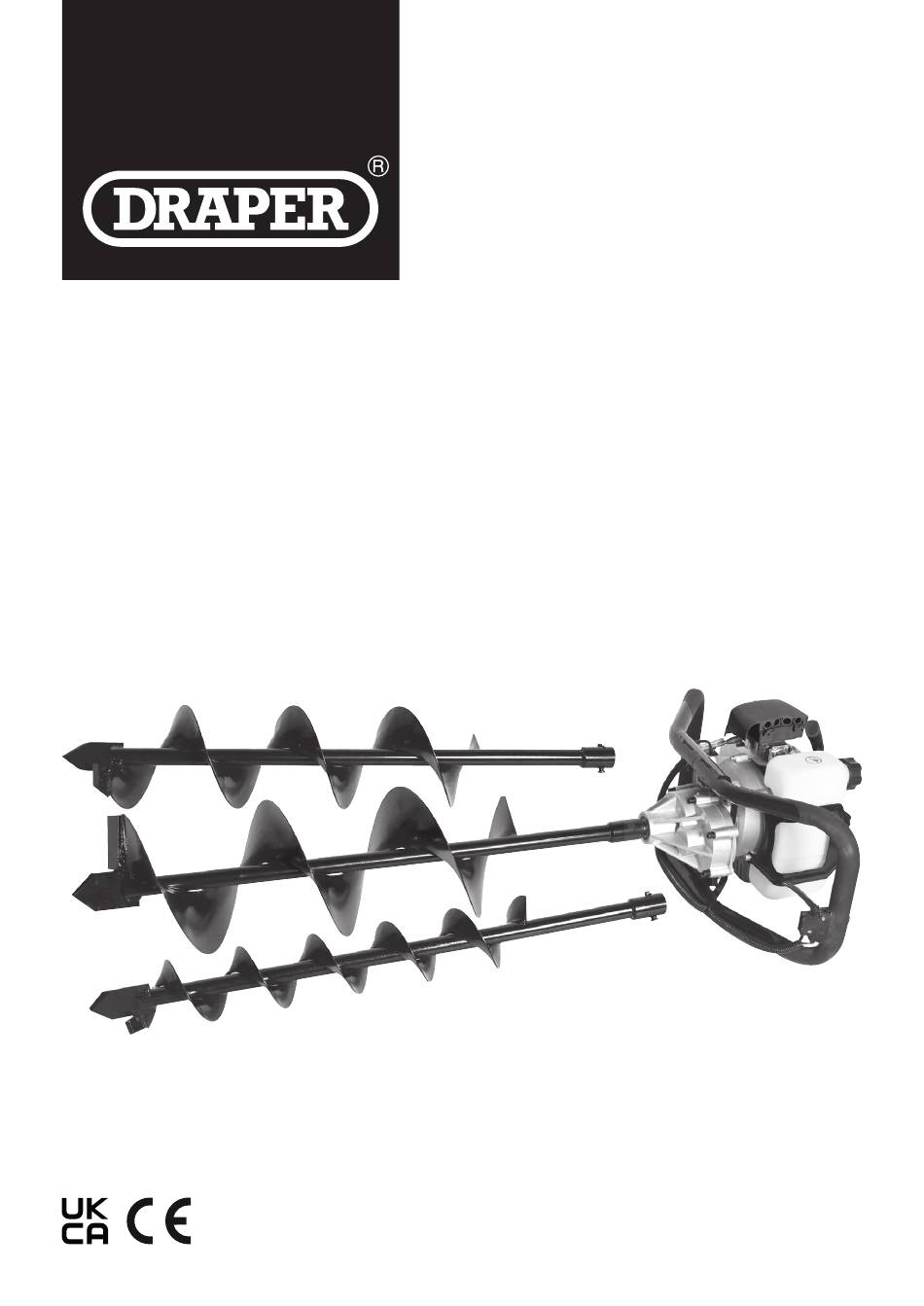

- Page 1 Original Instructions Version 2 PETROL EARTH AUGER KIT 68294 For your safety, it is essential that these instructions are read and understood in full by the operator before attempting to assemble, operate, adjust or maintain this product.
-
Page 2: Copyright © Notice
All photographs and drawings within this manual are document is part of the product; retain it for the life supplied by Draper Tools to help illustrate correct of the product, passing it on to subsequent holders. operation of the product. -
Page 3: Table Of Contents
2. Contents 1. Preface 1.1 Product Reference 1.2 Revisions 1.3 Understanding the Safety Content of This Manual 1.4 Copyright © Notice 2. Contents 3. Product Introduction 3.1 Intended Use 3.2 Specification 4. Health and Safety Information 4.1 General Health and Safety Precautions for Agricultural Equipment 4.2 Additional Safety Information for this Tool 4.3 ... -
Page 4: Product Introduction
100mm, 150mm and 200mm in diameter. Any other operate or maintain the product and retain it for later use. application beyond the conditions established for use will be considered misuse. Draper Tools accepts no responsibility for improper use of this product. 3.2 Specification Stock No. - Page 5 Take into account all parts of the operation cycle in order to identify any safety measures required to protect the operator. *Draper Tools recommends using an additive or stabiliser with E10 petrol so the fuel can be safely stored in the fuel tank for longer.
-
Page 6: Health And Safety Information
Important: DO NOT use this product if it is damaged • DO NOT refuel the machine while it is running. or leaking in any way. Contact Draper Tools to discuss • Unless an emergency occurs, reduce the throttle repair and replacement options. DO NOT use during engine shut down before turning off the damaged or worn blades. -
Page 7: Additional Safety Information For This Tool
− If the bit operates while the engine is idling, • Wear appropriate personal protective equipment: contact Draper Tools for support. − Wear a protective safety helmet to protect from • If the tool vibrates abnormally during use, projectile debris and falling materials. -
Page 8: Health And Safety Information For Machines With A Petrol Engine
E10 fuel before using it in this holes after operation so that they are easily visible. machine. Draper Tools recommends using an additive or 4.3 Health and Safety Information for stabiliser with E10 petrol to extend the period that it can be safely stored in the fuel tank. -
Page 9: Identification And Unpacking
5. Identification and Unpacking 5.1 Product Overview (10) (14) (17) (18) (11) (12) (16) (15) (13) (18) Air filter cover (10) Handlebars Auger bit (11) Ignition switch Carburettor (12) Lanyard activation point Choke lever (13) Pilot drill Connection pin (14) Priming bulb Drive shaft (15) Recoil starter Exhaust... -
Page 10: What's In The Box
If any part is occurred during shipment. damaged or missing, do not attempt to use the product. Please contact the Draper Helpline; contact details can be found at the back of this manual. (G1) -
Page 11: Preparation Instructions
(21) to here of oil, including engine oil, as this will permanently damage the engine. ALWAYS use automotive petrol. Draper Tools Fig. 2 recommends E10 (95 RON) automotive fuel, with an appropriate additive or stabiliser, for use a. Holding the two-stroke mixing bottle with the with this product. - Page 12 Draper Tools recommends the use of petrol additives or stabilisers when using E10 petrol. Additives and 3. Twist the fuel tank cap (9) anticlockwise to remove it stabilisers are widely available and can extend the length and allow it to hang clear of the opening.
-
Page 13: Attaching The Auger Bit
6. Preparation Instructions 6.2 Attaching the Auger Bit Important: DO NOT connect any auger bit to this tool that has not been supplied with this product. Other auger bits may be unsuitable for the engine or fit incorrectly and result in injury or cause damage to the tool. WARNING! Never use an auger bit if the R-pin or locking bar is missing, damaged or significantly corroded. -
Page 14: Operating Instructions
7. Operating Instructions 7.2 Starting the Engine Important: Before operating this product, read and understand all the safety instructions listed in this manual. CAUTION! This machine is NOT shipped with fuel or oil. DO NOT attempt to start the engine WARNING! DO NOT start the machine until the until an appropriate mix of fuel and oil has been auger bit and safety lanyard have been installed. - Page 15 7. Operating Instructions 2. Slide the choke lever (4) to the closed ( ) position. 4. Slowly pull on the recoil starter (15) until resistance is felt, then pull it out rapidly. (15) Fig. 8 Fig. 10 3. Press the priming bulb around six times until fuel can CAUTION! DO NOT attempt to start the engine be see flowing through the clear hose from the fuel when the recoil starter is fully retracted.
-
Page 16: Notes On Use
Apply firm downward pressure onto the handlebars throughout the operation, but DO NOT force the tool; let the tool do the work. Draper Tools recommends beginning the operation using half-throttle speed and gradually increasing Fig. 13 pressure on the throttle lever (18), particularly when boring deeper holes. -
Page 17: Maintenance And Troubleshooting
Important: DO NOT use solvents as this may damage engine to degrade rapidly. the plastic parts of the machine. • Use ONLY spare parts supplied by Draper Tools. 1. Ensure that the choke lever (4) is in the closed position to prevent any debris from entering • Keep all auger bits free from debris and clean them... -
Page 18: Spark Plug Care
8. Maintenance and Troubleshooting 8.4 Spark Plug Care 3. Open the air filter housing and remove the foam element; check it for holes, tears and obstructions. Ensure that the spark plug is clean and correctly gapped. The spark plug may become contaminated over time if the machine is run with part-throttle for prolonged periods or the fuel mixture contains too much oil. -
Page 19: Replacing The Fuel Filter
8. Maintenance and Troubleshooting 5. Attach the spark plug washer and thread the plug into 4. Gently pull the filter out of the fuel tank opening. place by hand. Important: If mounting a new spark plug, use the spark plug wrench to screw the spark plug an additional half rotation after hand-tightening to the point that the washer is compressed. - Page 20 8. Maintenance and Troubleshooting If the machine is to be stored for a prolonged period, ensure that the engine cylinder is sufficiently lubricated to prevent it from seizing: 1. Remove the spark plug; see 8.4 Spark Plug Care. 2. Pour a few drops of SAE 5W-30 oil into the socket. 3.
-
Page 21: Troubleshooting
8. Maintenance and Troubleshooting 8.7 Troubleshooting Problem Possible Cause Remedy The engine will The safety wrist lanyard is not Connect the lanyard cup to the activation point not start. attached to the engine unit. (see 7.1). The ignition switch is in the Press the ignition switch to the on position. - Page 22 The engine speed is too low. Squeeze the throttle to increase the engine speed. The carburettor is poorly adjusted Contact Draper Tools for support. or badly set. The transmission is broken. The clutch shoes are worn. The engine lower seat is worn.
-
Page 23: Spares, Returns And Disposal
Store these materials in suitable containers and dispose of them in accordance with local regulations. Draper Tools and its agents cannot be responsible for the disposal of these substances. At the end of its working life, dispose of the product responsibly and in line with local regulations. -
Page 24: Warranty
This warranty period covers parts and labour for 12 months from the date of Your Draper Tools guarantee is not effective until you can purchase. Where tools have been hired out, the warranty produce, upon request, a dated receipt or invoice to period covers 90 days from the date of purchase. -
Page 25: Explanation Of Symbols
11. Explanation of Symbols 25:1 Correct fuel to two-stroke oil Read the instruction manual mixture ratio Keep away from sources of ignition WARNING! Guaranteed sound power level WARNING! Risk of danger to wildlife Engine displacement Do not incinerate or throw onto fire 1450 Max. - Page 26 Notes – 26 –...
- Page 27 Notes – 27 –...
- Page 28 Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 General Fax: +44 (0) 23 8026 0784 Please contact the Draper Tools Product Helpline for repair and servicing enquiries. © Published by Draper Tools Limited © Published by Draper Tools Limited...
