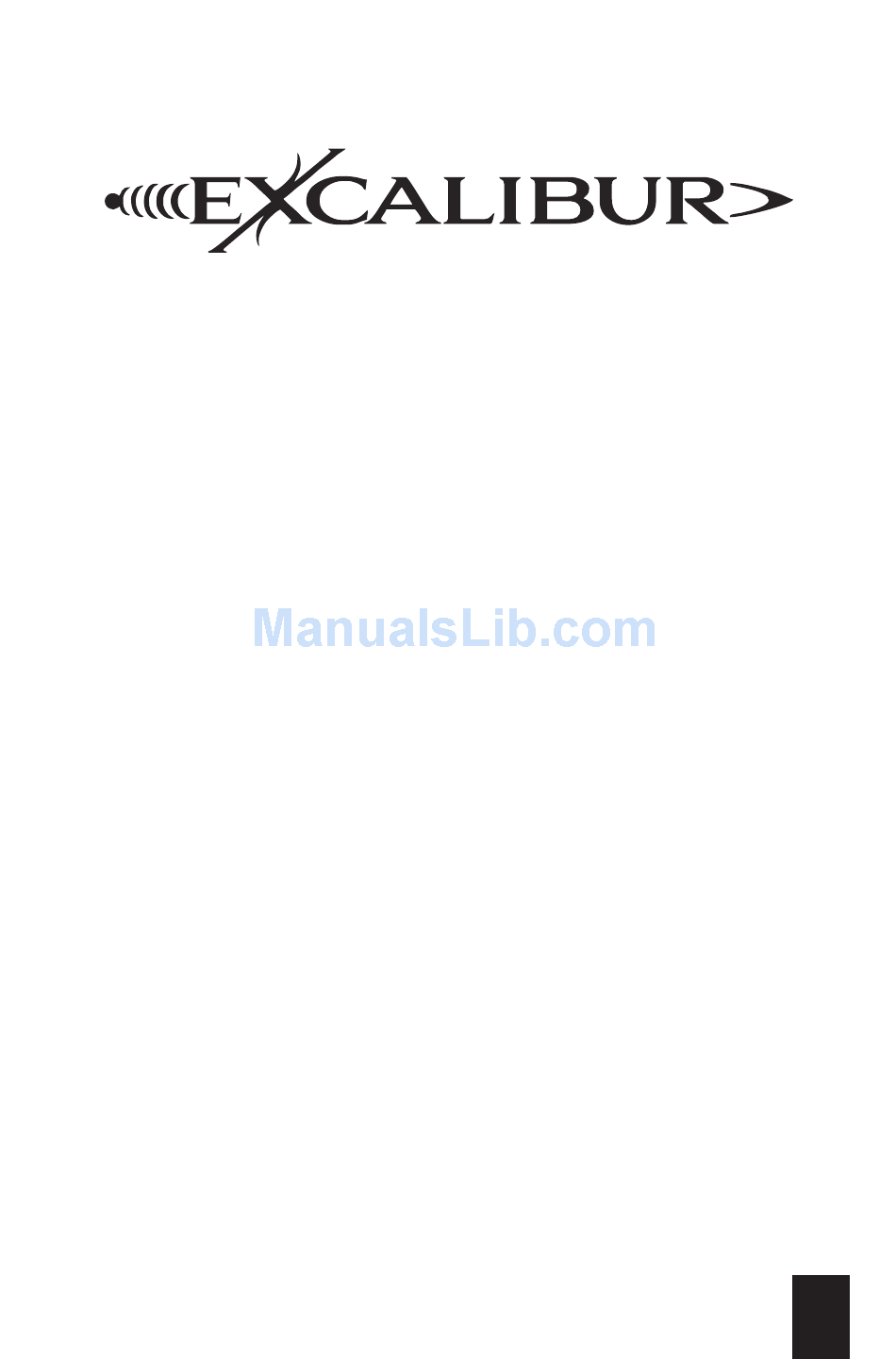

- Page 1 RS-260-EDPB Deluxe 1-Button Keyless Entry & Remote Start w/ BLADE Technology July 9, 2014 Operation Guide Temporary cover. Color cover is in a separate file.
-
Page 2: Table Of Contents
Table Of contents Transmitter Overview ....................2 Transmitter Functions ....................3 Other Remote Start Features ..................4 Low Battery/Low Temp Automatic Starting ............... 4 Turbo Timer Feature ....................4 Pit-Stop Feature ....................... 4 Manual Transmission Starting .................. 4 Security System Features (OPTIONAL) ............... 4 Last Door Arming ...................... -
Page 3: Transmitter Functions
Transmitter Functions LOcK / ARm: While the system is unlocked / disarmed, Press and hold the “START” button for 1 second. • THE SIREN / HORN WILL CHIRP & THE PARKING LIGHTS WILL FLASH ONCE. unLOcK / DiSARm: While the system is locked / armed, Press and hold the “START”... -
Page 4: Other Remote Start Features
4) LOCK the vehicle with the remote. The engine will shut down (unless turbo timer is on) and the status light will flash every 2 seconds to indicate it is ready to be remote started. nOTE: manual transmission setup will cancel if you enter the vehicle. Security System Features (OPTiOnAL) NOTE: Security features are optional for the RS-260-EDPB. Talk to your dealer to learn more about upgrading. LAST DOOR ARminG This system can be configured to arm automatically when all the vehicle’s doors are closed (see user feature #9). -
Page 5: Security System Features (Cont'd)
Security System Features (cont’d) AuTOmATic REARminG This automatically rearms the alarm if the system is disarmed from the remote. (see user feature #10). When disarmed by remote, the system will start a 90 second countdown (fast flash- ing status light) to arm the system. This is useful if the controller accidentally disarms the system when it’s kept in a purse or pocket where other items could potentially press the buttons. NOTE: Installer feature #13 must be on and the system must be wired for security functions PRE-wARn DETEcTiOn EXTERnAL SEnSORS ARE OPTiOnAL uPGRADES. -
Page 6: The Status Light
The Status Light The status lights, located in the window-mount antenna, provide a visual indication of the system’s status. SEcuRiTy SySTEm STATuS (must be enabled by installer) OFF: The alarm is disarmed and not performing any automatic functions. On: The alarm is in valet mode. FLAShinG SLOw: The alarm is armed and monitoring all entry points. -
Page 7: Programming Transmitters
Anti-carjacking Protection (cont’d) condition, it will not respond to the transmitter, nor will the system reset automatically after 60 seconds, and it can only be disengaged by: Step 1 Turning the vehicle’s ignition off. Step 2 Turning the ignition back on. Step 3 Within 5 seconds, perform an Emergency Override using the Valet Switch. -
Page 8: User Programmable Features
user Programmable Features Feature #1 - Remote Start Run Time 10 minutes (press “start” 1 time to program) - DEFAuLT 5 minutes (press “start” 2 times to program) 15 minutes (press “start” 3 times to program) 20 minutes (press “start” 4 times to program) This sets the maximum amount of time that the remote start will keep the engine running if it is not shut down by other methods. - Page 9 user Programmable Features (cont’d) Feature #7 - unlock w/ Trunk Release (press “start” 1 time to program) - DEFAuLT (press “start” 2 times to program) “2nd channel” is most commonly used for trunk release, in which case the alarm should also disarm. This feature, when on, configures the system to unlock/disarm when the 2nd channel is activated.
- Page 10 user Programmable Features (cont’d) Feature #13 - Securecode nOT AVAiLABLE On ThiS mODEL Feature #14 - ignition Activated Override (press “start” 1 time to program) (press “start” 2 times to program) - DEFAuLT This feature allows an activated system to be overridden and disarmed by simply turning the ignition switch on within 10 seconds of the system’s activation.
-
Page 11: Installer Programmable Features
installer Programmable Features This group of Installer Programmable Features are all accessed as a group in the second level of features’ programming. These features have a direct affect upon the system’s operations related to the installation and vehicle type AnD ShOuLD OnLy BE chAnGED By ThE inSTALLER!!! Feature #1 - Remote Start Activation From The whiTE/BLuE wire 1 pulse (press “start”... - Page 12 installer Programmable Features (cont’d) Feature #5 - Light Relay Function Dome Light Output (press “start” 1 time to program) - DEFAuLT Start (press “start” 2 times to program) ignition Output (press “start” 3 times to program) Accessory Output (press “start” 4 times to program) Status (press “start”...
- Page 13 installer Programmable Features (cont’d) Feature #10 - Turbo Timer (press “start” 1 time to program) - DEFAuLT Run 1 minute (press “start” 2 times to program) Run 2 minutes (press “start” 3 times to program) Run 3 minutes (press “start” 4 times to program) This feature, the operation of which is described on page 4, when turned on configures the system to automatically keep the engine running briefly after the key is turned off.
- Page 14 installer Programmable Features (cont’d) Feature #17 Low Temp crank Extender 0ms (Off) (press “start” 1 time to program) 200ms (press “start” 2 times to program) - DEFAuLT 300ms (press “start” 3 times to program) 400ms (press “start” 4 times to program) When the vehicle’s interior temperature is below freezing, this feature adds extra crank time to the base timing (see installer feature #7).
-
Page 15: Programmable Features Matrix
User Feature Programming: Ignition on, off, press valet 5 times Start Button Start button Start button Start button Start Button # Feature 1 time 2 times 3 times 4 times 5 times 1 Remote Start Run Time 10 min 5 min 15 min 20 min Unlock: ON... - Page 16 Back cover color cover is in a separate file.
