Summary of Contents for Excalibur RS-340-EDPplus

  • Page 1: Operation Guide

    RS-340-EDP+ Deluxe Keyless Entry & Remote Start Operation Guide June 29, 2011 Temporary cover. Color cover is in a separate file.
  • Page 2: Table Of Contents

    Table Of Contents Introduction ���������������������������������������������������������������������������������������������� 3 The Transmitter���������������������������������������������������������������������������������������� 4 Transmitter Functions Reference Guide ����������������������������������������������� 4 Other Remote Start Features������������������������������������������������������������������ 7 Low Battery/Low Temp Automatic Starting �������������������������������������������� 7 Turbo Timer Feature ������������������������������������������������������������������������������ 7 Pit-Stop Feature ������������������������������������������������������������������������������������ 7 Manual Transmission Starting ��������������������������������������������������������������� 7 Using The Valet Switch ���������������������������������������������������������������������������...
  • Page 3: Introduction

    Introduction Congratulations on your purchase of this convenience system by Omega Research & Development, Inc�, a world leader in vehicle security and conveince products since 1975� This system is designed to offer ease of use and it’s modular design allows for many features to be customizable to suit your needs�...
  • Page 4: The Transmitter

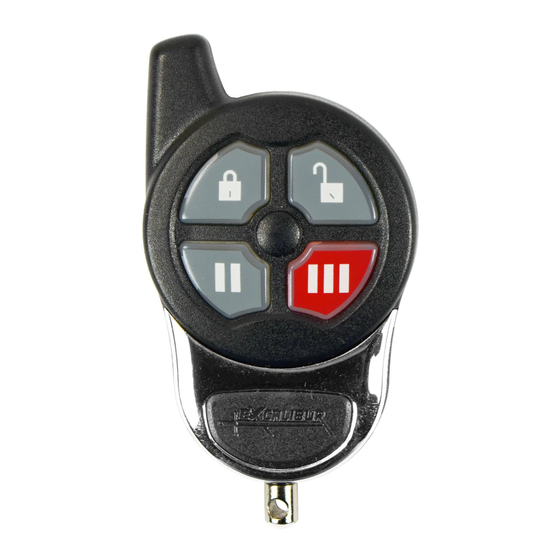

    The Transmitter Transmitter part numbers: 147-03 text buttons 147-03B icon buttons “lock” “unlock” Call your dealer or visit button button www.caralarm.com to order replacement transmitters. “trunk” “start” Transmitter battery replacement: button button Remove the small screw from the lower back case, and separate the transmitter halves�...
  • Page 5 Controlling The System (cont’d) TRUNK RELEASE/ CHANNEL 2: Press and hold the “TRUnK” button for 3 seconds� • THE TRUnK wILL OPEn, THE DOORS wILL UnLOCK, THE PARKIng LIgHTS wILL FLASH TwICE THEn ILLUMInATE FOR 30 SECOnDS, AnD THE HORn wILL HOnK TwICE� •...
  • Page 6: Auxiliary Functions

    Controlling The System (cont’d) Panic Mode: Press & Hold the LOCK or UnLOCK button for 3 seconds� • THE HORn wILL SOUnD, THE PARKIng LIgHTS wILL FLASH AnD THE DOORS wILL LOCK OR UnLOCK, DEPEnDIng On THE TRAnSMITTER BUTTOn USED� •...
  • Page 7: Other Remote Start Features

    Other Remote Start Features LOw BATTERY/LOw TEMP AUTOMATIC STARTING This feature will automatically start the engine should the vehicle battery drop below 11 volts or the interior temperature drop to 15 (or 32) degrees fahrenheit� This feature is very useful when the vehicle is parked for a long period of time in cold climates�...
  • Page 8: Using The Valet Switch

    Other Remote Start Features (cont’d) 4) Press LOCK on the transmitter� The engine will shut down (unless turbo timer is on) and the status light will flash every 2 seconds to indicate it is ready to be remote started� NOTE: Manual transmission starting is canceled if you enter the vehicle after per- forming the setup procedure�...
  • Page 9 The Status Light (cont’d) 5) Flashing Fast (after activating remote start): The system is in the process of start- ing the engine� Remote Starting Diagnostics whenever the system is placed into Valet Mode, the Status Light illuminates solid. However, when this first occurs, the Status Light will flash 1 to 6 flashes be- fore resuming solid illumination�...
  • Page 10: Programming Transmitters

    Programming Transmitters Standard Programming: Using this method to program additional or replacement transmitters does not turn on or otherwise affect the Unauthorized Transmitter Alert (UTA) feature� Step 1 Have all transmitters which are to operate the system at hand� Then, turn the ignition “on”�...
  • Page 11: User Programmable Features

    Programming Features (cont’d) ~ The horn will honk, the status lights, and the parking lights will flash equal to the selected setting. Step 5 If you wish to change more features, repeat steps 3 & 4 at this time� Step 6 To exit programming, turn the ignition key “On” then “OFF”� Or, you can wait 10 seconds for programming mode to expire�...
  • Page 12: Installer Programmable Features

    User Programmable Features (cont’d) Feature #5 Doors Lock with Ignition On (press “unlock” button to program) - DEFAULT (press “lock” button to program) This feature configures the system to automatically lock the vehicle’s doors every time that the ignition switch is turned on� The following feature #6 controls the automatic unlocking operations�...
  • Page 13 Installer Programmable Features (cont’d) “Tachless Hi” sensitivity mode looks for a voltage increase of 0�3v after cranking� It uses a fixed crank time determined by installer feature #5. “Tachless Lo” sensitivity mode looks for a voltage increase of 0�5v after cranking� It uses a fixed crank time determined by installer feature #5.
  • Page 14 Installer Programmable Features (cont’d) Feature #7 Extended Starter Cranking Time 0�7 Second (press “lock” button to program) - DEFAULT 1�00 Second (press “unlock” button to program) 1�5 Seconds (press “trunk” button to program) 2�25 Seconds (press “start” button to program) This feature determines the crank time of the 1st start attempt when in “Tachless”...
  • Page 15: Programmable Features Matrix

    Installer Programmable Features (cont’d) Feature #12 Manual Transmission Remote Start (press “unlock” button to program) - DEFAULT (press “lock” button to program) Enabling this feature requires a “setup” procedure to be performed that ensures the transmission is in neutral before remote start can be performed� See page 8 for more information�...
  • Page 16 Back Cover Color cover is in a separate file.
