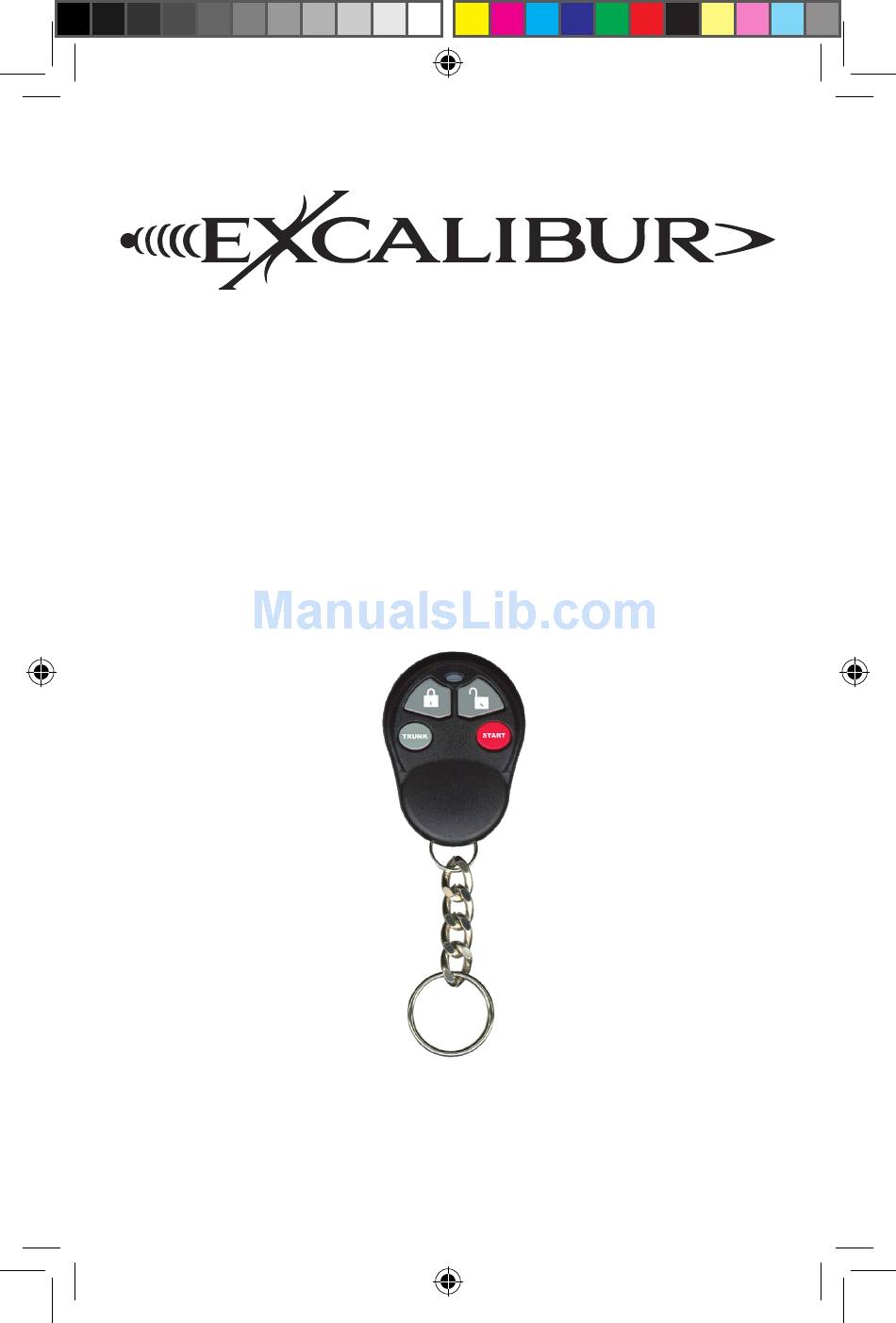

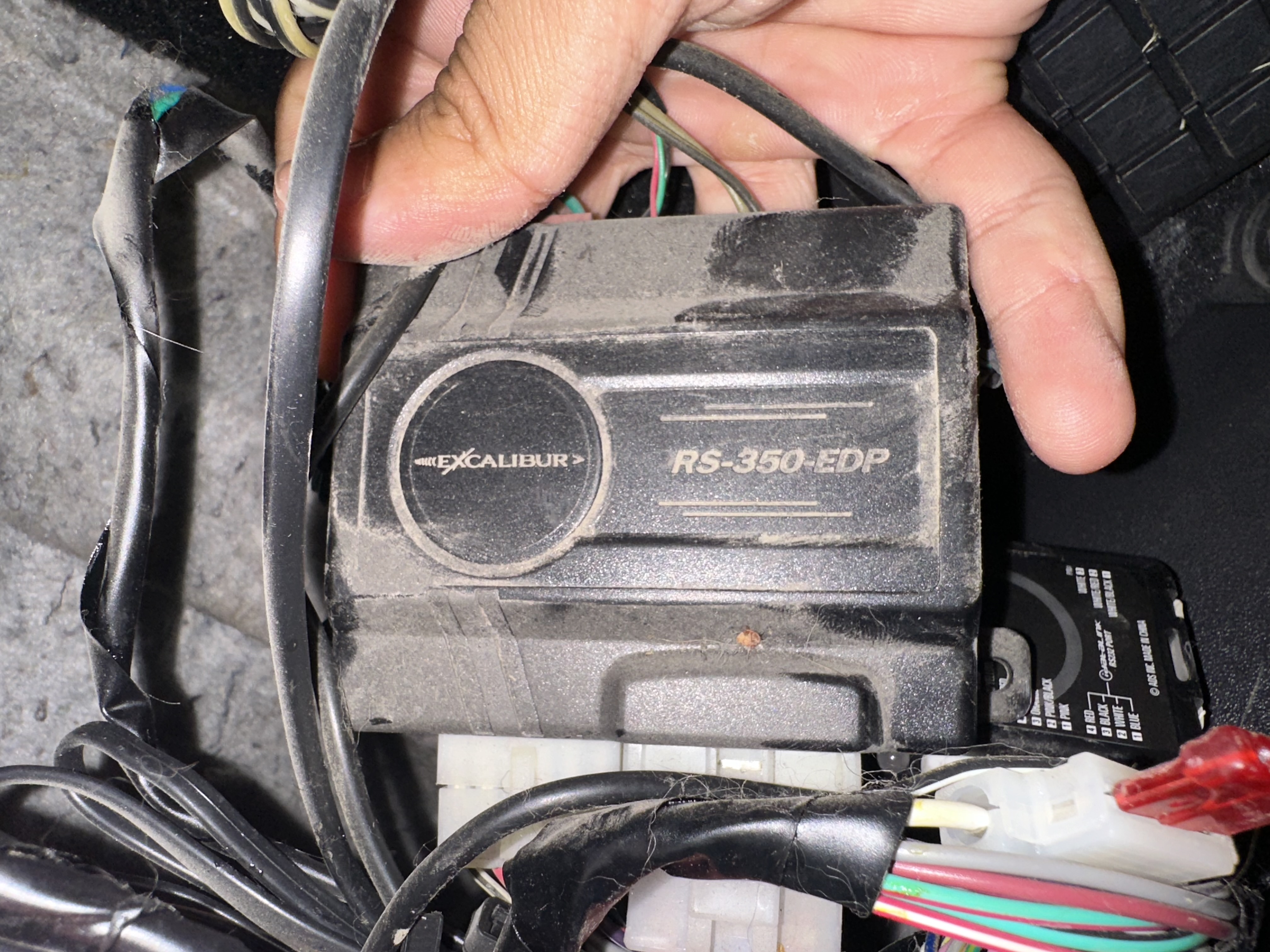

- Page 1 RS-350-EDP Deluxe Keyless Entry & Remote Start Operation Guide July 11, 2012 Temporary cover. Color cover is in a separate file.
-
Page 2: Table Of Contents
Table Of Contents Introduction ....................3 The Transmitter ..................4 Transmitter Functions ................4 Other Remote Start Features ..............7 Low Battery Automatic Starting ............7 Turbo Timer Feature ................7 Pit-Stop Feature ................7 Manual Transmission Starting ............7 Using The Valet Switch ................8 The Status Light (Optional)..............8 Programming Transmitters ..............10 Programming Features ................10 User Programmable Features ............. -
Page 3: Introduction
Introduction Congratulations on your purchase of this convenience system by Omega Research & Development, Inc., a world leader in ve- hicle security and convenience products since 1975. This system is designed to offer ease of use and it’s modular design allows for many features to be customizable to suit your needs. -
Page 4: The Transmitter

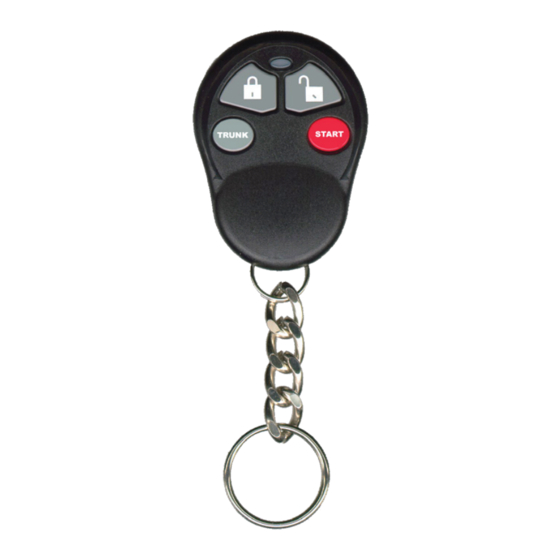

The Transmitter Transmitter part number: 146-03S Call your dealer or visit “lock” “unlock” www.caralarm.com to order button button replacement transmitters. “trunk” “start” button button Transmitter battery replacement: Remove the small screw from the lower back case, and separate the transmitter halves. Replace the CR2032 battery (or with 2 CR2016 batteries) and reassemble the trans- mitter case. - Page 5 Transmitter Functions (cont’d) TRUNK RELEASE/ CHANNEL 2: Press and hold the “TRUnK” button for 3 seconds. • THE TRUnK wILL OPEn, THE DOORS wILL UnLOCK, THE PARKIng LIgHTS wILL FLASH TwICE THEn ILLUMInATE FOR 30 SECOnDS, AnD THE HORn wILL HOnK TwICE. •...
- Page 6 Transmitter Functions (cont’d) PANIC MODE: Press & Hold the LOCK or UnLOCK button for 3 seconds. • THE HORn wILL SOUnD, THE PARK- Ing LIgHTS wILL FLASH AnD THE DOORS wILL LOCK OR UnLOCK, DEPEnDIng On THE TRAnSMITTER BUTTOn USED. •...
-
Page 7: Other Remote Start Features
Other Remote Start Features LOW BATTERY AUTOMATIC STARTING This feature will automatically start the engine if the vehicle battery drops below 11 volts or the interior temperature drop to 15 (or 32) degrees fahrenheit. you must activate these features each time you park your car to use them. They can be activated one of two ways: Method 1 - Valet Switch •... -
Page 8: Using The Valet Switch
Other Remote Start Features (cont’d) 4) Press LOCK on the transmitter. The engine will shut down (unless turbo timer is on) and the status light will flash every 2 seconds to indicate it is ready to be remote started. NOTE: Manual transmission starting is canceled if you enter the vehicle after per- forming the setup procedure. After remote starting, you have 20 seconds to turn on the ignition key AFTER opening a door. - Page 9 The Status Light (cont’d) 5) Flashing Fast (after activating remote start): The system is in the process of start- ing the engine. Remote Starting Diagnostics whenever the system is placed into Valet Mode, the Status Light illuminates solid. However, when this first occurs, the Status Light will flash 1 to 6 flashes be- fore resuming solid illumination. This indicates why the engine stopped running from the last previous remote starting attempt.
-
Page 10: Programming Transmitters
Programming Transmitters Standard Programming: Using this method to program additional or replacement transmitters does not turn on or otherwise affect the Unauthorized Transmitter Alert (UTA) feature. Step 1 Have all transmitters which are to operate the system at hand. Then, turn the ignition “on”. -
Page 11: User Programmable Features
User Programmable Features This group of User Programmable Features are all accessed as a group in the first level of features’ programming. These features have a direct affect upon the sys- tem’s operations, so the programming and operation of each are described. Feature #1 Remote Start Run Time 10 Minutes (press “lock” button to program) - DEFAULT 5 Minutes (press “unlock”... -
Page 12: Installer Programmable Features
User Programmable Features (cont’d) Feature #6 Doors Unlock With Ignition Off (press “unlock” button to program) - DEFAULT (press “lock” button to program) Similar to the previous locking feature, except this feature controls the unlock opera- tion when the ignition is turned off. Feature #7 Doors Unlock With Trunk Release (press “unlock”... - Page 13 Installer Programmable Features (cont’d) “Tach Wire” monitors the “Violet/white wire” (see the installation manual for the Tach Learn Procedure). It will crank the engine until a tach signal is detected (3 seconds max). “Data Tach” mode operates just like the “Tach wire” setting except it takes its reading from the D2D data port instead of using the Violet/white wire.
- Page 14 Installer Programmable Features (cont’d) Feature #7 Starter Cranking Time 0.7 Second (press “lock” button to program) - DEFAULT 1.00 Second (press “unlock” button to program) 1.5 Seconds (press “trunk” button to program) 2.25 Seconds (press “start” button to program) This feature determines the crank time of the 1st start attempt when in “Tachless” & “Crank Only” modes. If the engine doesn’t start on the first attempt, it will retry up to 3 more times extending the crank time by 0.2 second with each attempt..
-
Page 15: Programmable Features Matrix
Programmable Features Matrix Feature #12 Data Port Protocol D2D (Trilogix) (press “lock” button to program) - DEFAULT ADS (iData) (press “unlock” button to program) This feature determines which data protocol is used on the data port. Choose this based on the interface module protocol being used. NOTE: Intellikit modules only support the D2D protocol. - Page 16 Back Cover Color cover is in a separate file.
