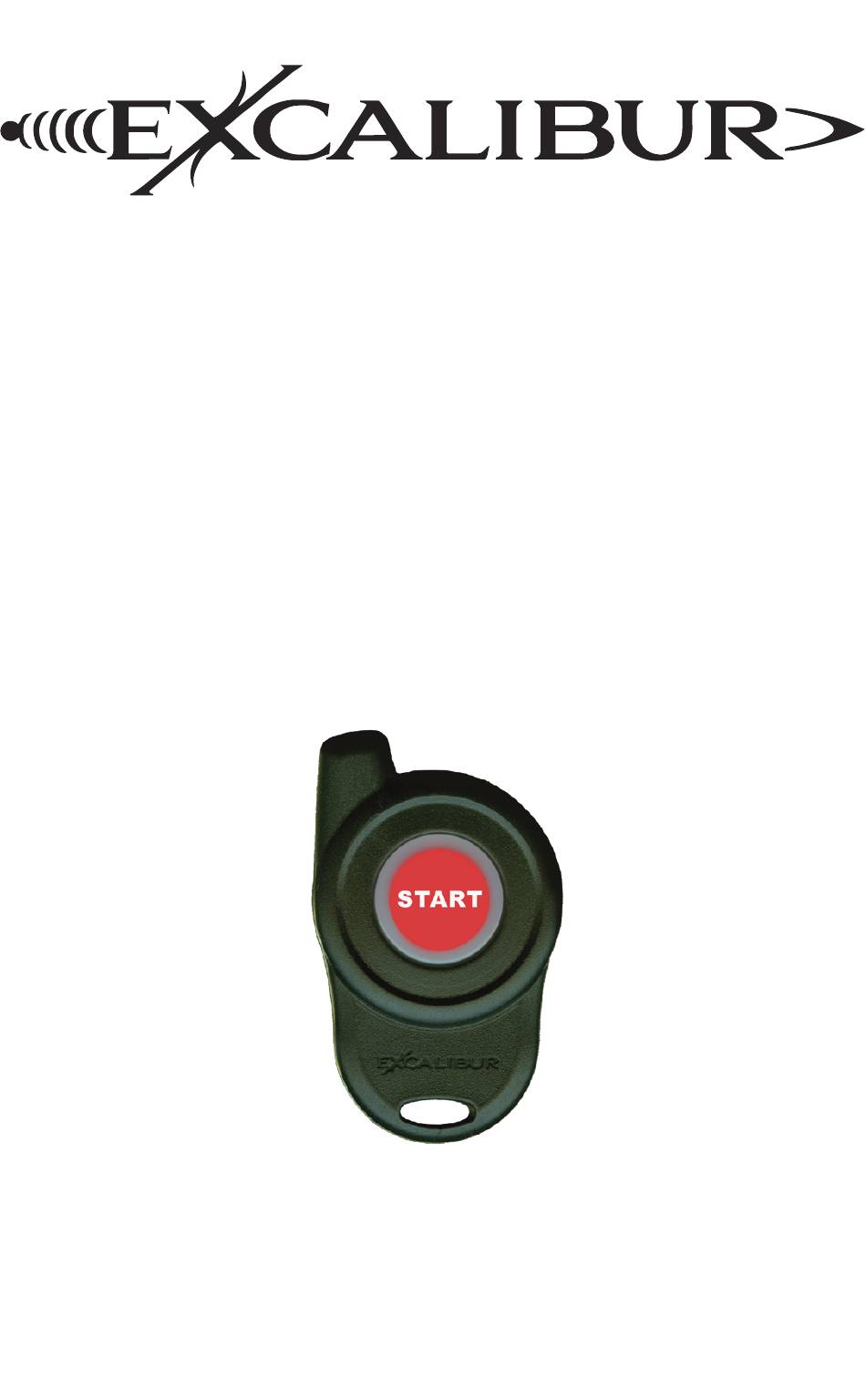

- Page 1 RS-240-DP Deluxe Keyless Entry & Remote Start June 29, 2011 Operation Guide Temporary cover. Color cover is in a separate file.
-
Page 2: Table Of Contents
Table Of Contents Introduction ....................2 The Transmitter ..................3 Transmitter Functions ................3 Other Remote Start Features ..............4 Low Battery Automatic Starting ............4 Turbo Timer Feature ................4 Pit-Stop Feature ................4 The Status Light (OPTIONAL) ...............5 Using The Valet Switch ................6 Transmitter Protection & Technology .............6 Programming Transmitters ..............6 Programming Features ................7 User Programmable Features ...............7... -
Page 3: The Transmitter
The Transmitter Transmitter part number: 113-03 Call your dealer or visit www.caralarm.com to order re- placement transmitters. “start”/”unlock” Transmitter battery button replacement: Remove the small screw from the lower back case, and separate the transmitter halves. Replace the 2 CR2016 batteries and reassemble the transmitter case. -
Page 4: Other Remote Start Features
Transmitter Functions (cont’d) UNLOCK: Press and hold the button for 3 seconds. • ThE DOORS wILL UNLOCk, ThE PARkINg LIghTS wILL FLASh TwICE ThEN ILLUMI- NATE FOR 30 SECONDS. Other Remote Start Features LOw BATTERy AUTOMATIC STARTING This feature will automatically start the engine should the vehicle battery drop be- low 11 volts. -
Page 5: The Status Light (Optional)
The Status Light (OPTIONAL) The Status Light helps to visually confirms the status of the system and provides a high level of visual deterrence. The Status Light is located in the window mount receiver unit. Normal System Status 1) Off = The remote starter system is off, in standby mode. 2) On Constant = The system is in the Valet Mode, with the remote starter system disabled. -
Page 6: Using The Valet Switch
Using The Valet Switch Valet Mode Valet mode disables the remote start feature. It should be used, for example, when you have your vehicle serviced. To engage Valet Mode: • With the system “unlocked”, press and hold the Valet Switch for 3 seconds; the Status Light(optional) will turn on to indicate Valet Mode. Attempts to remote start will result in no response. -
Page 7: Programming Features
Programming Features Step 1 Turn the ignition key “ON”, then “OFF” Step 2 within 5 seconds of step 1, press the valet switch 5 times to access user features (10 times to access installer features). ~ The parking lights and the status light (optional) will turn on. Step 3 within 10 seconds of step 2, press the valet switch the number of times cor- responding with the desired feature’s number. -
Page 8: Installer Programmable Features
Installer Programmable Features This group of Installer Programmable Features are all accessed as a group in the second level of features’ programming. These features have a direct affect upon the system’s operations related to the installation and vehicle type AND SHOULD ONLy BE CHANGED By THE INSTALLER!!! Feature #1 Remote Start Activation 1 button presses... - Page 9 Installer Programmable Features (cont’d) Feature #4 Gasoline Or Diesel Engine Gasoline (press the brake pedal 1 time to program) - DEFAULT Diesel 15 Sec. Delay (press the brake pedal 2 times to program) Diesel 20 Sec. Delay (press the brake pedal 3 times to program) Diesel 30 Sec.
- Page 10 Installer Programmable Features (cont’d) Feature #8 Unlock Output Functions 0.8 Second Output (press the brake pedal 1 time to program) - DEFAULT 3 Second Output (press the brake pedal 2 times to program) Double 0.8 Sec Unlock (press the brake pedal 3 times to program) This single feature gives the installer several needed options, to match the system’s doorlocking outputs to suit different vehicle requirements.
-
Page 11: Programmable Features Matrix
Programmable Features Matrix User Feature Programming: Ignition on, off, press valet 5 times # Feature Brake Pedal x 1 Brake Pedal x 2 Brake Pedal x 3 Brake Pedal x 4 1 Engine Run Time 2 RS Light Confirmation Steady Flashing Installer Feature Programming: Ignition on, off, press valet 10 times 1 Remote Start Activation... - Page 12 Back Cover Color cover is in a separate file.
