When working with the side panels in the following steps, you
may wish to place a soft cloth or piece of cardboard on your work
surface to protect the paint.
Locate the two side panels, which are mirror images of each other,
and arrange them as shown in Figure 6-5. The outside surface of each
panel is completely painted. The hardware to be attached in the next
step goes on the inside surface, which has a bare aluminum area at the
bottom edge.

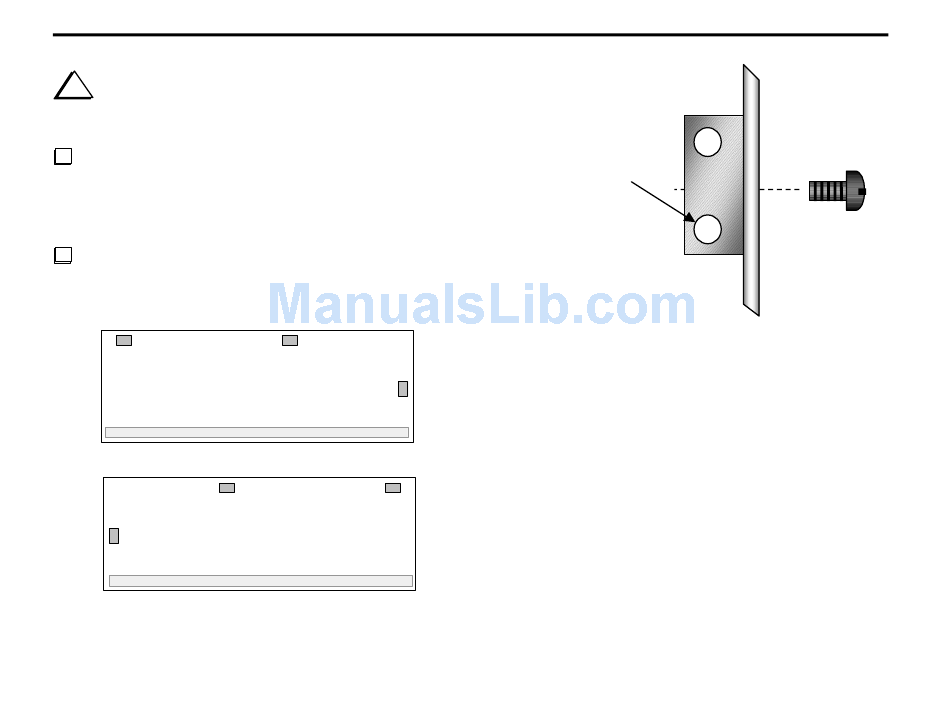

Install three 2-D fasteners on each side panel at the locations
indicated in . Use one chassis screw to hold each fastener to the side
panel (see Figure 6-7). The two unused holes on each fastener must be
offset away from the side panel.
Left Side Panel
(inside surface)
Right Side Panel
(inside surface)
Figure 6-5
Holes offset
away from
panel
Figure 6-6
