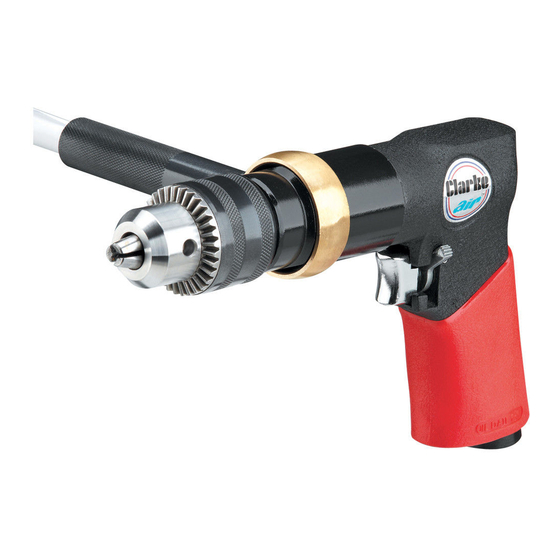

1/2” reversible air drill

Advertisement

Quick Links

1
" REVERSIBLE AIR DRILL
/2
MODEL NO: CAT123
PART NO: 3110879
OPERATION & MAINTENANCE
INSTRUCTIONS
GC1110

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CAT123 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clarke CAT123

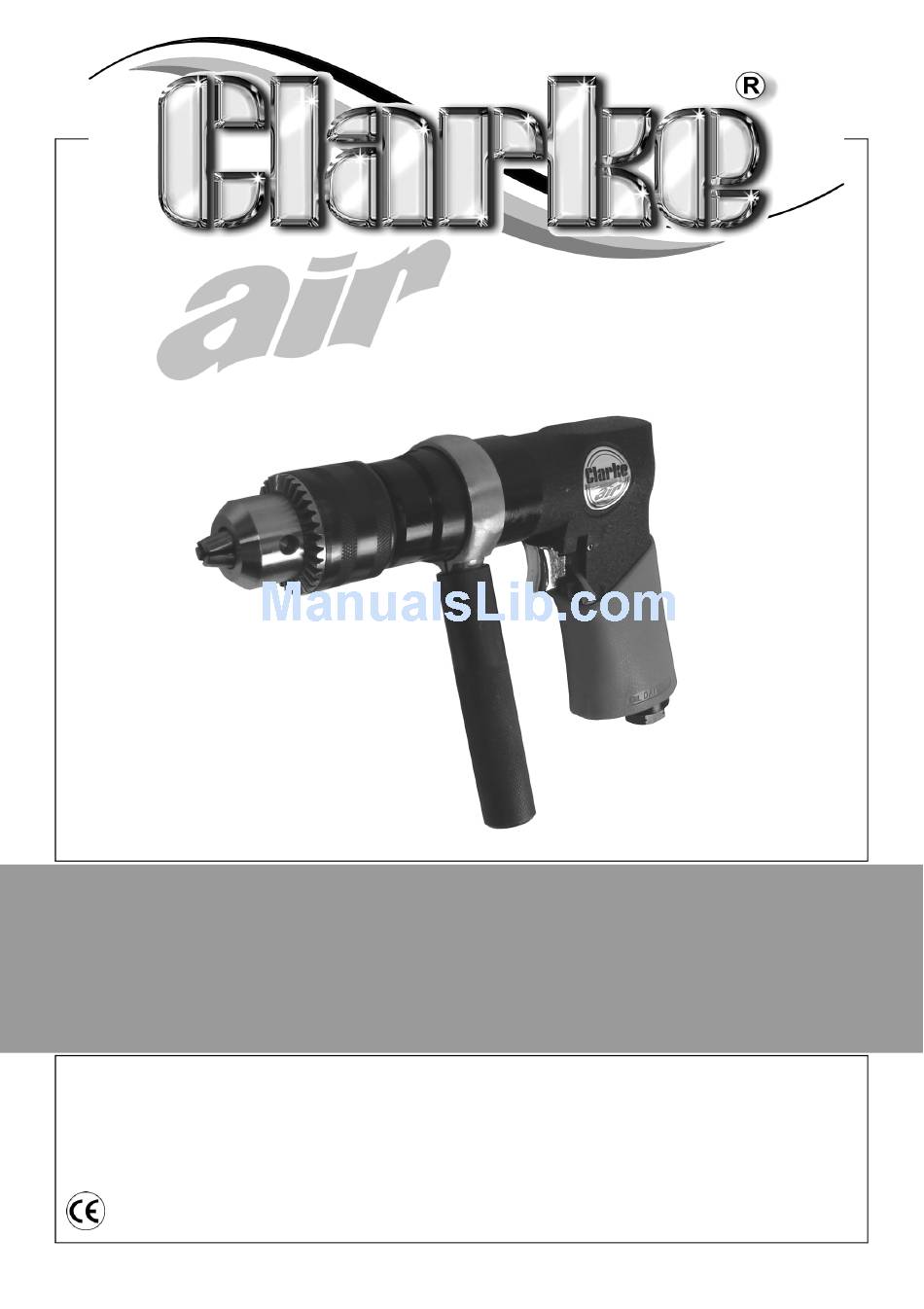

  • Page 1 ” REVERSIBLE AIR DRILL MODEL NO: CAT123 PART NO: 3110879 OPERATION & MAINTENANCE INSTRUCTIONS GC1110...
  • Page 2: Environmental Protection

    INTRODUCTION Thank you for purchasing this CLARKE product. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
  • Page 3: General Safety Rules

    GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way.
  • Page 4 • The drill will be left unattended. • Moving to another work area. • Passing the drill to another person. 12. Never use the drill if it is defective or operating abnormally. 13. The drill should be serviced at regular intervals by qualified service personnel.
  • Page 5 Trigger Air hose connector Forward/Reverse Switch Unpack and lay out the components, checking against the following list. Any damage or deficiency should be reported to your CLARKE dealer immediately. • 1/2” Reversible Air Drill • Male Snap Connector • Bottle of Airline Oil •...
  • Page 6 A wide range of accessories are available, including Filter/Regulators, Airline Lubricators, High Pressure Hoses (5 to 50 Metres), adaptors and connectors etc. Contact your CLARKE dealer for further information, or CLARKE International Sales Department on 01992 565 333. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
  • Page 7: Compressed Air Lines

    COMPRESSED AIR LINES AIR SUPPLY REQUIREMENTS WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source. •...
  • Page 8: Before Use

    NOTE: Ensure the compressor is turned off. 1. Remove the travel plug from the airline socket. 2. Pour 2-3 drops of CLARKE airline oil into the air inlet. This should be done regardless of whether or not a lubricated air supply is to be used.
  • Page 9: Fitting The Handle

    FITTING THE HANDLE The CAT123 is supplied with a removable side handle. To install it proceed as follows. 1. Slide the clamping ring over the body of the drill. 2. Screw the handle onto the threaded part of the clamping ring until the handle assembly is tight.
  • Page 10: Operation

    2. If the tool is not to be used for longer than 24 hours, run a few drops of CLARKE airline oil into the air inlet and run the tool for a few seconds to ensure that the oil has been well distributed throughout the tool.
  • Page 11: Troubleshooting

    2. Motor parts worn. 2. Return to Clarke dealer for repair. 3. Worn or sticking 3. Drip air tool lubricating mechanism due to oil into air inlet. Allow oil lack of lubricant.
  • Page 12: Maintenance

    • Drain any water from the air tank, airline, and compressor. • Pour a few drops of CLARKE air line oil, into the air inlet. This should be carried out regardless of whether or not an air line lubricator is used. If an airline lubricator is not used, this procedure should be repeated after every two to three hours of use.
  • Page 13: Specifications

    SPECIFICATIONS Feature Specification Model Number CAT123 Min. Hose Size (ID) 10 mm Average Air Consumption 16 cfm Operating Air Pressure 90 psi (6.2 bar) Chuck Size 1.5 - 13 mm Maximum Speed 700 rpm Sound Pressure Level (L 81.9 dB(A) Sound Power Level (L 92.9 dB(A)
  • Page 14: Parts List And Diagram

    PARTS LIST & DIAGRAM Description Part No No Description Part No Housing RONCAT12301 Cylinder RONCAT12318 Roll Pin RONCAT12302 Rotor Blade RONCAT12319 Exhaust Deflector RONCAT12303 Steel Wire RONCAT12320 O-Ring RONCAT12304 Rotor RONCAT12321 Air Inlet RONCAT12305 Front Plate RONCAT12322 Valve Stem RONCAT12306 Gear Wheel RONCAT12323 O-Ring...
  • Page 15: Declaration Of Conformity

    DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
