Summary of Contents for Clarke CAT87

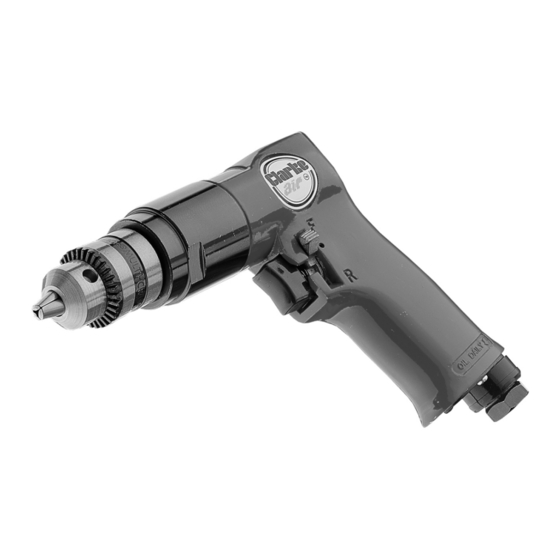

- Page 1 REVERSIBLE AIR DRILL MODEL NO: CAT87 PART NO: 3110835 OPERATING & MAINTENANCE INSTRUCTIONS GC0613...
- Page 2 INTRODUCTION Thank you for purchasing this CLARKE Reversible Air Drill Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service.
-
Page 3: General Safety Rules
GENERAL SAFETY RULES CAUTION: FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way. - Page 4 • The drill will be left unattended. • Moving to another work area. • Passing the drill to another person. 12. Never use the impact wrench if it is defective or operating abnormally. 13. The drill should be serviced at regular intervals by qualified service personnel.
- Page 5 OVERVIEW NO DESCRIPTION NO DESCRIPTION Chuck Forward/Reverse Switch Trigger 1/4” BSP (Female Air Inlet) Handle Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
-
Page 6: The Compressed Air Supply
THE COMPRESSED AIR SUPPLY AIR SUPPLY REQUIREMENTS WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source. •... -
Page 7: Before Use
Remove the Oil Fill Screw oil fill screw from the side of the mini oiler and fill with Air-line Oil available from your CLARKE dealer. Replace the screw before using the tool. Mini Oiler 2. If a mini-oiler is not being used, run a few drops of oil through the tool before use. -
Page 8: Inserting/Removing The Drill Bit
INSERTING/REMOVING THE DRILL BIT 1. Open the chuck jaws by inserting the chuck key in one of the holes in the chuck and turning it as Drill bit shown. 2. Make sure that the head of the chuck key is located on the barrel of the chuck. -
Page 9: Operation
OPERATION OPERATING THE AIR DRILL WARNING: MAKE SURE THAT THE CHUCK KEY HAS BEEN REMOVED BEFORE USING THE DRILL. 1. Squeeze the trigger switch to start the drill. 2. Wait until the drill is running at its maximum speed before applying it carefully to the workpiece. -
Page 10: Maintenance
• Before use, drain water from the air tank, air line and compressor. • Pour a few drops of CLARKE airline oil, into the air inlet. This should be carried out regardless of whether or not an in-line mini oiler is used. If an inline mini oiler is not used, this procedure should be repeated after every two to three hours of use. - Page 11 If the tool is to be stored, or is idle for longer than 24 hours, run a few drops of Clarke air line oil into the air inlet, and run the tool for 5 seconds in order to lubricate the internal parts.
-
Page 12: Troubleshooting
2. Motor parts worn. 2. Return to Clarke dealer for repair. 3. Worn or sticking 3. Drip air tool lubricating mechanism due to oil into air inlet. Allow oil lack of lubricant. -
Page 13: Parts List And Diagram
PARTS LIST & DIAGRAM Description No Description Screw Cylinder Drill Chuck Motor Housing Gear Housing Trigger Valve Spring Ball Bearing Throttle Valve Planet Carrier O-Ring Planet Gear O-Ring Internal Gear Reverse Valve Ball Bearing O-Ring Bearing Housing Reverse Valve Bush End Plate Rotor Body Exhaust Deflector... -
Page 14: Specification
1 kg Please note that the details and specifications contained herein are correct at the time of going to print. However CLARKE International reserve the right to change specifications at any time without prior notice. Always consult the machine’s data plate. -
Page 15: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
