with the interposer card connector on the RAID adapter.

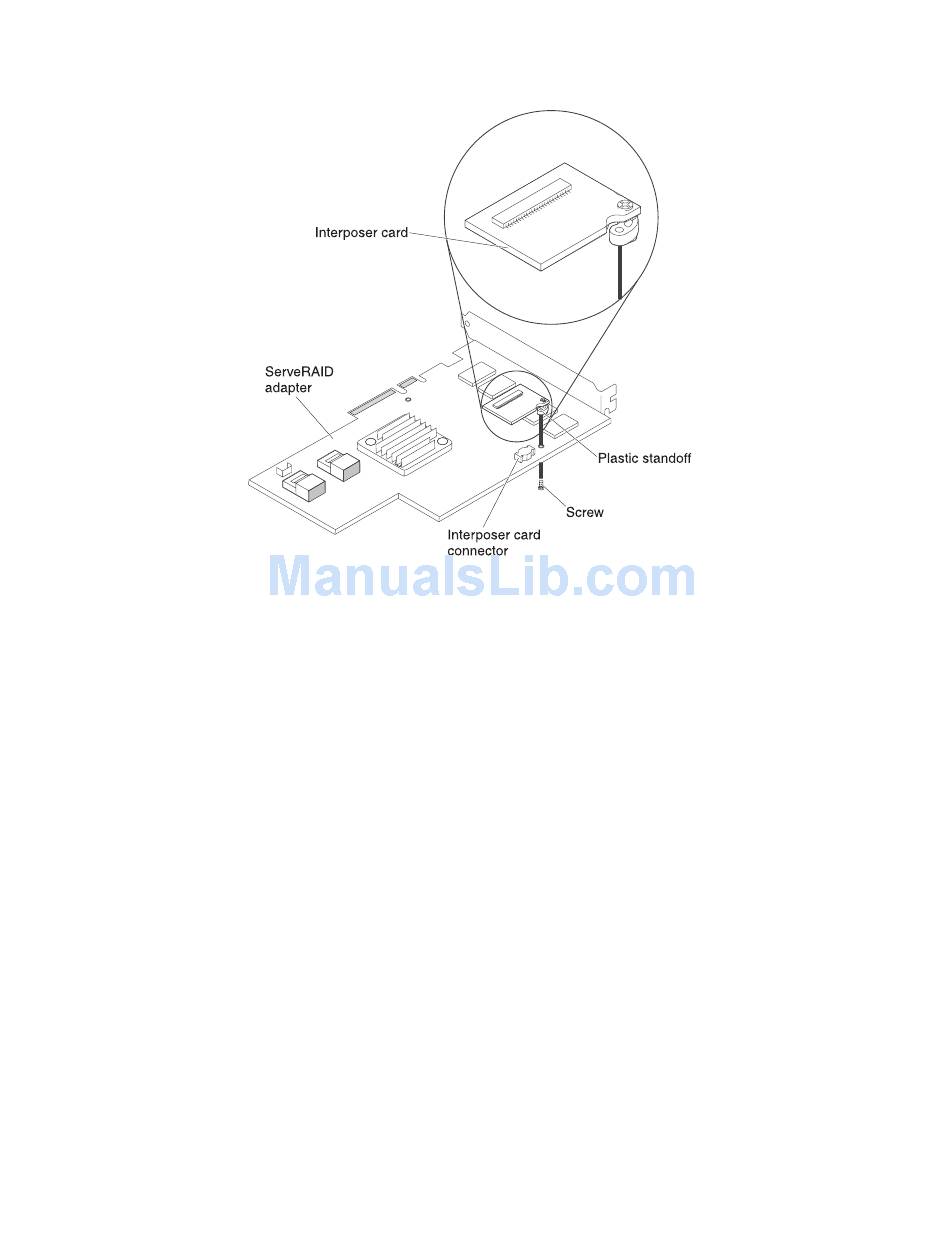

Figure 65. Interposer card installation
c. Press the interposer card down onto the interposer card connector on the
RAID adapter until it is firmly seated.
d. From underneath the RAID adapter, insert the screw that you took from
the bag and tighten the screw to secure the interposer card to the RAID
adapter.
8. Connect one end of the remote batter cable to the interposer card.
Attention: To avoid damage to the hardware, make sure that the black dot
on the remote battery cable connector faces away from the interposer card on
the adapter. Do not force the remote battery cable into the connector.
Chapter 2. Installing optional devices
91
