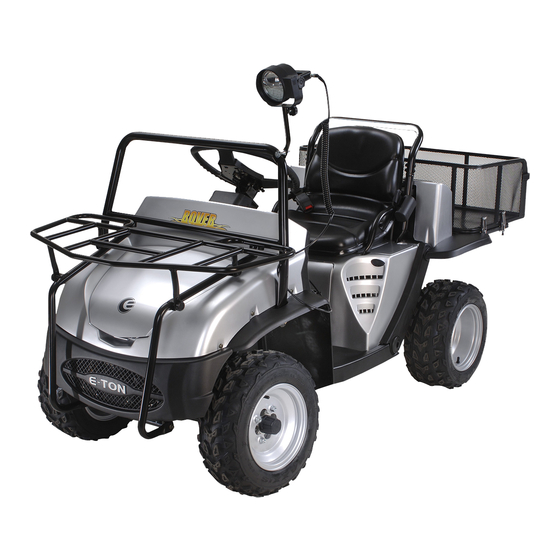

ROVER & ROVER GT
OWNER'S MANUAL
ROVER
E
-
TON E
-
Copyright ©2008-2009 ETON America, all rights reserved.
TON E
E
-
TON E
-
TON E
-
TON
-
TON
ROVER GT
-
TON E
-
TON E
-
TON E
-
TON E
-
TON E
-
TON E
-
TON E
-
TON
-
TON E
-
TON

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROVER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for E-TON ROVER

  • Page 1 ROVER & ROVER GT OWNER’S MANUAL ROVER ROVER GT TON E Copyright ©2008-2009 ETON America, all rights reserved. TON E TON E TON E TON E TON E TON E TON E TON E TON E TON E TON E...
  • Page 2 E-TON ROVER Rover (Safety Nets) Rover (Brush Guards) Rover GT Copyright ©2008-2009 ETON America, all rights reserved.
  • Page 3: Important Notices

    ADULT Supervision and Instruction are REQUIRED. This vehicle MUST NOT be operated by a youth without adult supervision and Instructions. Unattended operation without adult supervision could result in injuries. E-TON recommends that both the operator and the adult supervisor attend an vehicle safety instruction course.
  • Page 4: Table Of Contents

    TABLE OF CONTENTS TABLE OF CONTENTS SAFETY NOTES SERIAL NUMBER Vehicle Identification Number DESCRIPTION Controls, Switches & Feature Locations CONTROL FEATURE Key Switch Manual Choke Knob Throttle Pedal Brake Pedal Parking Brake Lever Fuel System Fuel Tank Fuel Valve Inline Fuel Filter The Seat Engine Oil Checking Engine Oil Level...
  • Page 5: Safety Notes

    SAFETY NOTES SAFETY NOTES 1. Both the adult supervisor and youth operator must fully understand everything in this manual before operating this vehicle. 2. This vehicle was designed for the operator only. NO PASSENGERS should be allowed on this vehicle. 3.
  • Page 6 15. LEARN TO RIDE this vehicle properly and safely. Have an experienced rider teach You the safe operation of your vehicle. E-TON recommends you take an vehicle riding course before you first ride your vehicle. Copyright ©2008-2009 ETON America, all rights reserved.
  • Page 7 SAFETY NOTES SAFETY NOTES 16. NEVER REFUEL this vehicle when hot. Ask your adult supervisor to refuel your vehicle. Gasoline is extremely flammable and will ignite if spilled on a hot engine or muffler. Never smoke or expose the fuel to an open flame or spark while refueling your vehicle.
  • Page 8: Additional Safety Tips

    SAFETY NOTES SAFETY NOTES Additional safety tips: Participate in an approved the vehicle safety education training program Always provide responsible adult supervision for the vehicle operators younger than 18 years of age Don't let youngsters ride full-sized vehicles Follow all safety recommendations of the vehicles manufacturer Operate the vehicles only during daylight Wear a helmet with face protection at all times Operate only four-wheeled vehicles...
  • Page 9: Serial Number

    Vehicle Identification Numbers Vehicle Identification Number (VIN) Engine serial number is located at the right of the frame is located on the left-hand side of the and approaches the front wheel. engine on the crankcase housing. YOUR VIN Eng. No. Controls, Switches &...
  • Page 10 Controls, Switches & Feature Locations Locations of controls and features 11. Speedometer & Odometer 7. Auxiliary 12v DC Electrical Outlet Fuel Indicator Meter (for ROVER 8. Brake Oil Reservoir 9. Manual Chocke Knob 12. Transmission Gear Selector & Reverse Indicator Lamp 10.
  • Page 11: Control Feature

    Only For ROVER open or off). This vehicle is equipped with a long key and a short key.
  • Page 12: Throttle Pedal

    CONTROL FEATURE CONTROL FEATURE Brake Pedal Throttle Pedal This vehicle is equipped with dual front hydraulic discl brakes and a rear hydraulic disc brake. The four wheel simultaneously brakes are operated by pushing the foot brake pedal. The throttle pedal is located on the under of the dashboard of the right.
  • Page 13: Fuel System

    HOT. Wait 30 minutes after turning off the unit before refueling. Spilling fuel on a HOT engine could cause a fire. Wipe up any fuel spills before re-starting. Fuel Valve ROVER ROVER ROVER ROVER The cap contains a vent to prevent a vacuum from forming in the tank as fuel is used.
  • Page 14: Inline Fuel Filter

    The filter should be replaced every 600 hours of operation and at the start of each Only For ROVER (CEILING) season. To move the head rest, you need to take To replace the filter, first turn the fuel valve out the bolts.
  • Page 15: Engine Oil

    CONTROL FEATURE CONTROL FEATURE Transmission Gear Selector Engine Oil Checking Engine Oil Level Engine Oil Dip Stick And fill tube The vehicle is equiped with a transmission gear selector switch mounted on the dash- board. The switch has three positions ("R", "N","F").
  • Page 16: Dashboard Indicators

    (3)Fuel indicator to"F"when the tank is full, Operating your vehicle with damaged tires and to"E"when empty.(And the ROVER or wheels is dangerous. Of the oil gauge flashes when 3-4 stages Damaged tires or wheels can result in a left.)
  • Page 17: Specifications

    ROVER Engine Four cycle air cooled (EPA Compliant) SOHC Type Displacement 88.4cc Bore / Stroke φ47.0 * 51.0mm Compression Ratio / Pressure 10.2 : 1 / 120-140psi Torque / BHP 6.5N ms @ 6500rpm / 4.8BHP EPA Approved Meet or exceeds EPA clean air requirements and CA Green Sticker...
  • Page 18 ROVER Sprockets Front 520x12t Rear 520x32t Chain #520 Battery Jell Acid (Maintenance Free) 12V-4AH/AH - GTX5L Fluids Type Unleaded Gasoline 92 octane Fuel Volume 11liters / 2.9gal Type SAE 15W-40 Engine Oil Volume 0.9liters / 0.23gal Type SAE 80W-90 Transmission Volume 300cc / 10.2oz...
  • Page 19 ROVER GT Engine Four cycle air cooled (EPA Compliant) SOHC Type Displacement 88.4cc Bore / Stroke φ47.0 * 51.0mm Compression Ratio / Pressure 10.2 : 1 / 120-140psi Torque / Power 6.1N ms @ 4000rpm / 6.4Ps/8000rpm EPA Approved Meet or exceeds EPA clean air requirements and CA Green Sticker...
  • Page 20 ROVER GT Safety Features Seat Belt Lap Belt (Standard) Remote Stop Switch Remote Engine Stop Switch (Optional) Carrying Capacity Maximum Rider Weight 100kg / 200 lbs Additional Features Rear Cargo Flat Bed (Standard) Digital dash gauge—Speedometer & Fuel Level (Standard) Covered Front Storage Compartment Dash mounted F/R Shift Knob &...
  • Page 21: To Clean The Filter

    Remove the air filter box cover. Air Filter To maintain the highest performance from Remove the filter element from the air box your engine and to reduce excessive wear as shown in picture. that could cause engine failure the engine requires a continuous flow of clean air.
  • Page 22: Braking Systems

    Braking Systems The vehicle is equipped with dual front hydraulic disc brakes and a rear hydraulic disc brake. The four wheel simultaneously brakes are operated by pushing the foot brake pedal. Proper maintenance of the brake system is Hose a necessary part of safe operation of your The front brakes unit.
  • Page 23: Purging Brake Line

    For the hydraulic brake system to operate safely, the brake system must be purged of air in the lines and reservoir. To bleed the air will require two people to perform the following procedure. 1. Place a drain pan under the brake caliper to catch the fluid.
  • Page 24: Drive Chain

    Drive Chain Throttle Pedal The drive chain will stretch with use and will require periodic adjustments. To check the chain tension, remove the chain guard and measure the slack. The throttle pedal is located on the under of the dashboard of the right and is operated by using the sole of the right foot.
  • Page 25: Electrical Battery

    Electrical Battery The unit's battery is located the left-hand Amperage side of the seat and supplies electrical power Color Series Items Rating to the unit. Battery The battery is a 12 volt jell acid type that Battery contains no liquid electrolyte. The battery Optional should be removed from the vehicle when 7.5A...
  • Page 26: Changing Engine Oil

    Changing Engine Oil Changing Transmission Oil 1. Place an oil catch pan under the unit directly below the transmission box. 2. Remove the transmission box drain plug located on the bottom of the transmission box on the underside of the unit. Engine Oil Drain Engine Oil Drain 1.
  • Page 27: Spark Plug

    Spark Plug Spark Arrestor Screen Replace spark plug at the beginning of each Required maintenance and cleanout: season with a replacement plug CR7HSA / 1. After every 100 hours of operation the NGK. muffler should be cleaned by removing Disconnect spark plug wire. the clean out bolt by using a 10mm Clean dirt from around spark plug base wrench.
  • Page 28: Spark Arrester Screen

    I = Inspect, Clean, Adjust, Lubricate or Replace as needed C= Clean L = Lubricate R = Replace NOTE: E-TON recommends that all maintenance and inspections be performed ONLY by a qualified and fully trained technician! Owners Maintenance Records Maintenance Preformed...
  • Page 29: Operation

    OPERATION OPERATION Vehicle Break-In procedures 11. Check all indictor lights and switches for proper operation. Your vehicle requires a break-In period just 12. Insure you are wearing proper clothing as with all other internal combustion engines. and protective gear. Helmet, Gloves This period allows the engine parts to seat pads etc.
  • Page 30: Riding Tips

    RIDING TIPS RIDING TIPS Parking your vehicle Driving your vehicle Your vehicle should only be driven in an 1. Always park your vehicle on a level area that is designated for this use. Insure s urface. that the area is free of obstacles and other 2.
  • Page 31: Wiring Diagram

    ROVER WIRING DIAGRAM Copyright ©2008-2009 ETON America, all rights reserved.
  • Page 32 ROVER WIRING DIAGRAM Copyright ©2008-2009 ETON America, all rights reserved.
  • Page 33 ETON AMERICA, LLC. LIMITED VEHICLE WARRANTY ETON America warrants all new ETON vehicles sold by authorized ETON Dealers to be free from defects in materials and workmanship, subject to the following exclusions and limitations. New vehicles sold by an authorized dealer to original retail consumers are covered by this policy for a period of six (6) months from the date of delivery.
  • Page 34 ETON AMERICA, LLC. LIMITED VEHICLE WARRANTY This warranty is valid at any authorized ETON Dealer in the United States only. In the event you experience any problem obtaining prompt service, contact ETON America, customer service department for assistance. Always consult first with your selling dealer and or service personnel for assistance with any service work or repairs.
  • Page 35: Atv Limited Warranty

    ETON AMERICA, LLC. ATV LIMITED WARRANTY FEDERAL EMMISSION CONTROL SYSTEMS ETON America LLC warrants each new Scooter/moped vehicle that includes as standard equipment a taillight and a stoplight; a) Is designed, built and equipped so as to conform at the time of initial retail purchase with all applicable regulation of the United States Environmental Protection Agency ("US EPA") and: b) Is free from defects in material and workmanship which would cause such Scooter/moped...
  • Page 36 ETON AMERICA, LLC. ATV LIMITED WARRANTY FEDERAL EMMISSION CONTROL SYSTEMS ETON America LLC specifications which adversely affect performance and/or durability, (vi) alterations or modifications not recommended or approved in writing by ETON America LLC, and/or (vii) use in competitive racing or related events. b) Replacement of parts and other services and adjustments required for routine maintenance.
  • Page 37 Copyright ©2008-2009 ETON America, all rights reserved. Page 33...
  • Page 38 TON E TON E TON E TON E TON E TON E TON E TON E TON E http:///www.e-ton.com.tw E-mail: sales@e-ton.com.tw TON E TON E TON E TON E TON E TON E TON E TON E TON E TON E...
