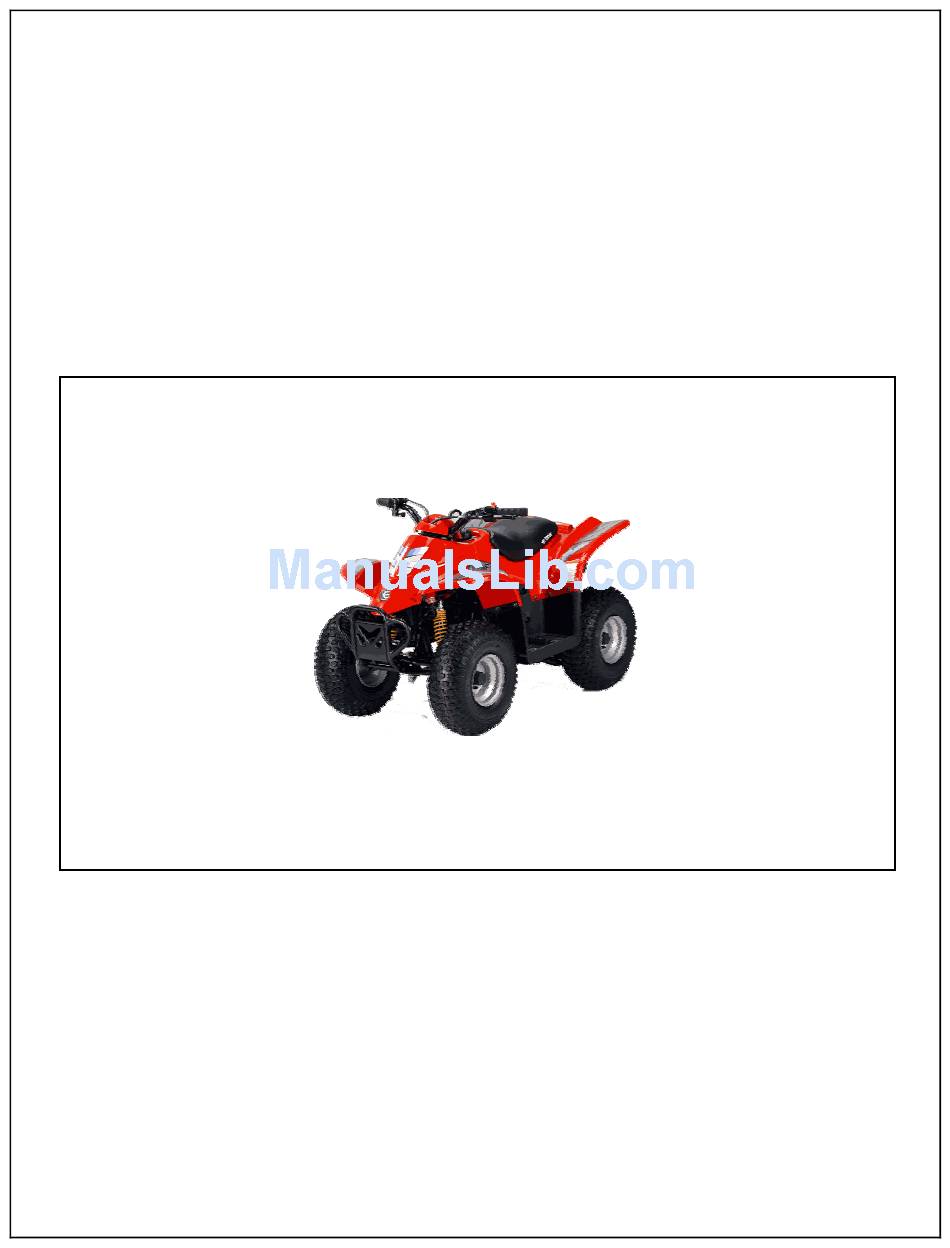

- Page 1 E-TON OWNER’S MANUAL Viper 40E (RXL-40E)
-
Page 2: Important Notices
ADULT Supervision and Instruction are REQUIRED. This vehicle MUST NOT be operated by a youth without Adult supervision and instructions. Unattended operation without adult supervision could result in injuries. E-TON recommends that both the operator and the adult supervisor attend an ATV safety instruction course. -
Page 3: Table Of Contents
Table of Contents Safety notes Vehicle identification number location Controls, switches and feature locations Control feature operations Engine stop switch Remote Stop/Start Switch Throttle lever Rear Brakes Parking brake Safety Tether Switch Fuel System Fuel tank Fuel valve Inline Fuel Filter Engine Oil Tires &... -
Page 4: Safety Notes
Safety Notes 1. Both the adult supervisor and youth operator must fully understand everything in this manual before operating this vehicle. 2. This vehicle was designed for the operator only. NO PASSENGERS should be allowed on this vehicle. 3. This vehicle is designed for operation on level, obstacle free off-road areas. 4. - Page 5 12. LEARN TO RIDE this vehicle properly and safely. Have an experienced rider teach you the safe operation of your vehicle. E-TON recommends you take an ATV riding course before you first ride your vehicle. Page 4...
- Page 6 13. NEVER REFUEL this vehicle when hot. Ask your adult supervisor to refuel your vehicle. Gasoline is extremely flammable and will ignite if spilled on a hot engine or muffler. Never smoke or expose the fuel to an open flame or spark while refueling your vehicle.
-
Page 7: Vehicle Identification Number Location
Vehicle Identification Numbers Vehicle Identification Number (VIN) Engine serial number is located at the front of the unit under is located on the left-hand side of the the front fender on a plate mounted engine on the crankcase housing. between the main frame rails. Your VIN RFZ______________ Eng. -
Page 8: Engine Stop Switch
Control feature operations The remote switch has two buttons, a Stop Engine Stop Switch button which will stop the engine when pressed. The effective range of the switch is 30 feet unobstructed. Once the unit has been stopped with the remote switch you must press the run button in order for the unit to be restarted. -
Page 9: Rear Brakes
counter clockwise. To decrease the throttle’s position. This should be engaged as a parking travel, thus decreasing the maximum speed, brake whenever the vehicle is not in operation. turn the throttle stop bolt clockwise. This feature should be engaged in order to start the engine. -
Page 10: Fuel Valve
fuel is used. The vent tube must be attached The unit is equipped with a three way fuel valve to the cap and inserted in the vent tube holder located on the left side of the unit just below the hole of the handle bar cover while operating seat. -
Page 11: Engine Oil
pressure and control which could result in To replace the filter, first turn the fuel valve to injuries. the “OFF” position. Then carefully compress the wire clamp rings until the clamp is free of Check your tire pressure before each riding the fuel line. -
Page 12: Air Filter
Wash the element in a non-flammable solvent Air Filter such as Air-Filter cleaner from your local auto parts dealer. Air Filter Maintenance 1. Dry the element completely before To maintain the highest performance from your continuing. engine and to reduce excessive wear that could 2. -
Page 13: Drive Chain
Inspect the chain links for damaged, worn or loose When the brake is fully applied there should be a rivets. Repair or replace as needed. minimum clearance of ½” of clearance between Chain Slack Adjustment Loosen the axle position lock bolt slightly and turn the chain adjuster nut to take up the excess slack in the chain. -
Page 14: Transmission Oil
2. Remove the transmission box drain plug located on the bottom of the transmission box on the underside of the unit. 3. Remove the transmission box fill hole plug locate on top of the transmission box near the oil tank bracket on the left hand side of the unit. -
Page 15: Atv Break-In Procedure
inline fuse on the positive lead of the battery to 7. Check steering system. Look for free and protect the wiring system from over loads. If your smooth operation. Check all fastening starter motor will not turn over and the battery is hardware. -
Page 16: Driving
Your unit should start within 10 seconds of Turning your ATV pushing the starter button. If the unit fails to Learning to turn your ATV requires you to learn start check the following. to shift your weight and control the throttle to 1. -
Page 17: Specifications
2005 Viper 40E RXL-40E Specifications Viper 40E (RXL-40E) Engine Type Two cycle air cooled pre mix fuel/oil Displacement 41.5cc φ40.0 * 33.0mm Bore / Stroke Compression 6.6 : 1 Power 2.2ps @ 7000rpm Transmission Type Single Speed Centrifugal Clutch Chassis Overall Length 1120mm / 44.0"... - Page 18 Fluids Type Unleaded Gasoline 89 octane Fuel Volume 3.5 liters / 0.9 gal Type High grade synthetic 2 cycle oil Engine Oil Volume Pre Mix 50 : 1 Type SAE 80/90 weight Transmission Volume 70cc / 2.4oz Spark Plug BPM6Y/NGK Nipendenso W22MP-U Champion...
-
Page 19: Maintenance Schedule
Maintenance Schedule First week Notes Every 30 Days Every Year Replace Fuel & Vent Fuel Lines Lines every 2 years Inspect as part Throttle Operation of pre-ride inspection Air Filter Fuel Filter Spark Plug Drive Chain I, L I, L Brake Shoes Inspect as part of pre-ride... -
Page 20: Wiring Diagram
Viper 40E Wiring Diagram Page 19... -
Page 21: Manufacture's Warranty
ETON AMERICA, LLC. LIMITED VEHICLE WARRANTY ETON America warrants all new ETON vehicles sold by authorized Eton Dealers to be free from defects in materials and workmanship, subject to the following exclusions and limitations. New vehicles sold by an authorized dealer to original retail consumers are covered by this policy for a period of six (6) months from the date of delivery. - Page 22 ETON AMERICA, LLC. LIMITED VEHICLE WARRANTY Scheduled maintenance service is the responsibility of the owner during and after the warranty period. In the event of a failure or required repair, the owner should take vehicle to an authorized dealer for repair without undue delay and within a maximum of thirty, (30), days of the occurrence of the problem.
-
Page 23: Owner's Notes
Owner’s Notes: Page 22... - Page 24 Page 23...
