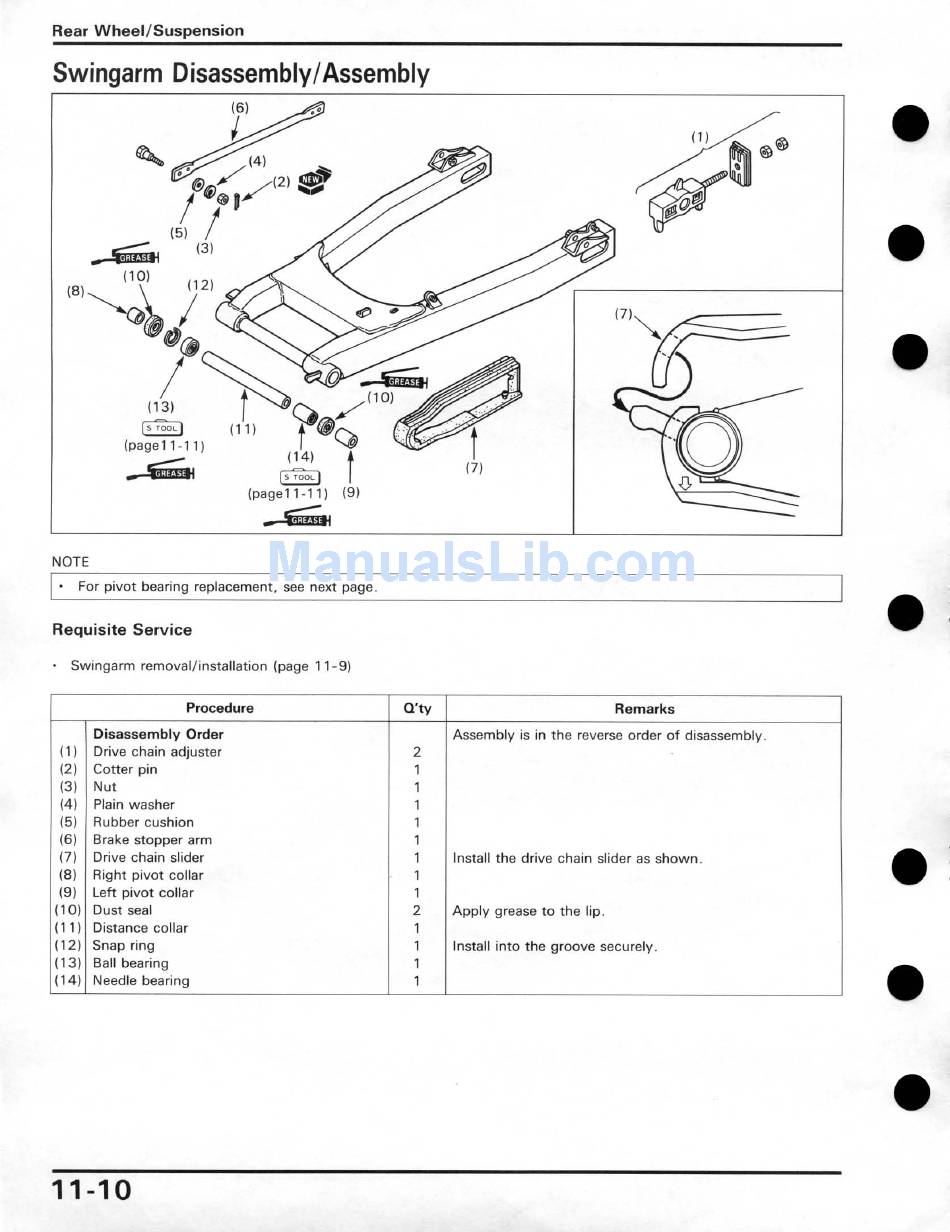

Swingarm Disassembly/Assembly - Honda Nighthawk CB 750 1991 Service Manual

Rear WheelISuspension
NOTE
For pivot bearing replacement, see next page.
Requisite Service
.
Swingarm removal/installation (page 11-9)
Procedure
I
Q'tv
I
Remarks
/
Assembly is in the reverse order of disassembly.
(1)
(2)
(3)
(4)
(5)
(6)
(7)
( 8 )
(9)
(1 0)
(1 1 )
(1 2)
(13)
(1 4)
Install the drive chain slider as shown
Disassembly Order
Drive chain adjuster
Cotter pin
Nut
Plain washer
Rubber cushion
Brake stopper arm
Drive chain slider
Right pivot collar
Left pivot collar
Dust seal
Distance collar
Snap ring
Ball bearing
Needle bearinq
Apply grease to the lip.
Install into the groove securely.
