Nortec GS 100 Installation, User & Maintenance Manual page 48

MAIN MENU
SYSTEM STATUS
SERVICE LEVEL
MENU
USER SETTINGS
ENTER
MENU
MENU
MENU
SERVICE LEVEL 1 of 2
SERVICE INTERVAL
SERVICE HISTORY
FAULT HISTORY
1
TANK DRAIN
TANK PRE-CLEAN
BURNERS
SHORT CYCLE DELAY
1. VERTICAL ARROW INDICATES ADDITIONAL
SELECTIONS AVAILABLE BY SCROLLING.
SERVICE INTERVAL
SERVICE HISTORY
FAULT HISTORY
TANK DRAIN
TANK PRE-CLEAN
BURNERS
SHORT CYCLE DELAY
SERVICE INTERVAL
SERVICE HISTORY
FAULT HISTORY
TANK DRAIN
TANK PRE-CLEAN
BURNERS
SHORT CYCLE DELAY
SERVICE INTERVAL
SERVICE HISTORY
FAULT HISTORY
TANK DRAIN
TANK PRE-CLEAN
BURNERS
SHORT CYCLE DELAY
SERVICE LEVEL
2
SERVICE INTERVAL
SERVICE INTERVAL
XXX HOURS
CLEAR REMAINDER?
SERVICE INTERVAL
CLEAR REMAINDER?
1. DISPLAYS THE LAST 10 SERVICE
1
SERVICE HISTORY X/Y
PERIODS
2. DISPLAYS THE NUMBER OF STEAM
2
STEAM HOURS XXXX
HOURS WHEN SERVICE WAS
PERFORMED
3
(DATE/TIME)
3. DISPLAYS THE DATE THE SERVICE
WAS PERFORMED
1. DISPLAYS THE LAST 54
1
FAULT HISTORY X/Y
FAULTS
2 2. GIVES A DESCRIPTION OF
(TYPE OF FAULT)
THE FAULT TYPE
3
(DATE/TIME)
3. DISPLAYS THE DATE THE
FAULT OCCURRED.
THIS WILL DRAIN
THIS WILL DRAIN
CONTENTS OF TANK
CONTENTS OF TANK
CONTINUE?
1. PRESSING ENTER STARTS THE
TANK DRAIN PROCEEDURE

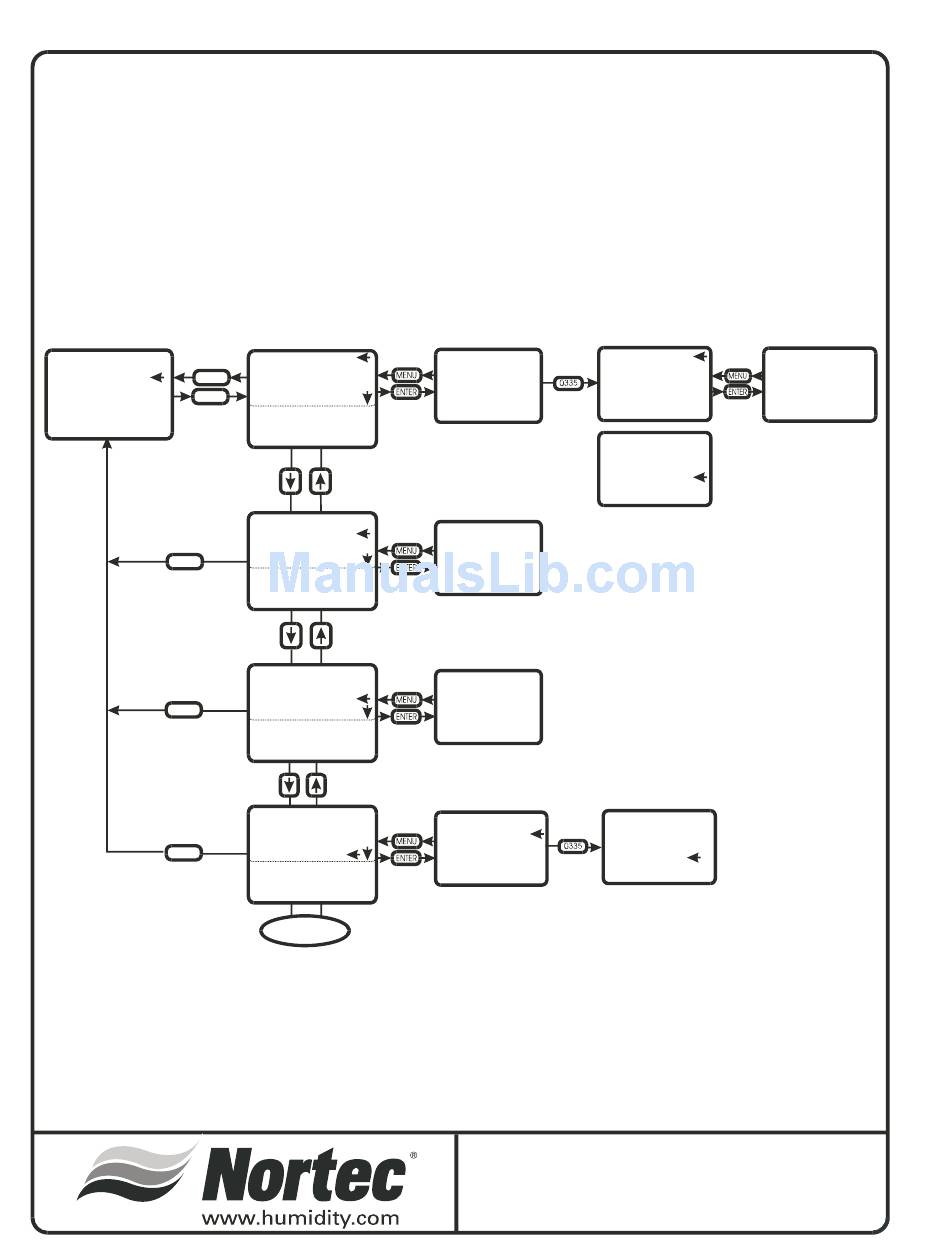

Keypad Display Menu Structure
Service Level 1 of 2
- 44 -
SERVICE (HR)
XXX HOURS
CHANGE VALUE XXX
2. USE UP DOWN ARROWS TO
XXX HOURS CHANGE HOURS
3
3. PRESSING ENTER CLEARS
THE REMINDER
1
2
