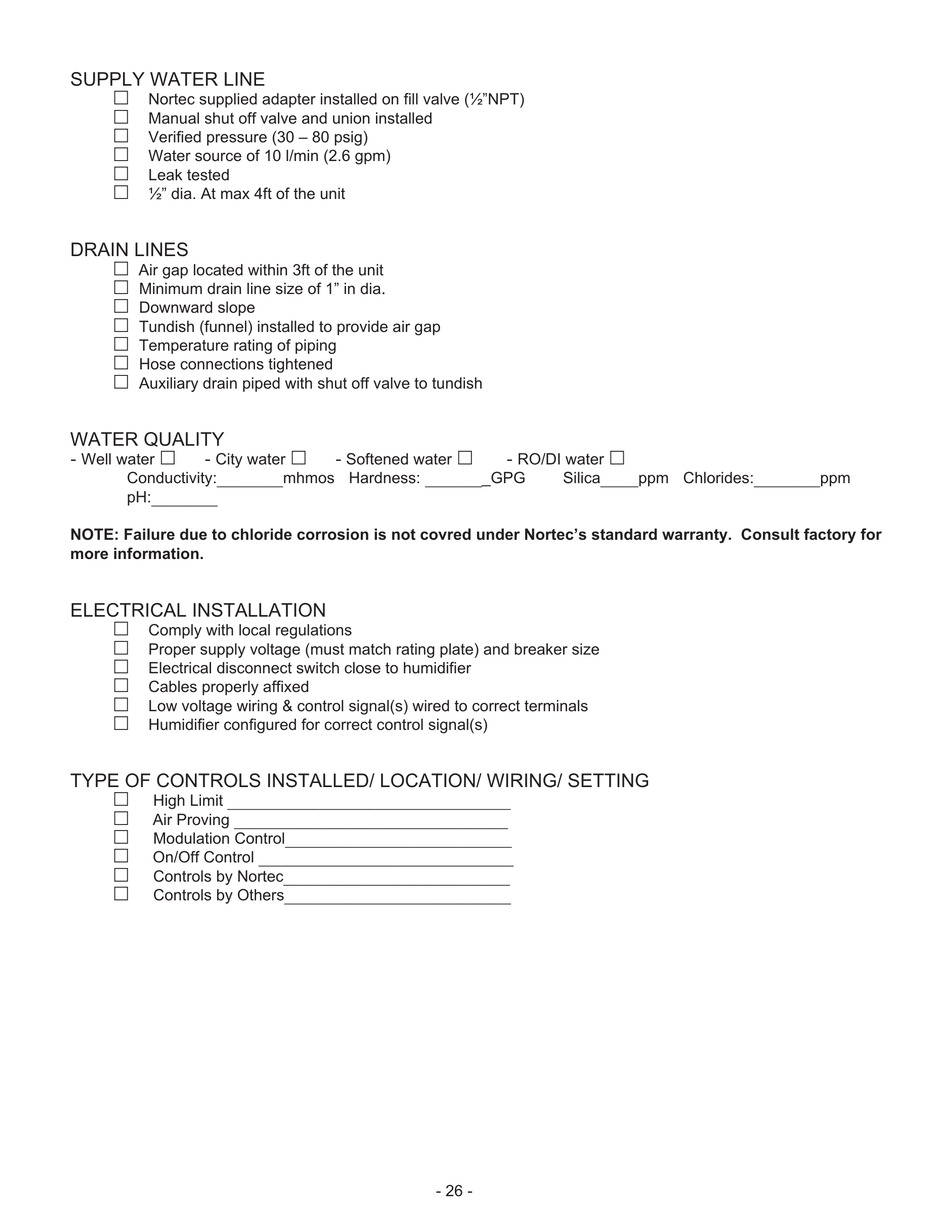

SUPPLY WATER LINE
£
Nortec supplied adapter installed on fill valve (½"NPT)
£
Manual shut off valve and union installed
£
Verified pressure (30 – 80 psig)
£
Water source of 10 l/min (2.6 gpm)
£
Leak tested
£
½" dia. At max 4ft of the unit
DRAIN LINES
£
Air gap located within 3ft of the unit
£
Minimum drain line size of 1" in dia
£
Downward slope
£
Tundish (funnel) installed to provide air gap
£
Temperature rating of piping
£
Hose connections tightened
£
Auxiliary drain piped with shut off valve to tundish
WATER QUALITY
£
- -
Well water City water
_______
Conductivity:
_______
pH:
NOTE: Failure due to chloride corrosion is not covred under Nortec's standard warranty. Consult factory for
more information.
ELECTRICAL INSTALLATION
£
Comply with local regulations
£
Proper supply voltage (must match rating plate) and breaker size
£
Electrical disconnect switch close to humidifier
£
Cables properly affixed
£
Low voltage wiring & control signal(s) wired to correct terminals
£
Humidifier configured for correct control signal(s)
TYPE OF CONTROLS INSTALLED/ LOCATION/ WIRING/ SETTING
£
______________________________
High Limit
£
_____________________________
Air Proving
£
Modulation Control
£
On/Off Control
£
Controls by Nortec
£
Controls by Others
.
£
-
Softened water
______
mhmos Hardness:
________________________
___________________________
________________________
________________________
£
-
RO/DI water
____
_GPG Silica
