Physical Layout

1
2

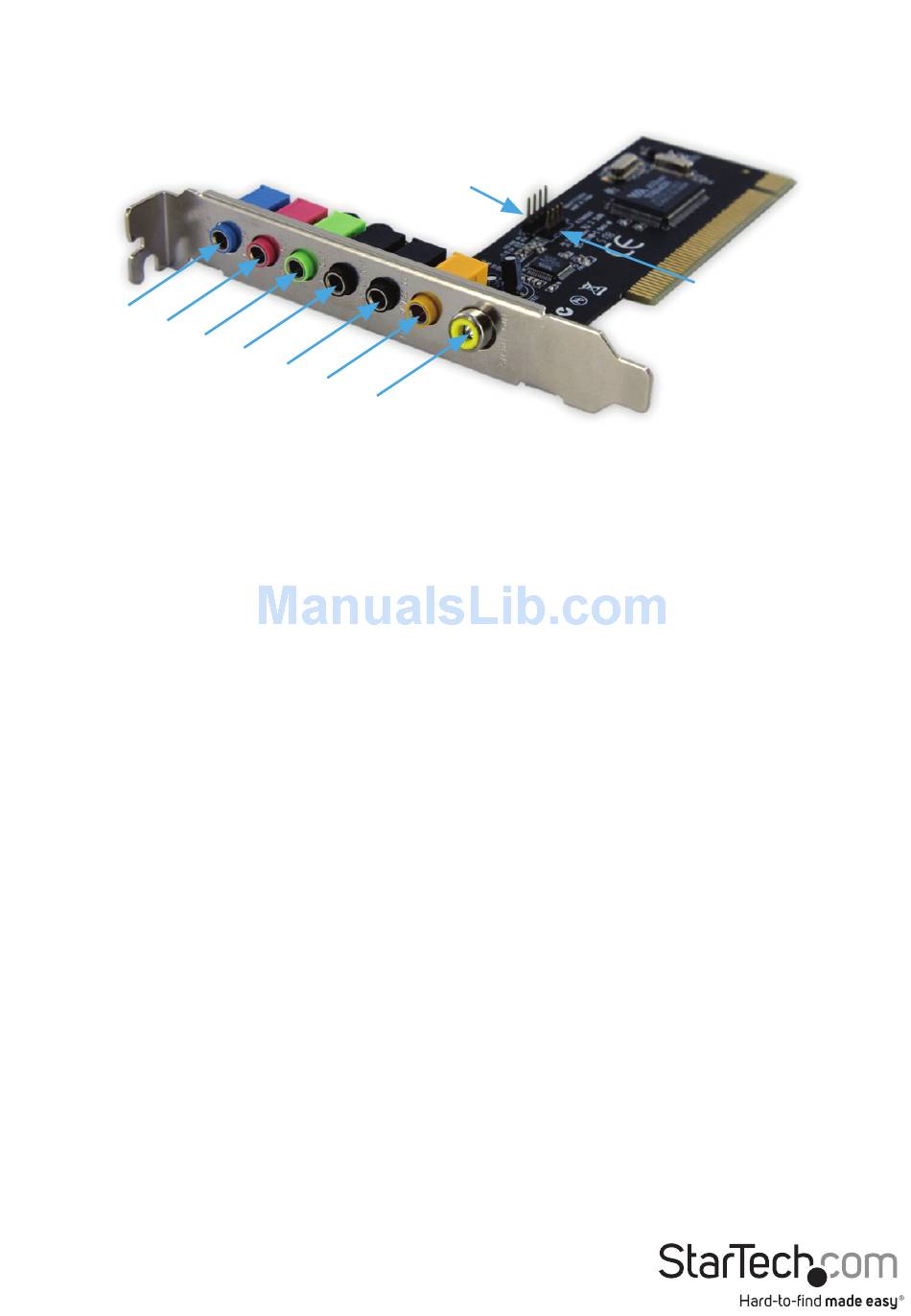

1. Line in: Connect to tape/CD/DVD Player, or other audio sources for output mixing
and/or recording.
2. MIC In: Connect to a microphone
3. Line Out: Connect to a headphone or a speaker. In 4-channel, 6-channel, and
8-channel configuration, the function of this port becomes Front Speaker Out.
4. Rear Speaker: Connect to Rear speakers while in 8 channel mode (via external amplifier.)
5. Surround Speaker: Connect to Surround (side) speakers while 4/6/8 channel modes (via
external amplifier).
6. Center/Bass Speaker: Connect to Center/Bass speakers while in 6/8 channel modes (via
external amplifier).
7. S/PDIF OUT: The digital Output jack is an S/PDIF Coaxial output, you can use an RCA
cable to connect this to a digital recorder, mixer or surround sound receiver. A 75 Ohm
digital coaxial cable is required for this type of connection.
J10: Analog CD/IN header (L-G-G-R)
J11: Analog CD/IN header (G-R-G-L)
